LW005A: Description1-OUTPUT 5W DC-DC REG PWR SUPPLY MODULE, 32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5; CategoryPower/power management The power supply circuit; File Size365KB，20 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

LW005A Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LW005A	-	-	View	Buy Now

LW005A Overview

1-OUTPUT 5W DC-DC REG PWR SUPPLY MODULE, 32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5

LW005A Parametric

Parameter Name	Attribute value
Objectid	1943689213
Parts packaging code	MODULE
package instruction	32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5
Contacts	5
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-T5
Maximum load regulation	0.2%
Number of functions	1
Output times	1
Number of terminals	5
Nominal output voltage	5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum total power output	5 W
Fine-tuning/adjustable output	NO

Preview

Download Datasheet

View All

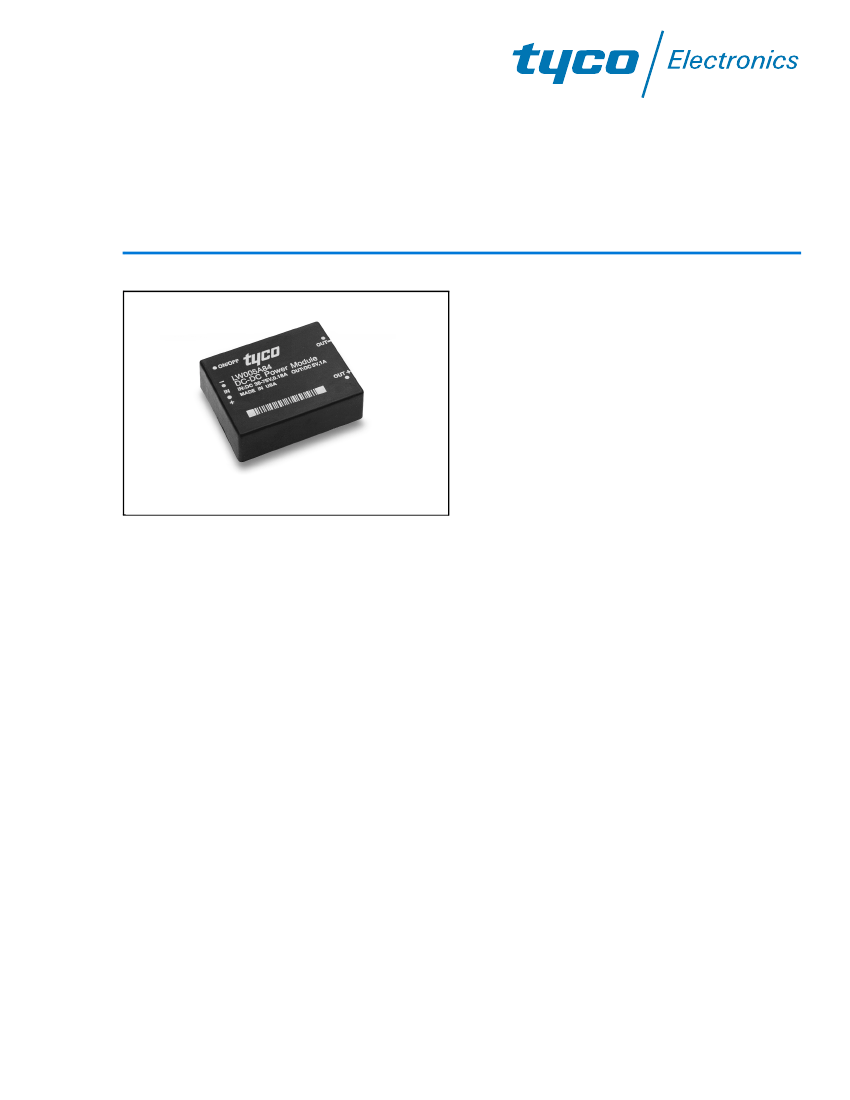

Data Sheet

December 1999

LC/LW005-Series Power Modules:

18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc Inputs, 5 W

Features

Low profile: 10.2 mm x 25.4 mm x 32 mm

(0.400 in. x 1 in. x 1.26 in.) with standoffs

(9.78 mm (0.385 in.) with standoffs recessed)

Wide input voltage range: 18 Vdc to 36 Vdc or

36 Vdc to 75 Vdc

Input-to-output isolation up to 1500 V

Operating case temperature range: –40 °C to

+105 °C

Overcurrent protection, unlimited duration

Output overvoltage protection

Undervoltage lockout

The LC/LW005-Series Power Modules use advanced, surface-

mount technology and deliver high-quality, compact, dc-dc

conversion at an economical price.

Applications

UL*

1950 Recognized,

CSA

†

C22.2 No. 950-95

Certified,

VDE

‡

0805 (EN60950, IEC950) Licensed

CE mark meets 73/23/EEC and 93/68/EEC

directives

‡

Within FCC Class A radiated limits

Computer equipment

Communications equipment

Distributed power architectures

Options

Positive remote on-off logic

Short pins: 2.8 mm ± 0.25 mm

(0.110 in. ± 0.010 in.)

Synchronization

Tight output voltage tolerance

is a registered trademark of Underwriters Laboratories, Inc.

†

CSA

is a registered trademark of Canadian Standards Associa-

tion.

‡

VDE

is a trademark of Verband Deutscher Elektrotechniker e.V.

§ This product is intended for integration into end-use equipment.

All the required procedures for CE marking of end-use equip-

ment should be followed. (The CE mark is placed on selected

products.)

Description

The LC/LW005-Series Power Modules are low-profile, dc-dc converters that operate over an input voltage

range of 18 Vdc to 36 Vdc or 36 Vdc to 75 Vdc and provide a precisely regulated output. The output is isolated

from the input, allowing versatile polarity configurations and grounding connections. The modules have a maxi-

mum power rating of 5 W and efficiencies greater than 75%. Built-in filtering for both input and output minimizes

the need for external filtering.

LW005A Related Products

	LW005A	LW005C	LW005B
Description	1-OUTPUT 5W DC-DC REG PWR SUPPLY MODULE, 32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5	1-OUTPUT 5W DC-DC REG PWR SUPPLY MODULE, 32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5	1-OUTPUT 5W DC-DC REG PWR SUPPLY MODULE, 32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5
Parts packaging code	MODULE	MODULE	MODULE
package instruction	32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5	,	32 X 25.40 MM, 10.20 MM HEIGHT, LOW PROFILE, MODULE-5
Contacts	5	5	5
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V	75 V	75 V
Minimum input voltage	36 V	36 V	36 V
Nominal input voltage	48 V	48 V	48 V
JESD-30 code	R-XDMA-T5	R-XDMA-T5	R-XDMA-T5
Maximum load regulation	0.2%	0.2%	0.2%
Number of functions	1	1	1
Output times	1	1	1
Number of terminals	5	5	5
Nominal output voltage	5 V	15 V	12 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL
Maximum total power output	5 W	5 W	5 W
Fine-tuning/adjustable output	NO	NO	NO
Objectid	1943689213	-	1943689224
