57LE-20500-7700-FA datasheet, PDF

Datasheet> All Categories > The connector> The connector> 57LE-20500-7700-FA

57LE-20500-7700-FA: DescriptionD Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size977KB，6 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric Compare View All

57LE-20500-7700-FA Overview

D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle

57LE-20500-7700-FA Parametric

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
body width	0.617 inch
subject depth	0.63 inch
body length	3.262 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1700VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	57LE
Plug contact pitch	0.085 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	16u inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Terminal length	0.187 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

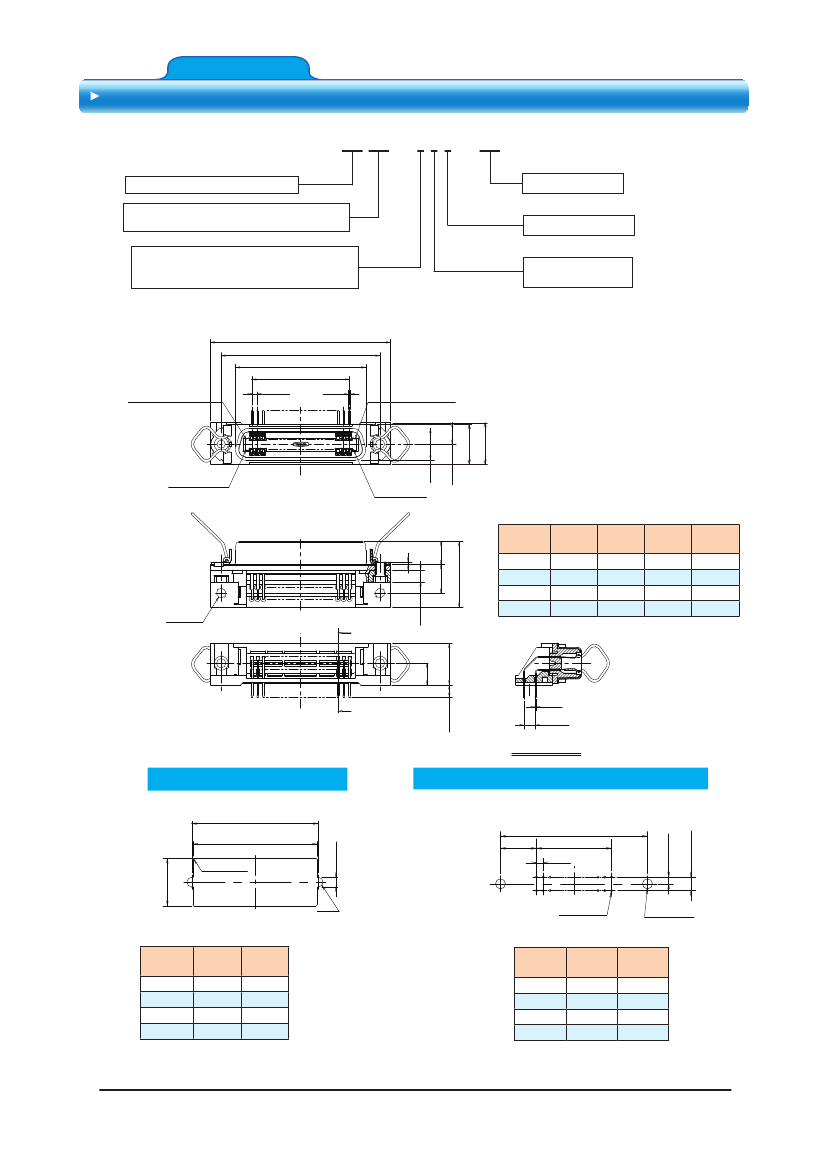

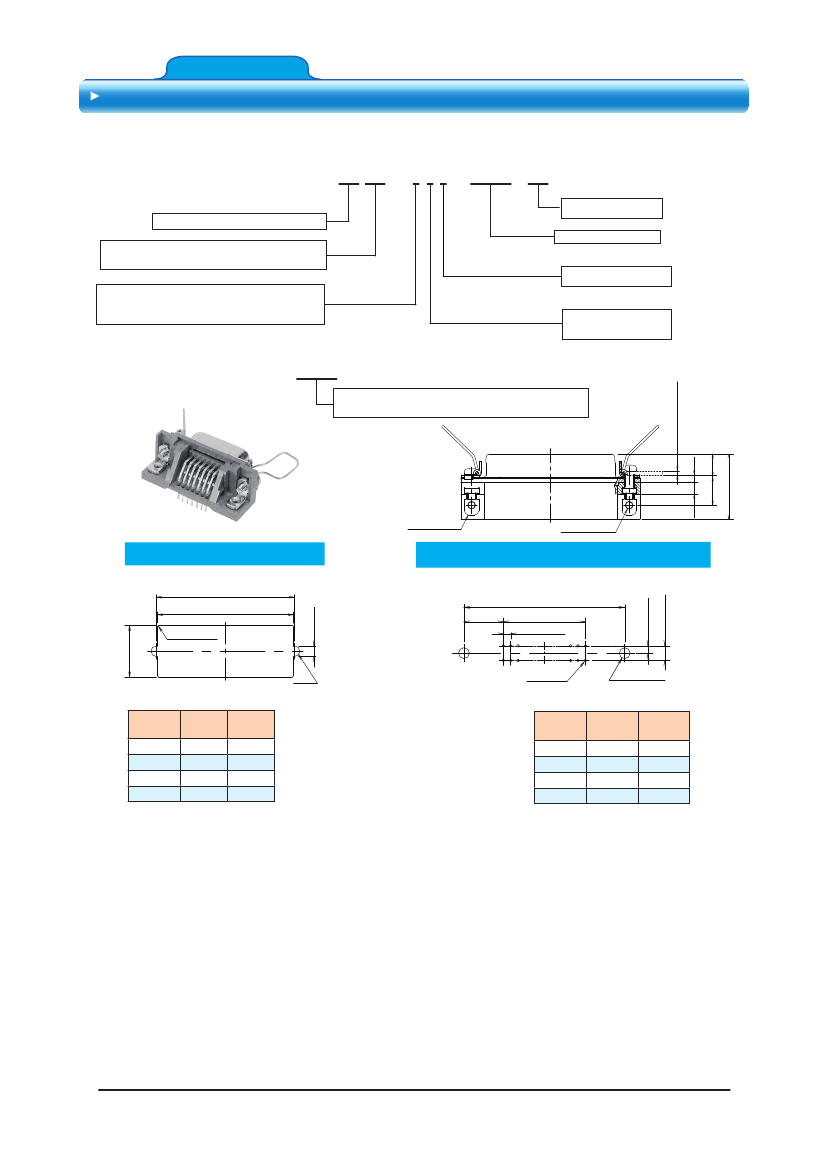

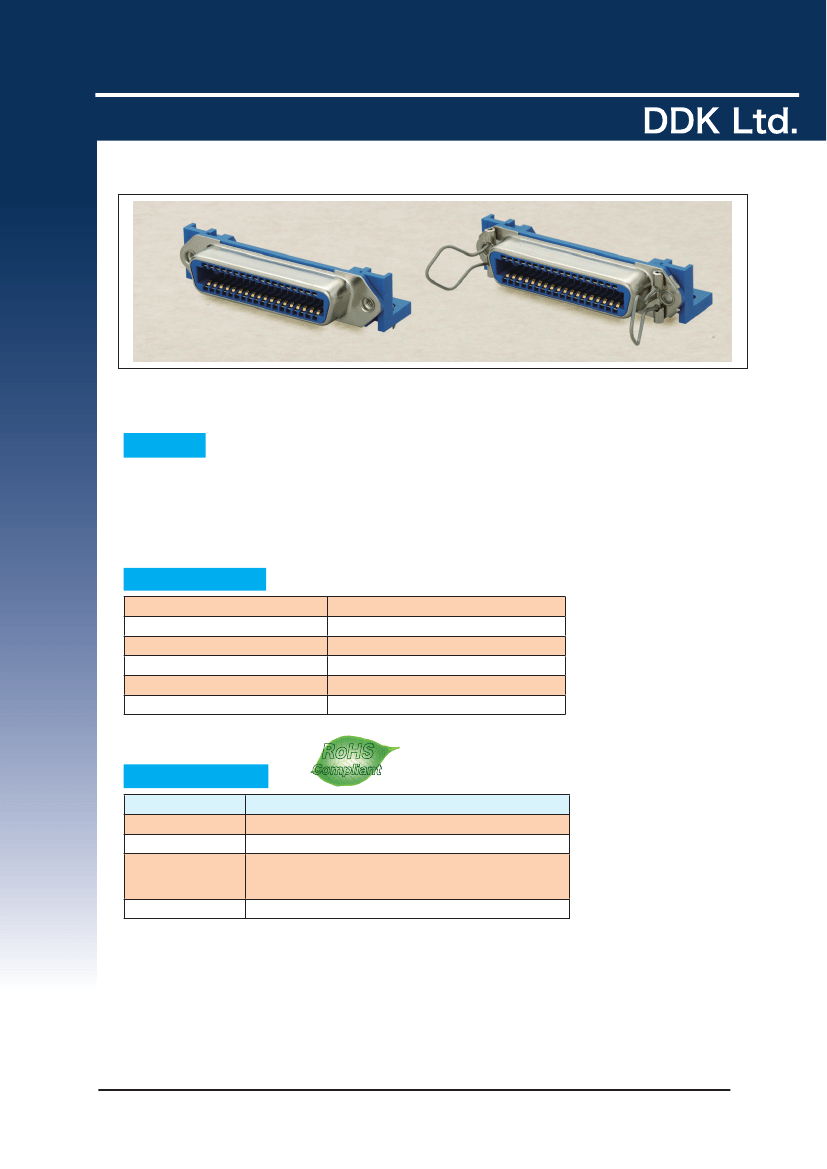

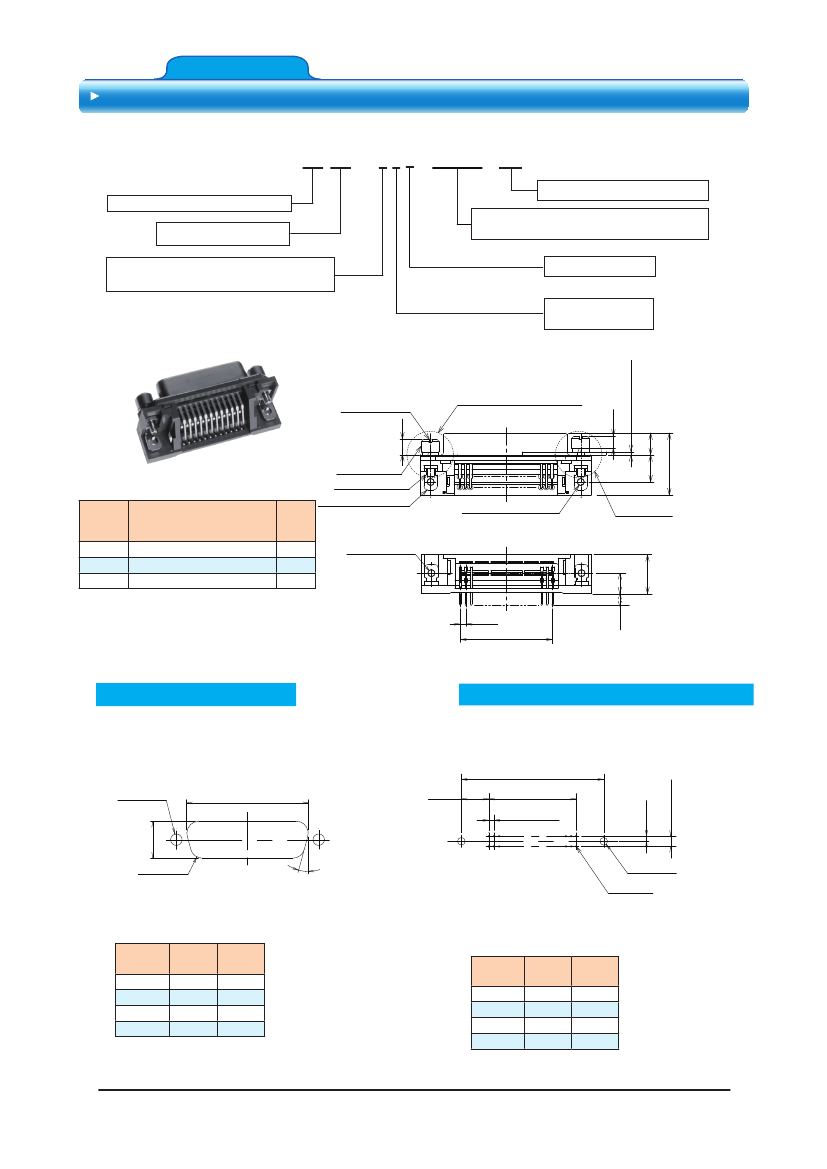

Right Angle Solder Termination Connector

57LE Series

20 Type

40 Type

OUTLINE

・ Metalized shell for EMI Shield

・ Intermatable with each 57, 57FE, 57JE series plug connectors.

・ UL applied (File No. E72124)

SPECIFICATIONS

Rated Voltage

Rated Current

Dielectric Withstanding Voltage

Insulation Resistance

Contact Resistance

Operating Temperature

500V AC（r.m.s.）

3A / Contact

1200V AC（r.m.s.）at 1 minute

1000M Ω (min.) at 500V DC

35m Ω (max.)

-55℃〜 105℃

MATERIAL/FINISH

ITEM

Insulator

Shell

Contact

Bail Lock

Compliant

MATERIAL / FINISH

RoHS

PBT Resin(UL94V-0) / Blue

Steel or Brass / Ni Plating

Copper Alooy / Contact Area: Au over Ni Plating

Tail Area: Sn-Ag Plating

Stainless Steel

◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.

　Your catalogue checking the latest speifications with our drawings would be highly appreciated.

120927

http://www.ddknet.co.jp

57LE-20500-7700-FA Related Products

	57LE-20500-7700-FA	57LE-40360-7700(D29)-FA	57LE-20240-7700D35G-CA	57LE-40240-7700-FA	57LE-40500-7700-FA	BZX55B5V6	57LE-40140-7700D29-FA	57LE-40140-7700-FA	57LE-20240-7700-FA
Description	D Type Connector, 50 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	Telecom and Datacom Connector, 36 Contact(s), Female, Right Angle, Solder Terminal, Receptacle, ROHS COMPLIANT	Telecom and Datacom Connector, 24 Contact(s), Female, Right Angle, Solder Terminal, Locking, Receptacle, ROHS COMPLIANT	D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 50 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	SILICON PLANAR ZENER DIODES	D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle	D Type Connector, 24 Contact(s), Female, 0.085 inch Pitch, Solder Terminal, Locking, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-	unknown	unknown	unknown
body width	0.617 inch	-	0.617 inch	0.617 inch	0.617 inch	-	-	0.617 inch	0.617 inch
subject depth	0.63 inch	-	0.63 inch	0.63 inch	0.63 inch	-	0.63 inch	0.63 inch	0.63 inch
body length	3.262 inch	-	-	2.157 inch	3.262 inch	-	-	1.732 inch	2.157 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	-	RECEPTACLE	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	GOLD OVER NICKEL	GOLD OVER NICKEL	AU ON NI	AU ON NI	-	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	MALE	-	MALE	MALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	35 mΩ	-	35 mΩ	35 mΩ	35 mΩ	-	35 mΩ	35 mΩ	35 mΩ
Dielectric withstand voltage	1700VAC V	-	1700VAC V	1700VAC V	1700VAC V	-	1700VAC V	1700VAC V	1700VAC V
Insulation resistance	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω	-	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	-	BLUE	BLUE	BLUE	-	BLUE	BLUE	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	-	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	57LE	57LE	57LE	57LE	57LE	-	57LE	57LE	57LE
Plug contact pitch	0.085 inch	-	0.085 inch	0.085 inch	0.085 inch	-	0.085 inch	0.085 inch	0.085 inch
Installation option 1	LOCKING	-	LOCKING	LOCKING	LOCKING	-	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD AND PANEL	BOARD AND PANEL	BOARD	BOARD	-	BOARD	BOARD	BOARD
PCB row number	2	-	2	2	2	-	2	2	2
Number of rows loaded	2	-	2	2	2	-	2	2	2
Maximum operating temperature	105 °C	-	105 °C	105 °C	105 °C	-	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-	-55 °C	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	-	4.2926 mm	4.2926 mm	4.2926 mm	-	4.2926 mm	4.2926 mm	4.2926 mm
Plating thickness	16u inch	-	16u inch	16u inch	16u inch	-	16u inch	16u inch	16u inch
Rated current (signal)	3 A	-	3 A	3 A	3 A	-	3 A	3 A	3 A
Guideline	UL	-	UL	UL	UL	-	UL	UL	UL
reliability	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	-	NICKEL	NICKEL	NICKEL	-	NICKEL	NICKEL	NICKEL
Terminal length	0.187 inch	-	0.187 inch	0.187 inch	0.187 inch	-	0.187 inch	0.187 inch	0.187 inch
Terminal pitch	2.159 mm	-	2.159 mm	2.159 mm	2.159 mm	-	2.159 mm	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	-	SOLDER	SOLDER	SOLDER
Total number of contacts	50	36	24	24	50	-	14	14	24
Base Number Matches	1	1	1	1	1	-	1	1	-
