31_BNC-50-0-1/133_NH: DescriptionRF Connector Adapter, BNC-BNC, Female-Female, Jack-jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerHUBER+SUHNER

Download Datasheet Parametric Compare View All

31_BNC-50-0-1/133_NH Overview

RF Connector Adapter, BNC-BNC, Female-Female, Jack-jack, ROHS COMPLIANT

31_BNC-50-0-1/133_NH Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Adapter type	BNC-BNC
Body/casing type	JACK-JACK
Characteristic impedance	50 Ω
Connector type	RF CONNECTOR ADAPTER
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE-FEMALE
Contact material	NOT SPECIFIED
Contact style	COAX
Coupling type	BAYONET
DIN compliance	NO
Durability	500 Cycles
Filter function	NO
IEC compliance	NO
insulator material	PFA/PTFE
MIL compliance	NO
Manufacturer's serial number	WITHIN
Installation method	STRAIGHT
Maximum operating frequency	4 GHz
Maximum operating temperature	165 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
voltage standing wave ratio	1.22
Base Number Matches	1

Preview

Download Datasheet

View All

HUBER+SUHNER

®

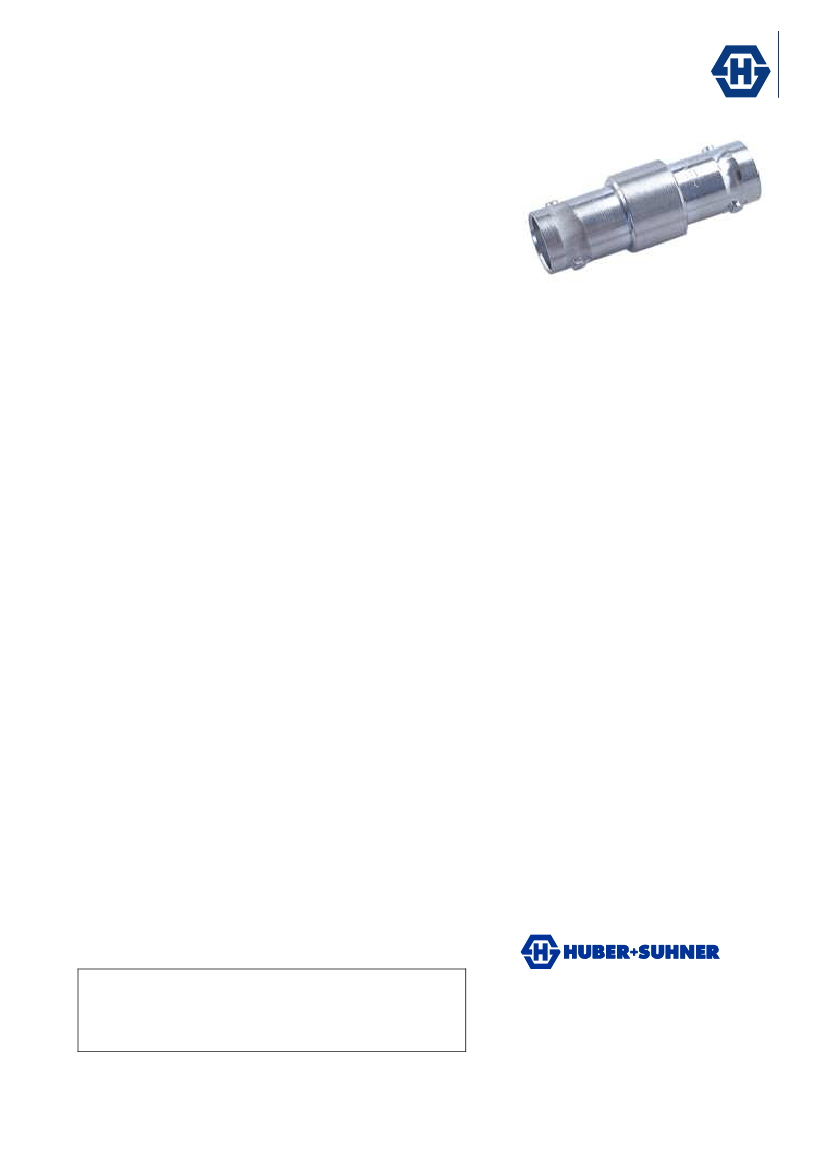

DATA SHEET

Within Series Adapter: 31_BNC-50-0-1/133_N

Description

Rev.: E

Adaptor jack/jack

BNC jack (female) / BNC jack (female)

Interface standards

IEC 60169-8_MIL-STD-348A/301_CECC 22120

Technical Data

Electrical Data

Impedance

Interface frequency max.

VSWR

50

Ω

4 GHz

DC - 4 GHz

≤ 1.06 + 0.04 f

500

0.0123 kg

-65 °C to 165 °C

compliant

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Material

Copper Beryllium Alloy

Brass

PFA / PTFE

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Surface Plating

Gold Plating (Nickel underplated)

SUCOPLATE (R) Plating

Mechanical Data

Number of matings

Weight

Environmental Data

Operating Temperature

2002/95/EC (RoHS)

Piece Parts

(BNC)

Centre contact

Outer contact

Body

Insulator

Piece Parts

(BNC)

Centre contact

Outer contact

Body

Insulator

Material Data

31_BNC-50-0-1/133_NH Related Products

	31_BNC-50-0-1/133_NH	31BNC-50-0-1/133NH	31_BNC-50-0-1/133_NE
Description	RF Connector Adapter, BNC-BNC, Female-Female, Jack-jack, ROHS COMPLIANT	FEMALE-FEMALE, RF STRAIGHT ADAPTER, JACK-JACK, ROHS COMPLIANT	RF Connector Adapter, BNC-BNC, Female-Female, Jack-jack, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	unknown	compliant
Adapter type	BNC-BNC	BNC-BNC	BNC-BNC
Body/casing type	JACK-JACK	JACK-JACK	JACK-JACK
Characteristic impedance	50 Ω	50 Ω	50 Ω
Connector type	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER	RF CONNECTOR ADAPTER
Contact point gender	FEMALE-FEMALE	FEMALE-FEMALE	FEMALE-FEMALE
Coupling type	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	PFA/PTFE	PFA/PTFE	PFA/PTFE
MIL compliance	NO	NO	NO
Maximum operating frequency	4 GHz	4 GHz	4 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO
voltage standing wave ratio	1.22	1.22	1.22
Base Number Matches	1	1	1
ECCN code	EAR99	-	EAR99
Contact to complete cooperation	NOT SPECIFIED	-	NOT SPECIFIED
Contact material	NOT SPECIFIED	-	NOT SPECIFIED
Contact style	COAX	-	COAX
Durability	500 Cycles	-	500 Cycles
Manufacturer's serial number	WITHIN	WITHIN	-
Installation method	STRAIGHT	-	STRAIGHT
Maximum operating temperature	165 °C	-	165 °C
Minimum operating temperature	-65 °C	-	-65 °C
reliability	COMMERCIAL	-	COMMERCIAL
Other features	-	CAPTIVE CENTER CONTACT	STANDARDS: IEC 60169-8; MIL-STD-348A/301
