LV426311 Overview

Thermal Magnetic Circuit Breaker,

LV426311 Parametric

Parameter NameAttribute value
MakerSCHNEIDER ELECTRIC
Reach Compliance Codeunknown
Circuit protection typeTHERMAL MAGNETIC
Base Number Matches1

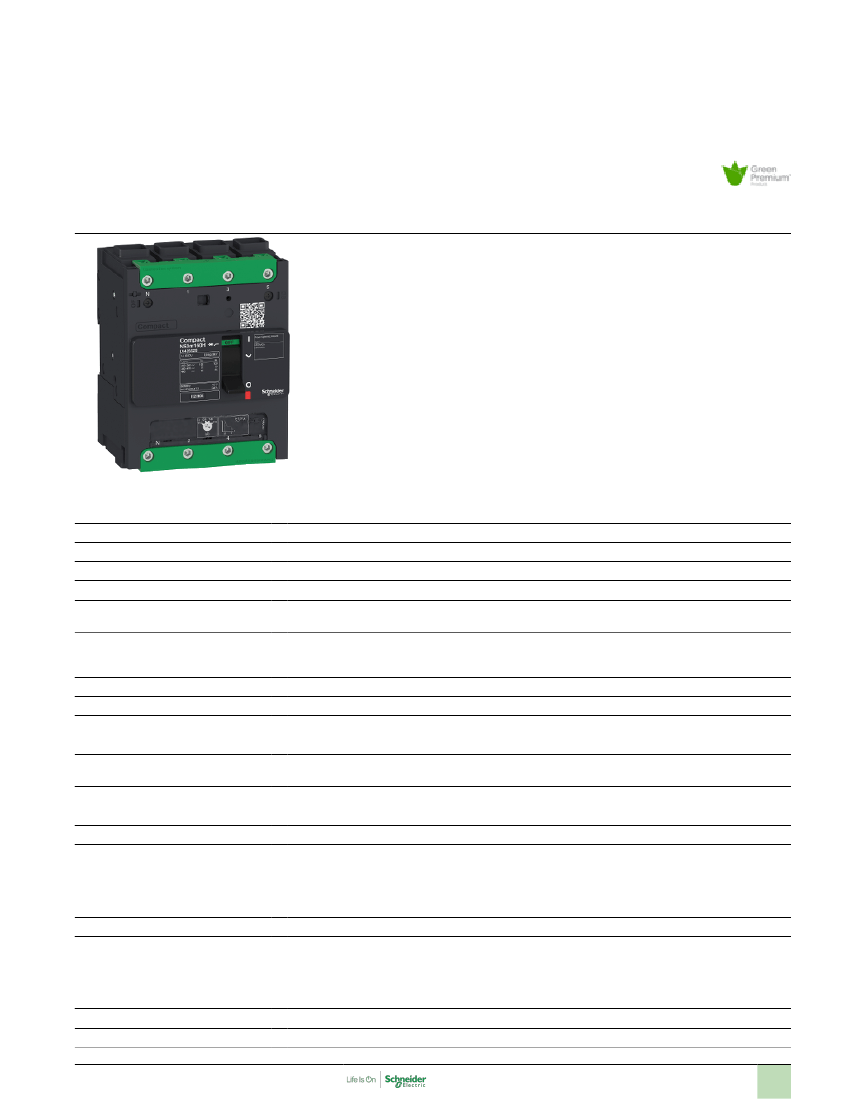

Product datasheet
Characteristics
LV426311
circuit breaker Compact NSXm 25A 4P 36kA at
380/415V(IEC) EverLink lug
Main
Range
Product name
Device short name
Product or component type
Device application
Compact
Compact NSXm
NSXm 25F
Circuit breaker
Distribution
Protection
Complementary
[In] rated current
Poles description
Neutral position
Control type
Mounting mode
Network type
Network frequency
Breaking capacity code
[Icu] rated ultimate breaking capacity
25 A
4P 3d
Left
Toggle
By screws (plate)
Clip-on (DIN rail)
AC
50/60 Hz
36 kA 415 V AC
Icu 85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
Icu 36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
Icu 35 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Icu 15 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
Icu 10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
690 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
85 kA at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380...415 V AC 50/60 Hz conforming to IEC 60947-2
30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
8 kV conforming to IEC 60947-2
800 V conforming to IEC 60947-2
[Ue] rated operational voltage
[Ics] rated service breaking capacity
[Uimp] rated impulse withstand voltage
[Ui] rated insulation voltage
Aug 17, 2019
1
Disclaimer: This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications
