5962-8963501PX: Description5962-8963501PX amplifier basic information: 5962-8963501PX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP, 5962-8963501PX amplifier core information: The minimum operating temperature of the 5962-8963501PX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.2 µA How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8963501PX is 6 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8963501PX gain becomes 0.707 times the low-frequency gain is 10000 kHz. The nominal supply voltage of 5962-8963501PX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-8963501PX is 3000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).) Related dimensions of 5962-8963501PX: 5962-8963501PX has 8 terminals. Its terminal position type is: DUAL. 5962-8963501PX amplifier additional information: Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8963501PX is: DIP. The materials used in the 5962-8963501PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR. The 5962-8963501PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.; CategoryAnalog mixed-signal IC Amplifier circuit; File Size397KB，14 Pages; ManufacturerHarris; Websitehttp://www.harris.com/; Alternative parts：5962-8963501PX

Download Datasheet Parametric Compare View All

5962-8963501PX Overview

5962-8963501PX amplifier basic information:

5962-8963501PX is an OPERATIONAL AMPLIFIER. The commonly used packaging method is DIP,

5962-8963501PX amplifier core information:

The minimum operating temperature of the 5962-8963501PX is -55 °C and the maximum operating temperature is 125 °C. Its maximum average bias current is 0.2 µA

How to simply check the efficiency of an amplifier? Looking at its slew rate, the nominal slew rate of 5962-8963501PX is 6 V/us. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-8963501PX gain becomes 0.707 times the low-frequency gain is 10000 kHz.

The nominal supply voltage of 5962-8963501PX is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of the 5962-8963501PX is 3000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

Related dimensions of 5962-8963501PX:

5962-8963501PX has 8 terminals. Its terminal position type is: DUAL.

5962-8963501PX amplifier additional information:

Its temperature grade is: MILITARY. The corresponding JESD-30 code is: R-GDIP-T8. The packaging code of 5962-8963501PX is: DIP. The materials used in the 5962-8963501PX package are mostly CERAMIC and GLASS-SEALED. The package shape is RECTANGULAR.

The 5962-8963501PX package pin format is: IN-LINE. Its terminal form is: THROUGH-HOLE.

5962-8963501PX Parametric

Parameter Name	Attribute value
Maker	Harris
package instruction	DIP,
Reach Compliance Code	unknown
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA
Nominal Common Mode Rejection Ratio	80 dB
Maximum input offset voltage	3000 µV
JESD-30 code	R-GDIP-T8
Negative supply voltage upper limit	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Nominal slew rate	6 V/us
Supply voltage upper limit	20 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Nominal Uniform Gain Bandwidth	10000 kHz
Base Number Matches	1

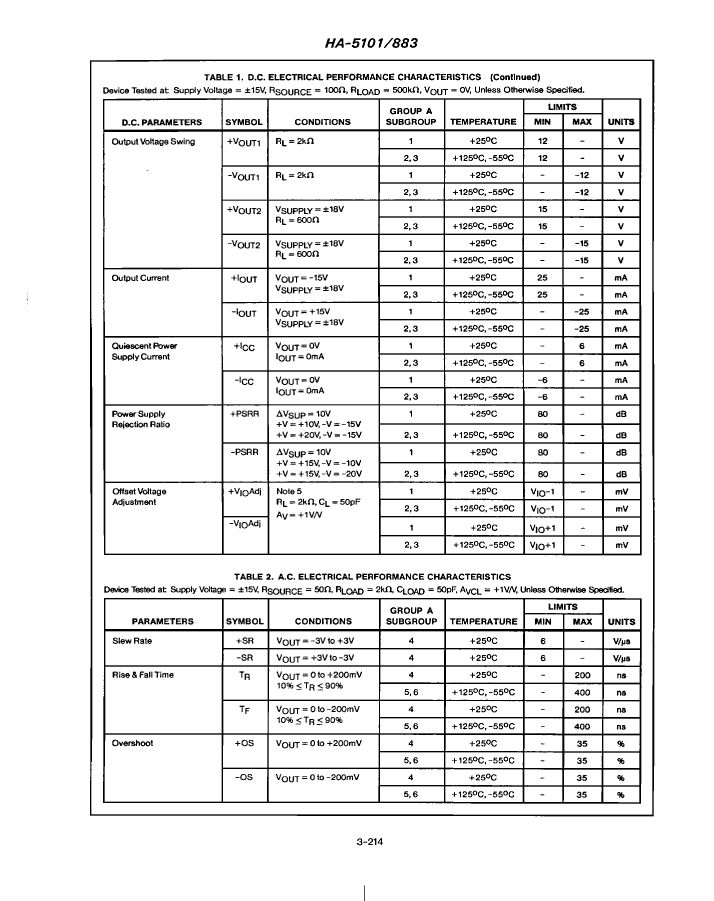

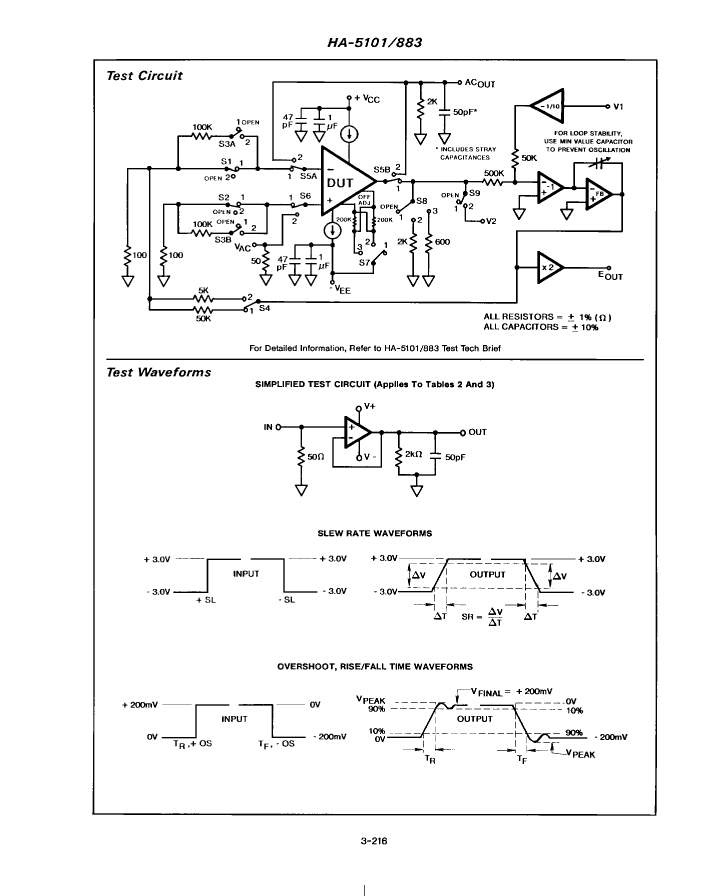

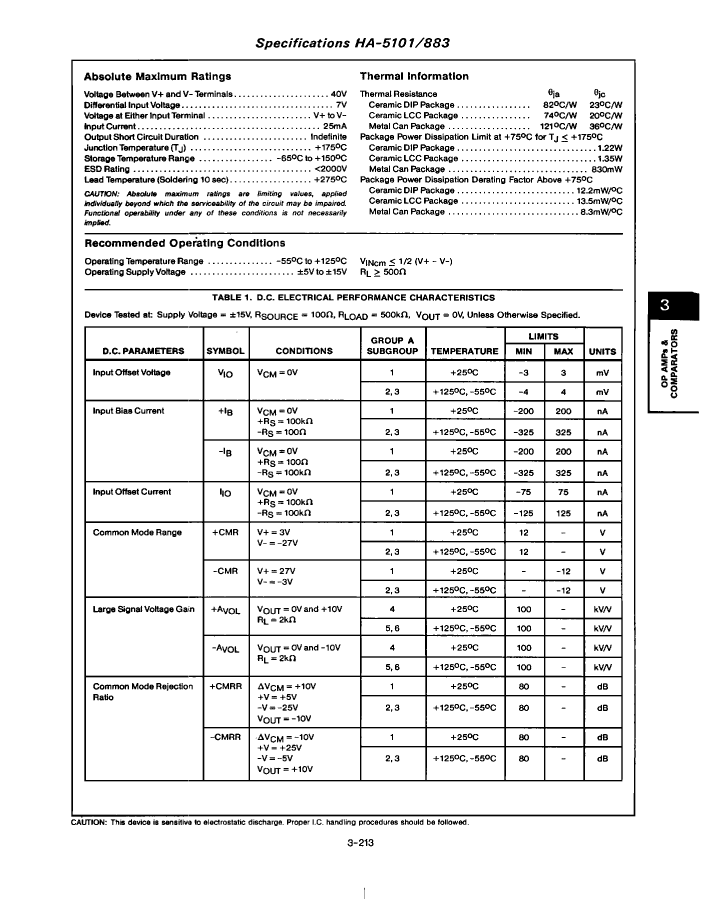

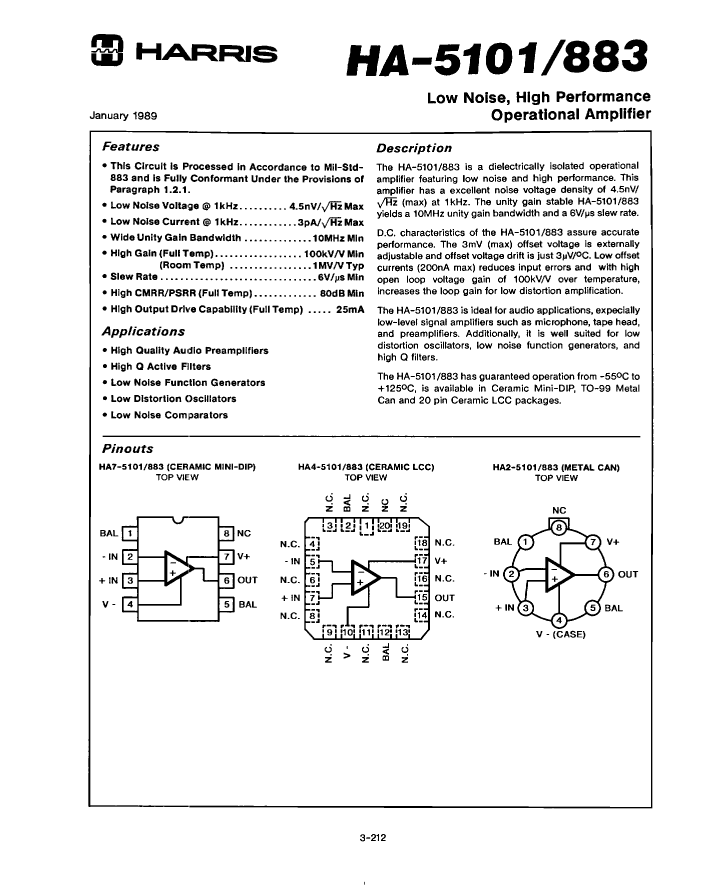

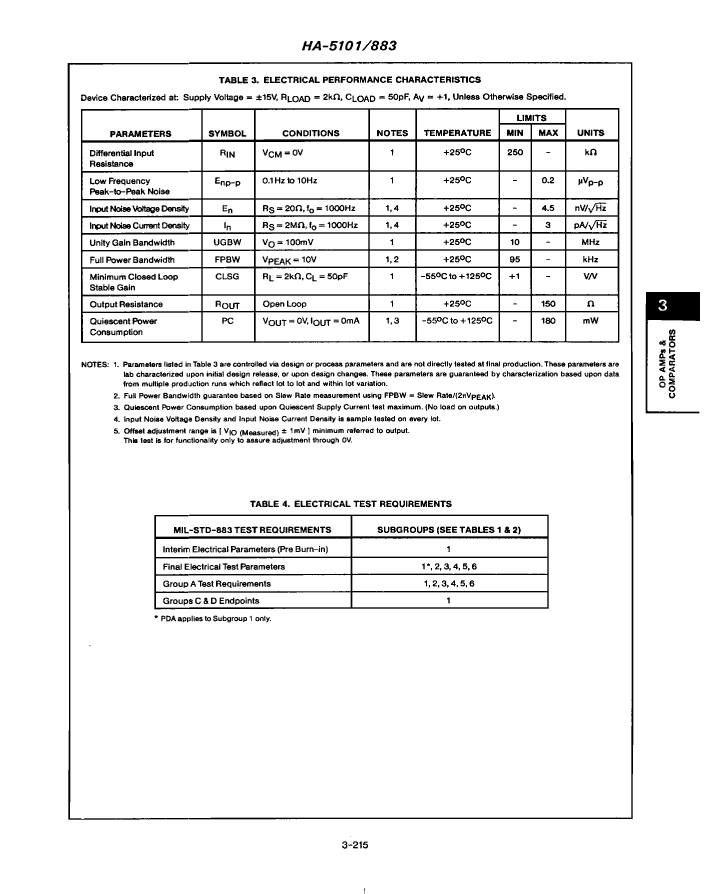

Preview

Download Datasheet

View All

5962-8963501PX Related Products

	5962-8963501PX	5962-89635012X	5962-89635012A
Description	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CDIP8, CERAMIC, DIP-8	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CQCC20, CERAMIC, LCC-20	Operational Amplifier, 1 Func, 3000uV Offset-Max, BIPolar, CQCC20, CERAMIC, LCC-20
Maker	Harris	Harris	Harris
package instruction	DIP,	QCCN,	QCCN,
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.2 µA	0.2 µA	0.2 µA
Nominal Common Mode Rejection Ratio	80 dB	80 dB	80 dB
Maximum input offset voltage	3000 µV	3000 µV	3000 µV
JESD-30 code	R-GDIP-T8	S-CQCC-N20	S-CQCC-N20
Negative supply voltage upper limit	-20 V	-20 V	-20 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V
Number of functions	1	1	1
Number of terminals	8	20	20
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCN	QCCN
Package shape	RECTANGULAR	SQUARE	SQUARE
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	6 V/us	6 V/us	6 V/us
Supply voltage upper limit	20 V	20 V	20 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V
surface mount	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	NO LEAD	NO LEAD
Terminal location	DUAL	QUAD	QUAD
Nominal Uniform Gain Bandwidth	10000 kHz	10000 kHz	10000 kHz
Base Number Matches	1	1	-
