593949

Description
Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle
CategoryThe connector    The connector
File Size74KB，2 Pages
ManufacturerERNI
Websitehttp://www.erni.com
Download Datasheet Parametric Compare View All

593949 Overview

Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle

593949 Parametric

Parameter NameAttribute value
MakerERNI
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresSTANDARDS: DIN 41612; IEC 60603-2
body width0.338 inch
subject depth0.457 inch
body length3.74 inch
Body/casing typeRECEPTACLE
Connector typeBOARD EURO CONNECTOR
Contact to complete cooperationAU
Contact completed and terminatedGOLD
Contact point genderMALE
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
DIN complianceYES
Dielectric withstand voltage1000VAC V
Durability400 Cycles
Filter functionNO
IEC complianceYES
maximum insertion force.9452 N
Insulation resistance1000000000000 Ω
insulator materialPOLYBUTYLENE TEREPHTHALATE
MIL complianceNO
Manufacturer's serial number593949
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Loaded row nameA,B
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
OptionsGENERAL PURPOSE
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
polarization keyENDS
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.787 inch
Terminal pitch2.54 mm
Termination typePRESS FIT
Total number of contacts64
UL Flammability Code94V-0
Evacuation force-minimum value.9452 N
Base Number Matches1

Preview

Download Datasheet

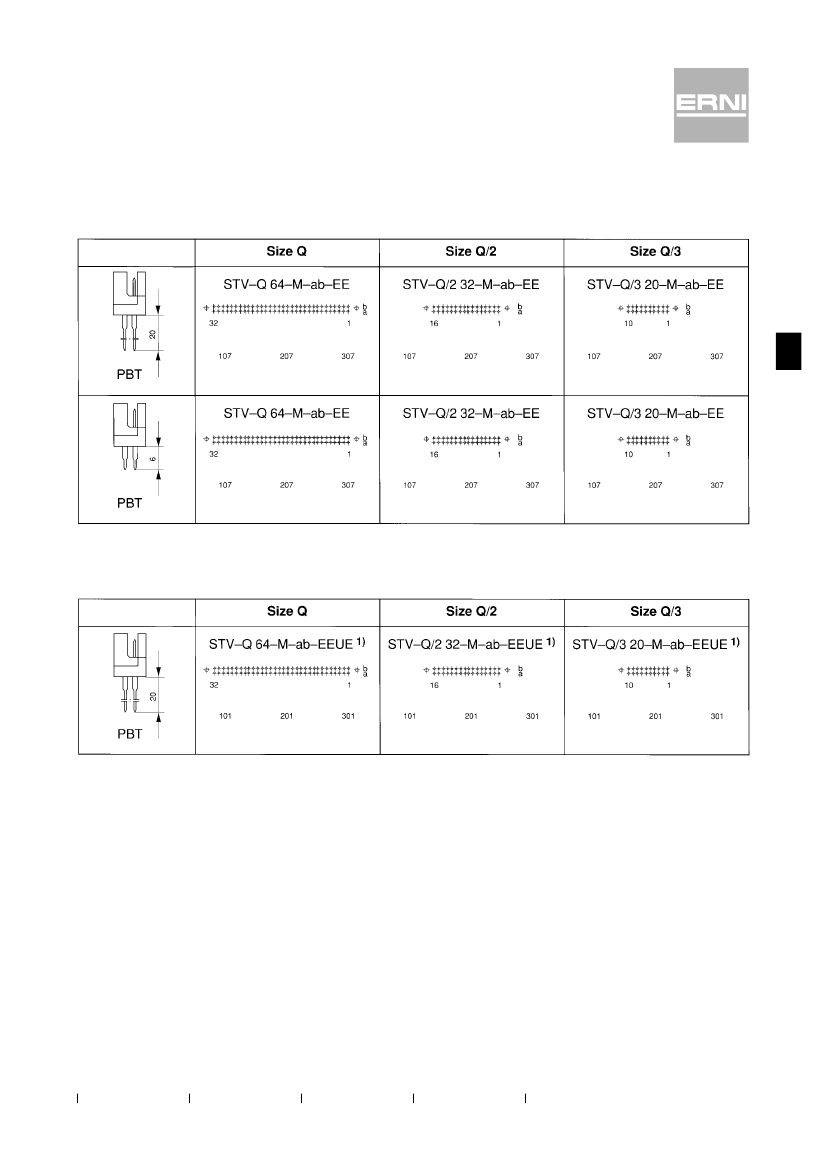

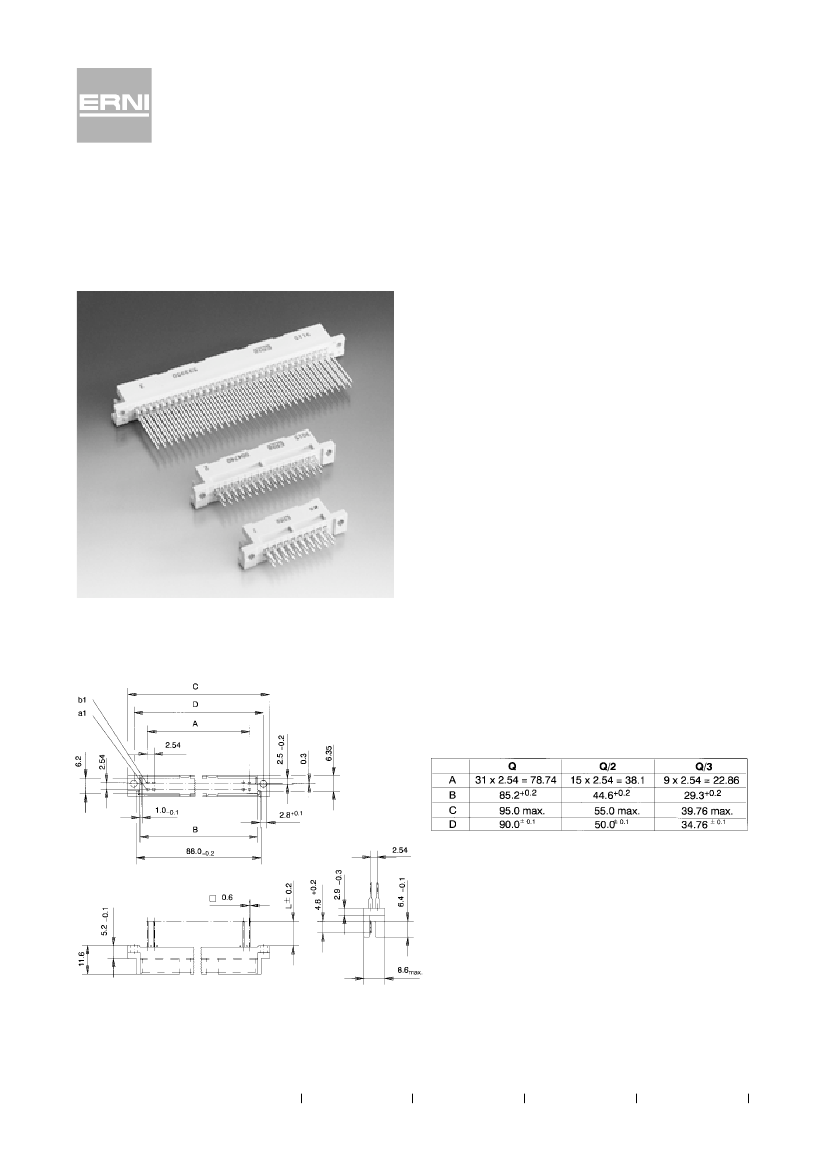

Size Q
Size Q/2
Size Q/3
Reversed style, acc. to DIN 41 612/IEC 60603-2
Reversed style, short version of size Q
Reversed style, third-length of size Q
Dimensional drawings
Male connector
264
Catalog E 074484
04/04
Edition 6
www.erni.com

593949 Related Products

593949 593963 UCF4029019DD010005-10.00M 004740 023416 023417 023418 023420 023421
Description Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, Clipped Sine Output Oscillator, 10MHz Nom, VOLTAGE CONTROLLED TEMPERATURE COMPENSATED CRYSTAL OSCILLATOR Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, Board Euro Connector, 64 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, Board Euro Connector, 32 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle, Board Euro Connector, 20 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle,
Reach Compliance Code unknown compliant compliant compliant compliant compliant compliant compliant compliant
Maximum operating temperature 125 °C 125 °C 55 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -65 °C -65 °C -5 °C -65 °C -65 °C -65 °C -65 °C -65 °C -65 °C
Maker ERNI ERNI - ERNI ERNI ERNI ERNI ERNI ERNI
ECCN code EAR99 EAR99 - EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
Other features STANDARDS: DIN 41612; IEC 60603-2 STANDARDS: DIN 41612; IEC 60603-2 - STANDARDS: DIN 41612; IEC 60603-2 STANDARDS: DIN 41612; IEC 60603-2 STANDARDS: DIN 41612; IEC 60603-2 STANDARDS: DIN 41612; IEC 60603-2 STANDARDS: DIN 41612; IEC 60603-2 STANDARDS: DIN 41612; IEC 60603-2
body width 0.338 inch 0.338 inch - 0.338 inch 0.338 inch 0.338 inch 0.338 inch 0.338 inch 0.338 inch
subject depth 0.457 inch 0.457 inch - 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch 0.457 inch
body length 3.74 inch 3.74 inch - 2.165 inch 3.74 inch 1.565 inch 3.74 inch 2.165 inch 1.565 inch
Body/casing type RECEPTACLE RECEPTACLE - RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE RECEPTACLE
Connector type BOARD EURO CONNECTOR BOARD EURO CONNECTOR - BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR BOARD EURO CONNECTOR
Contact to complete cooperation AU AU - AU AU AU AU AU AU
Contact completed and terminated GOLD GOLD - GOLD GOLD GOLD GOLD GOLD GOLD
Contact point gender MALE MALE - MALE MALE MALE MALE MALE MALE
Contact resistance 20 mΩ 20 mΩ - 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ 20 mΩ
Contact style SQ PIN-SKT SQ PIN-SKT - SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
DIN compliance YES YES - YES YES YES YES YES YES
Dielectric withstand voltage 1000VAC V 1000VAC V - 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V 1000VAC V
Durability 400 Cycles 500 Cycles - 400 Cycles 500 Cycles 400 Cycles 500 Cycles 400 Cycles 400 Cycles
Filter function NO NO - NO NO NO NO NO NO
IEC compliance YES YES - YES YES YES YES YES YES
maximum insertion force .9452 N .9452 N - .9452 N .9452 N .8896 N .9452 N .9452 N .8896 N
Insulation resistance 1000000000000 Ω 1000000000000 Ω - 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω 1000000000000 Ω
insulator material POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE - POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE POLYBUTYLENE TEREPHTHALATE
MIL compliance NO NO - NO NO NO NO NO NO
Plug contact pitch 0.1 inch 0.1 inch - 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Match contact row spacing 0.1 inch 0.1 inch - 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch 0.1 inch
Mixed contacts NO NO - NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT - STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD - BOARD BOARD BOARD BOARD BOARD BOARD
Loaded row name A,B A,B - A,B A,B A,B A,B A,B A,B
PCB row number 2 2 - 2 2 2 2 2 2
Number of rows loaded 2 2 - 2 2 2 2 2 2
Options GENERAL PURPOSE GENERAL PURPOSE - GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
PCB contact pattern RECTANGULAR RECTANGULAR - RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 2.54 mm 2.54 mm - 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
polarization key ENDS ENDS - ENDS ENDS ENDS ENDS ENDS ENDS
Rated current (signal) 1 A 1 A - 1 A 1 A 1 A 1 A 1 A 1 A
Guideline UL, CSA UL, CSA - UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA UL, CSA
reliability COMMERCIAL COMMERCIAL - COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal length 0.787 inch 0.787 inch - 0.236 inch 0.787 inch 0.787 inch 0.236 inch 0.787 inch 0.787 inch
Terminal pitch 2.54 mm 2.54 mm - 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type PRESS FIT PRESS FIT - PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT PRESS FIT
Total number of contacts 64 64 - 32 64 20 64 32 20
UL Flammability Code 94V-0 94V-0 - 94V-0 94V-0 94V-0 94V-0 94V-0 94V-0
Evacuation force-minimum value .9452 N .9452 N - .9452 N .9452 N .8896 N .9452 N .9452 N .8896 N
JESD-609 code - e4 - e4 e4 e4 e4 e4 e4
