Part Number

Search

54LS719/BEAJC

Description
IC,COUNTER,UP,MOD-N,LS-TTL,DIP,16PIN,CERAMIC
Categorylogic    logic
File Size202KB,6 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric Compare View All

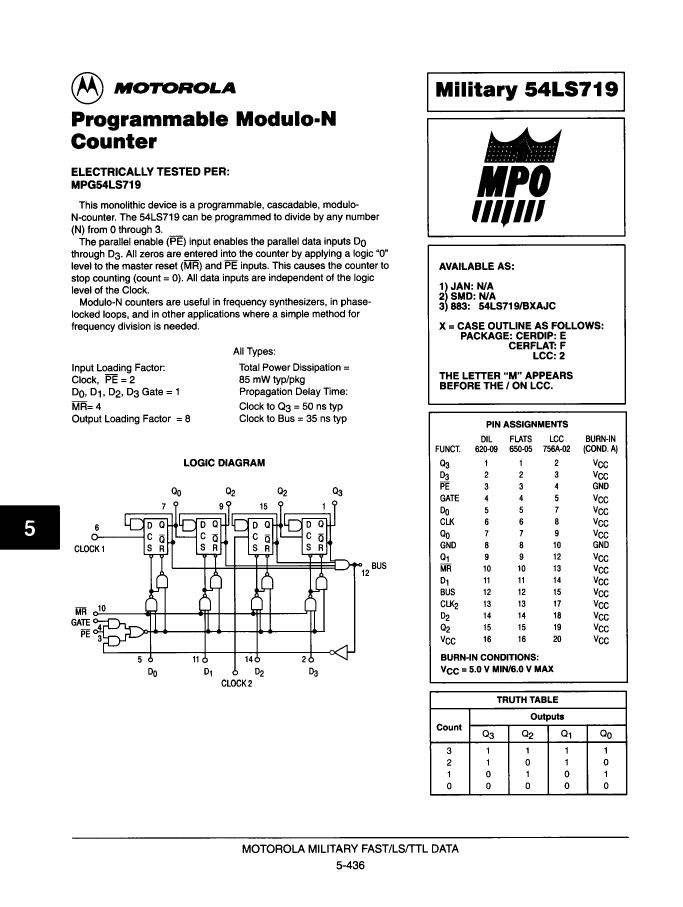

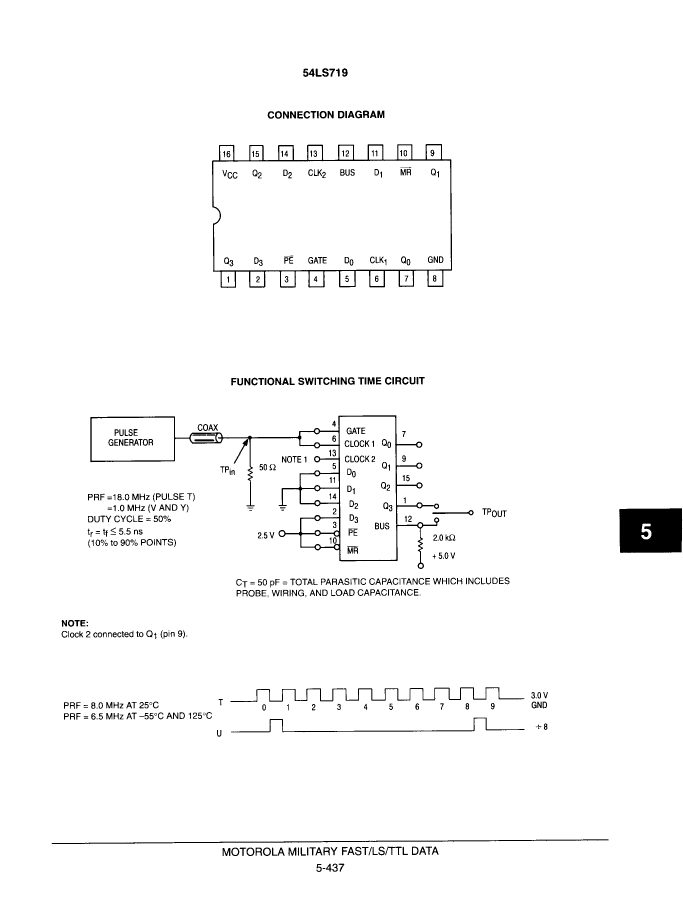

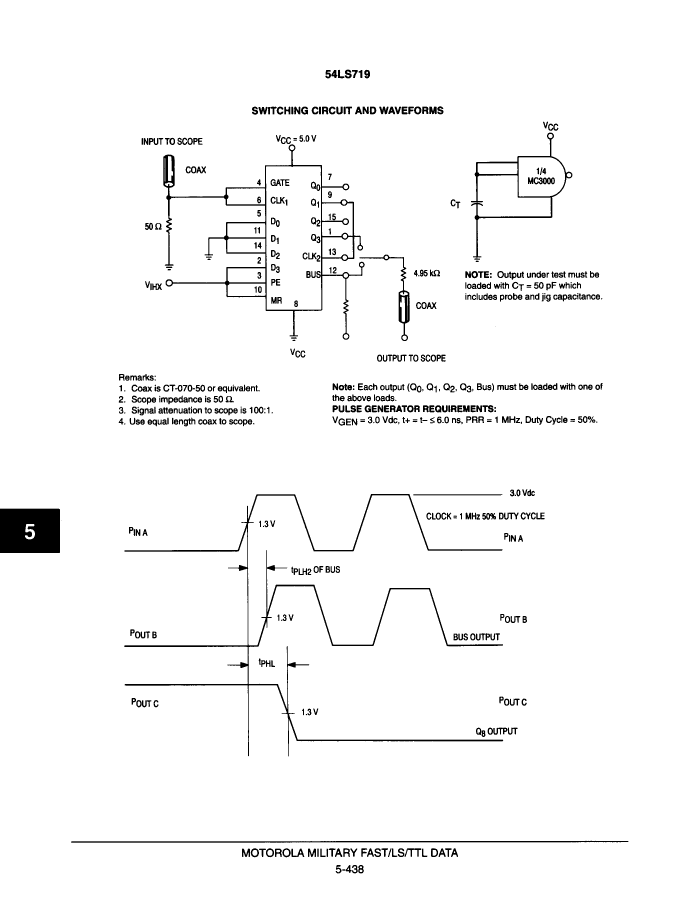

54LS719/BEAJC Overview

IC,COUNTER,UP,MOD-N,LS-TTL,DIP,16PIN,CERAMIC

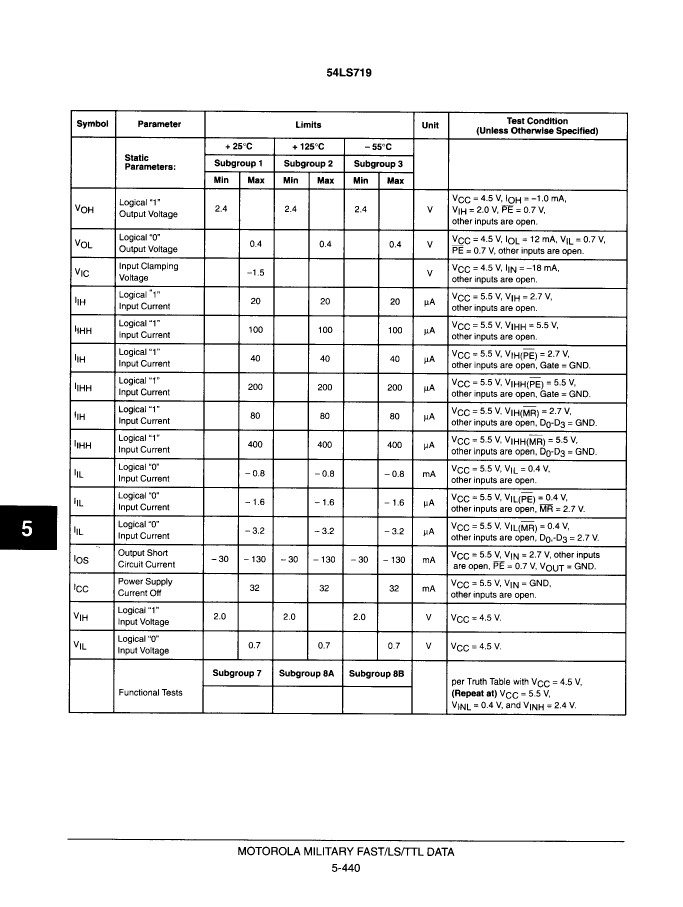

54LS719/BEAJC Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerNXP
package instructionDIP, DIP16,.3
Reach Compliance Codeunknown
Counting directionUP
JESD-30 codeR-XDIP-T16
JESD-609 codee0
Load/preset inputYES
Logic integrated circuit typeDIVIDE BY N COUNTER
Maximum Frequency@Nom-Sup6500000 Hz
MaximumI(ol)0.012 A
Operating modeASYNCHRONOUS
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply5 V
Maximum supply current (ICC)32 mA
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1

54LS719/BEAJC Related Products

54LS719/BEAJC 54LS719/BFAJC 54LS719/B2AJC
Description IC,COUNTER,UP,MOD-N,LS-TTL,DIP,16PIN,CERAMIC IC,COUNTER,UP,MOD-N,LS-TTL,FP,16PIN,CERAMIC IC,COUNTER,UP,MOD-N,LS-TTL,LLCC,20PIN,CERAMIC
Is it Rohs certified? incompatible incompatible incompatible
package instruction DIP, DIP16,.3 DFP, FL16,.3 QCCN, LCC20,.35SQ
Reach Compliance Code unknown unknown unknown
Counting direction UP UP UP
JESD-30 code R-XDIP-T16 R-XDFP-F16 S-XQCC-N20
JESD-609 code e0 e0 e0
Load/preset input YES YES YES
Logic integrated circuit type DIVIDE BY N COUNTER DIVIDE BY N COUNTER DIVIDE BY N COUNTER
Maximum Frequency@Nom-Sup 6500000 Hz 6500000 Hz 6500000 Hz
MaximumI(ol) 0.012 A 0.012 A 0.012 A
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Number of functions 1 1 1
Number of terminals 16 16 20
Maximum operating temperature 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Package body material CERAMIC CERAMIC CERAMIC
encapsulated code DIP DFP QCCN
Encapsulate equivalent code DIP16,.3 FL16,.3 LCC20,.35SQ
Package shape RECTANGULAR RECTANGULAR SQUARE
Package form IN-LINE FLATPACK CHIP CARRIER
power supply 5 V 5 V 5 V
Maximum supply current (ICC) 32 mA 32 mA 32 mA
Certification status Not Qualified Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal supply voltage (Vsup) 5 V 5 V 5 V
surface mount NO YES YES
technology TTL TTL TTL
Temperature level MILITARY MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form THROUGH-HOLE FLAT NO LEAD
Terminal pitch 2.54 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL QUAD
Base Number Matches 1 1 1
Maker NXP NXP -
