35CLQ045PBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 35CLQ045PBF

35CLQ045PBF: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon, SMD1-3; CategoryDiscrete semiconductor diode; File Size125KB，4 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

35CLQ045PBF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon, SMD1-3

35CLQ045PBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
package instruction	R-CBCC-N3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.75 V
JESD-30 code	R-CBCC-N3
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	35 A
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
Maximum reverse current	100 µA
surface mount	YES
technology	SCHOTTKY
Terminal form	NO LEAD
Terminal location	BOTTOM
Maximum time at peak reflow temperature	40
Base Number Matches	1

Preview

Download Datasheet

View All

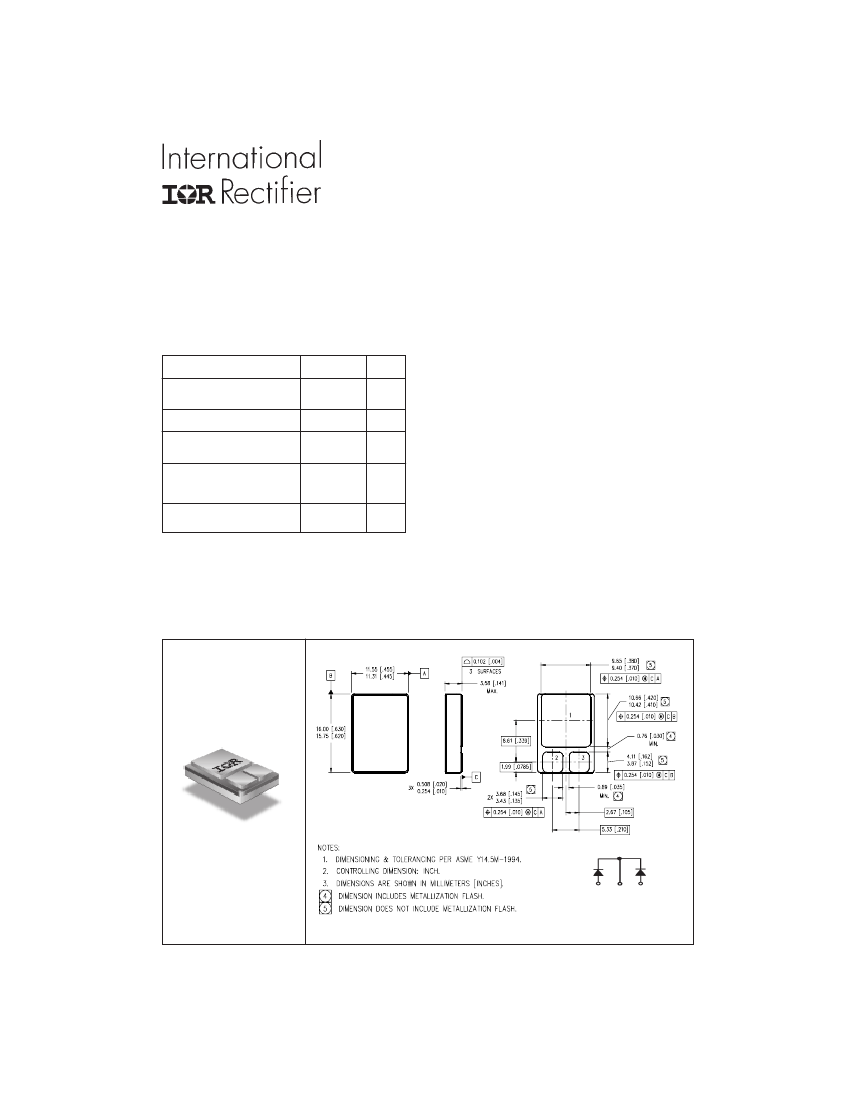

PD-20503D

SCHOTTKY RECTIFIER

HIGH EFFICIENCY SERIES

35CLQ045

35A, 45V

Major Ratings and Characteristics

Characteristics

F(AV)

Rectangular

waveform

RRM

(Per Leg)

FSM

@ tp = 8.3ms half-sine

(Per Leg)

@ 20Apk, T

= 125°C

(Per Leg)

35CLQ045 Units

300

0.57

°C

Description / Features

The 35CLQ045 center tap Schottky rectifier has been

expressly designed to meet the rigorous requirements of

HiRel environments. It is packaged in the hermetic surface

mount SMD-1 ceramic package. The device's forward

voltage drop and reverse leakage current are optimized for

the lowest power loss and the highest circuit efficiency for

typical high frequency switching power supplies and

resonent power converters. Full MIL-PRF-19500 quality

conformance testing is available on source controlled

drawings to TX, TXV and S levels.

•

Hermetically Sealed

Center Tap

Low Forward Voltage Drop

High Frequency Operation

Guard Ring for Enhanced Ruggedness and Long

Term Reliability

• Surface Mount

• Lightweight

, T

stg

Operating and storage

-55 to 150

CASE STYLE

( ISOLATED BASE )

ANODE COMMON ANODE

CATHODE

Case Outline and Dimensions - SMD-1

www.irf.com

09/21/12

35CLQ045PBF Related Products

	35CLQ045PBF	35CLQ045	35CLQ045SCSPBF	JANTX35CLQ045	35CLQ045SCS	JANTXV35CLQ045	JANS35CLQ045
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon, SMD1-3	35 A, 45 V, SILICON, RECTIFIER DIODE	Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon, HERMETIC SEALED, CERAMIC, SMD1, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon	Rectifier Diode, Schottky, 1 Phase, 2 Element, 35A, 45V V(RRM), Silicon
Is it lead-free?	Lead free	Contains lead	Lead free	Contains lead	Contains lead	Contains lead	Contains lead
Maker	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
package instruction	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3	R-CBCC-N3
Maximum non-repetitive peak forward current	300 A	300 A	300 A	300 A	300 A	300 A	300 A
Number of components	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260	NOT SPECIFIED	260	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V	45 V	45 V	45 V	45 V	45 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
Maximum time at peak reflow temperature	40	NOT SPECIFIED	40	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1	1	1	1	1	1
Is it Rohs certified?	conform to	-	conform to	incompatible	incompatible	incompatible	incompatible
Contacts	3	3	3	-	3	-	-
Other features	HIGH RELIABILITY	HIGH RELIABILITY	HIGH RELIABILITY	-	HIGH RELIABILITY	-	-
Maximum operating temperature	150 °C	-	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
JESD-609 code	-	-	-	e0	e0	e0	e0
Terminal surface	-	-	-	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
