DVTR28515TF/H-E

Description
DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10
CategoryPower/power management    The power supply circuit
File Size438KB,15 Pages
ManufacturerVPT Inc
Download Datasheet Parametric Compare View All

DVTR28515TF/H-E Overview

DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10

DVTR28515TF/H-E Parametric

Parameter NameAttribute value
MakerVPT Inc
package instructionSEAM SEAL PACKAGE-10
Reach Compliance Codeunknown
Other features+/-15 V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other TypesDC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage50 V
Minimum input voltage15 V
Nominal input voltage28 V
JESD-30 codeR-XDFM-P10
Number of functions1
Output times3
Number of terminals10
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Maximum output voltage5.15 V
Minimum output voltage4.85 V
Nominal output voltage5 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formFLANGE MOUNT
Filter levelMIL-PRF-38534 Class H
surface mountNO
technologyHYBRID
Temperature levelMILITARY
Terminal formPIN/PEG
Terminal locationDUAL
Maximum total power output30 W
Fine-tuning/adjustable outputNO
Base Number Matches1
DVTR2800T Series
HIGH RELIABILITY HYBRID
DC-DC CONVERTERS
DESCRIPTION
The DVTR series of high reliability DC-DC converters
is operable over the full military (-55 ° to +125 °
C
C)
temperature range with no power derating. Unique
to the DVTR series are robust and effective input and
output filters which provide dramatically reduced
input and output noise performance when compared
to other manufacturers competing devices.
Operating at a nominal fixed frequency of 325 kHz,
per stage, these regulated, isolated units utilize a
high speed magnetic feedback design and well
controlled undervoltage lockout circuitry to eliminate
slow start-up problems.
These converters are designed and manufactured in
a facility qualified to ISO9001 and certified to MIL-
PRF-38534 and MIL-STD-883.
This product may incorporate one or more of the
following U.S. patents:
5,784,266
5,790,389
5,963,438
5,999,433
6,005,780
6,084,792
6,118,673
FEATURES
High Reliability
Very Low Output Noise
Wide Input Voltage Range: 15 to 50 Volts per
MIL-STD-704
Up to 30 Watts Output Power
Fault Tolerant Magnetic Feedback Circuit
NO Use of Optoisolators
Undervoltage Lockout
Indefinite Short Circuit Protection
Current Limit Protection
Industry Standard Pinout
High Input Transient Voltage: 80 Volts for 1 sec
per MIL-STD-704A
Precision Seam Welded Hermetic Package
High Power Density: > 28 W/in
3
Custom Versions Available
Additional Environmental Screening Available
Meets MIL-STD-461 Revisions C, D, E and F
EMC Requirements When Used With VPT’s
EMI Filters
Flanged and Non-flanged Versions Available.
MIL-PRF-38534 Element Evaluated
Components

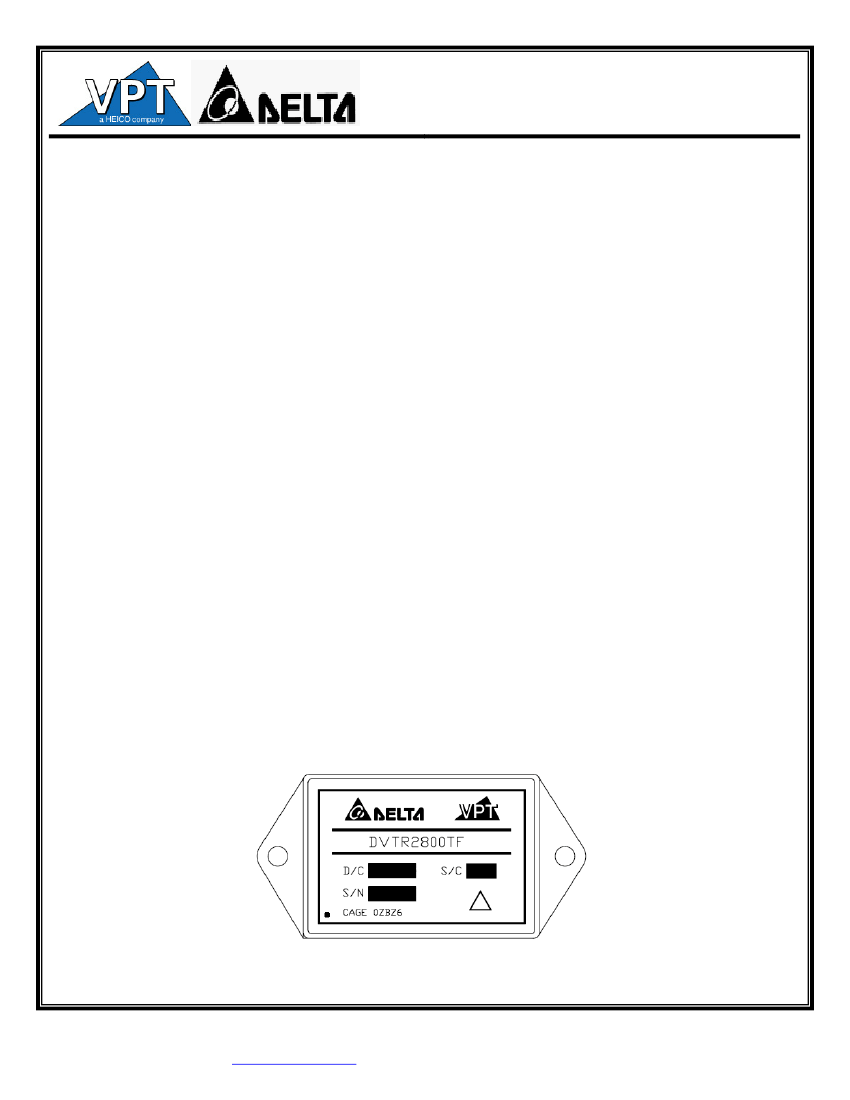

Figure 1
– DVTR2800T / DVTR2800TF DC-DC Converter
(Exact marking may differ from that shown)
Sales Information:
Phone: (425) 353-3010
Fax: (425) 353-4030
E-mail: vptsales@vptpower.com
DVTR2800T-7.0
http://www.vptpower.com
1

DVTR28515TF/H-E Related Products

DVTR28515TF/H-E DVTR28512TF/K-E DVTR28515TF/K-E DVTR28512TF/H-E DVTR28515T/K-E DVTR28512T/K-E DVTR28515T/H-E DVTR28512T/H-E
Description DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10 DC-DC Regulated Power Supply Module, 3 Output, 30W, Hybrid, SEAM SEAL PACKAGE-10
package instruction SEAM SEAL PACKAGE-10 SEAM SEAL PACKAGE-10 SEAM SEAL PACKAGE-10 , , SEAM SEAL PACKAGE-10 SEAM SEAL PACKAGE-10 SEAM SEAL PACKAGE-10
Reach Compliance Code unknown unknown unknown unknown unknown unknown unknown unknown
Other features +/-15 V ADDITIONAL OUTPUT AVAILABLE +/-12 V ADDITIONAL OUTPUT AVAILABLE +/-15 V ADDITIONAL OUTPUT AVAILABLE +/-12 V ADDITIONAL OUTPUT AVAILABLE +/-15 V ADDITIONAL OUTPUT AVAILABLE +/-12 V ADDITIONAL OUTPUT AVAILABLE +/-15 V ADDITIONAL OUTPUT AVAILABLE +/-12 V ADDITIONAL OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 50 V 50 V 50 V 50 V 50 V 50 V 50 V 50 V
Minimum input voltage 15 V 15 V 15 V 15 V 15 V 15 V 15 V 15 V
Nominal input voltage 28 V 28 V 28 V 28 V 28 V 28 V 28 V 28 V
JESD-30 code R-XDFM-P10 R-XDFM-P10 R-XDFM-P10 R-XDFM-P10 R-XDMA-P10 R-XDMA-P10 R-XDMA-P10 R-XDMA-P10
Number of functions 1 1 1 1 1 1 1 1
Output times 3 3 3 3 3 3 3 3
Number of terminals 10 10 10 10 10 10 10 10
Maximum operating temperature 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Maximum output voltage 5.15 V 5.15 V 5.15 V 5.15 V 5.15 V 5.15 V 5.15 V 5.15 V
Minimum output voltage 4.85 V 4.85 V 4.85 V 4.85 V 4.85 V 4.85 V 4.85 V 4.85 V
Nominal output voltage 5 V 5 V 5 V 5 V 5 V 5 V 5 V 5 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT FLANGE MOUNT MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Filter level MIL-PRF-38534 Class H MIL-PRF-38534 Class K MIL-PRF-38534 Class K MIL-PRF-38534 Class H MIL-PRF-38534 Class K MIL-PRF-38534 Class K MIL-PRF-38534 Class H MIL-PRF-38534 Class H
surface mount NO NO NO NO NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID HYBRID
Temperature level MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY MILITARY
Terminal form PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG PIN/PEG
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum total power output 30 W 30 W 30 W 30 W 30 W 30 W 30 W 30 W
Fine-tuning/adjustable output NO NO NO NO NO NO NO NO
Base Number Matches 1 1 1 1 1 1 1 1
Maker VPT Inc VPT Inc VPT Inc VPT Inc VPT Inc - VPT Inc VPT Inc
