HLMP-D640 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HLMP-D640

HLMP-D640: DescriptionT-13/4 (5 mm), T-1 (3 mm), Ultra-Bright LED Lamps; CategoryLED optoelectronic/LED photoelectric; File Size113KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

HLMP-D640 Overview

T-13/4 (5 mm), T-1 (3 mm), Ultra-Bright LED Lamps

HLMP-D640 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
Reach Compliance Code	compliant
color	PURE GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.04 A
Maximum forward voltage	3 V
Lens type	WATER CLEAR
Nominal luminous intensity	60.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.64 mm
method of packing	BULK
peak wavelength	560 nm
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	24 deg
Base Number Matches	1

Preview

Download Datasheet

View All

T-1 3/4 (5mm)

SOLID STATE LAMPS

PURE GREEN

SOFT ORANGE

PACKAGE DIMENSIONS

.200 (5.08)

.180 (4.57)

HLMP-D600

HLMP-D640

HLMP-D400

HLMP-D401

TINTED

CLEAR

TINTED

FEATURES

• Popular T-1 3/4 package

• Low drive current

• Solid state reliability

• Wide viewing angle

.040 (1.02)

.350 (8.89)

.330 (8.38)

• Choice of pure green or soft orange colors

1.00 (25.4)

MIN.

DESCRIPTION

These T-1 3/4 LEDs are widely used as general purpose indica-

tors. The pure green lamps is made with a GaP LED on a GaP

substrate. The soft orange is made with a GaAsP LED on a GaP

substrate. They are encapsulated in epoxy packages and are

designed to provide superior light output and a wide viewing

angle.

.050 (1.27)

.100 (2.54)

.050 (1.27)

REF.

Ø .230 (5.84)

.100 (2.54)

REF.

NOTES:

1. ALL DIMENSIONS ARE IN INCHES (mm).

2. TOLERANCES ARE ±.010” INCH UNLESS SPECIFIED.

.023 (0.58)

.017 (0.43)

SQ. TYP. (2X)

FLAT DENOTES

CATHODE

3. AN EPOXY MENISCUS MAY EXTEND ABOUT .040”

(1 mm) DOWN THE LEADS.

ABSOLUTE MAXIMUM RATING

Parameter

Power Dissipation

Forward Current

Peak Forward Current (f=1kHz, DF=10%)

Lead Soldering Time at 260° C

Operating Temperature

Storage Temperature

=25°C)

GREEN

110

200

-40 to +100

ORANGE

110

200

-40 to +100

UNITS

sec

°C



2001 Fairchild Semiconductor Corporation

DS300013

2/27/01

1 OF 4

www.fairchildsemi.com

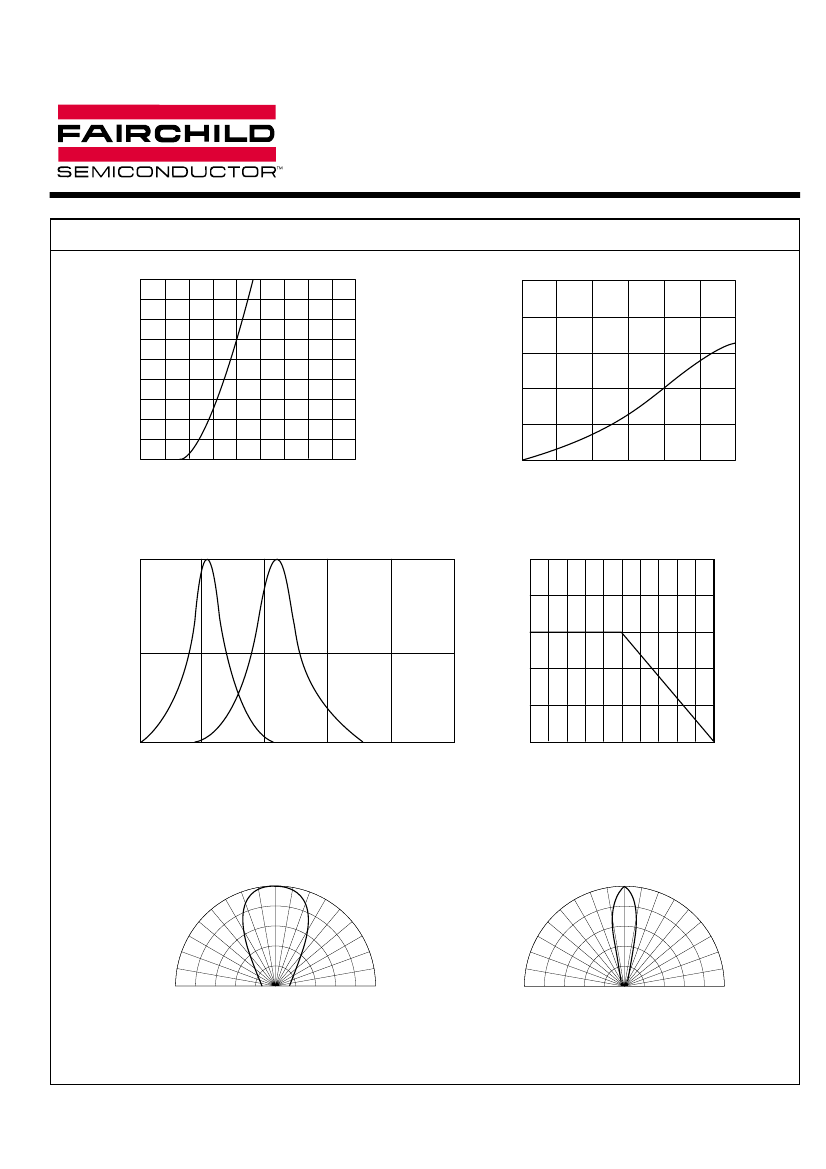

HLMP-D640 Related Products

	HLMP-D640	HLMP-D400	HLMP-D401	HLMP-D600
Description	T-13/4 (5 mm), T-1 (3 mm), Ultra-Bright LED Lamps	T-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm	T-1 3/4 SINGLE COLOR LED, ORANGE, 5 mm
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Fairchild	Fairchild	Fairchild	Fairchild
Reach Compliance Code	compliant	compli	compli	compli
color	PURE GREEN	SOFT ORANGE	SOFT ORANGE	PURE GREEN
color@wavelength	Green	Ambe	Ambe	Gree
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.04 A	0.04 A	0.04 A	0.04 A
Maximum forward voltage	3 V	3 V	3 V	3 V
Lens type	WATER CLEAR	DIFFUSED ORANGE	DIFFUSED ORANGE	DIFFUSED GREEN
Nominal luminous intensity	60.0 mcd	3.5 mcd	7.0 mcd	3.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	8.64 mm	8.64 mm	8.64 mm	8.64 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	560 nm	612 nm	612 nm	560 nm
shape	ROUND	ROUND	ROUND	ROUND
size	5 mm	5 mm	5 mm	5 mm
surface mount	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	24 deg	60 deg	60 deg	60 deg
Base Number Matches	1	1	1	1
