3915-2-17-1: DescriptionBoard Connector, 17 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size74KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric Compare View All

3915-2-17-1 Overview

Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking

3915-2-17-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.2 inch
subject depth	0.35 inch
body length	2.65 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
Manufacturer's serial number	3915
Plug contact pitch	0.156 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	125 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	7 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	3.9624 mm
Termination type	SOLDER
Total number of contacts	17
Base Number Matches	1

Preview

Download Datasheet

View All

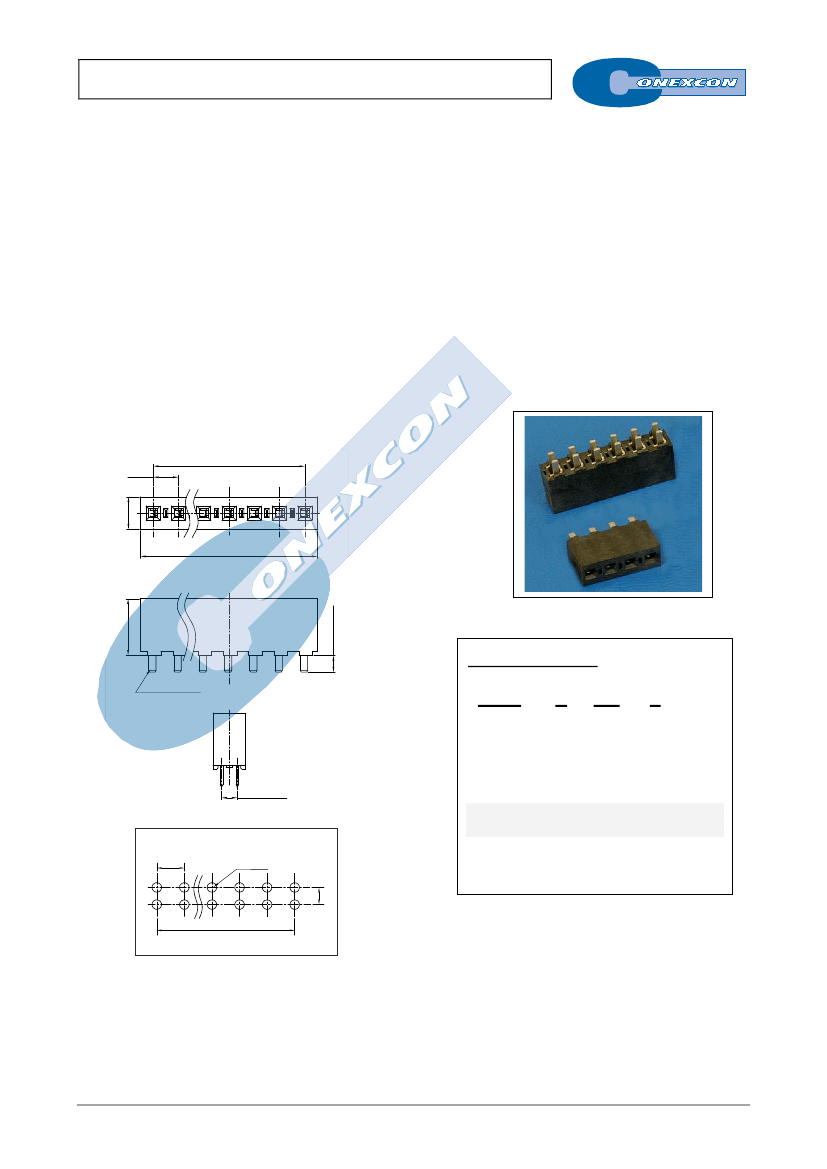

BOARD TO BOARD TOP ENTRY CONNECTOR

3915 SERIES.

3.96 mm (0.156”) pitch.

General Features

Electrical Features



Available in 2 through 24 circuits

Mates with 3.96 mm pin header 1.14 mm square/round

pin 3986, 3987, 3988, 3917, 3918, 3919 and 3920 Series

Box contact PCB female terminal



Voltage rating: < 250V

Current rating: < 7 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 1500 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features



Insulator: High temperature plastic UL 94 V-0

Contact: Tin plated phosphor bronze

Operating temperature: -25ºC to +125ºC

RoHS compliant



Insertion force receptacle/plug: < 0.70 Kgf/pin



Unmating force receptacle/plug: > 0.05 Kgf/pin



Durability: 50 cycles

Dimensional Information

A

3.96

5.08

B

2.60±0.15

8.89

Ordering Information:

1.14 x 0.40

3915 -

1

T-

2

XX-

3

1

1. Connector Series

2.46±0.10

2. (T) Contact Plating



T =

2.

Tin plated

Recommended Finish

RECOMMENDED HOLE PATTERN

3.96

ø 1.35

5.08

3. (XX) Number of circuits



Available in 2 through 24 circuits

A

Dimensions:

(In mm.)

A

= 3.96 x (XX*-1)

B

= 3.96 x (XX*)

* XX

(Number of circuits)

E-XX

FULL LINE CATALOGUE

3915-2-17-1 Related Products

	3915-2-17-1	3915-2-19-1	3915-2-02-1
Description	Board Connector, 17 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking	Board Connector, 19 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking	Board Connector, 2 Contact(s), 1 Row(s), Female, Straight, 0.156 inch Pitch, Solder Terminal, Locking
Is it Rohs certified?	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknown
body width	0.2 inch	0.2 inch	0.2 inch
subject depth	0.35 inch	0.35 inch	0.35 inch
body length	2.65 inch	2.962 inch	0.312 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN
Contact point gender	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V
Durability	50 Cycles	50 Cycles	50 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω
Manufacturer's serial number	3915	3915	3915
Plug contact pitch	0.156 inch	0.156 inch	0.156 inch
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
PCB row number	1	1	1
Number of rows loaded	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
Rated current (signal)	7 A	7 A	7 A
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.102 inch	0.102 inch	0.102 inch
Terminal pitch	3.9624 mm	3.9624 mm	3.9624 mm
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	17	19	2
Maker	Conexcon Group	-	Conexcon Group
Base Number Matches	1	1	-
