2505-52-02-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 2505-52-02-S

2505-52-02-S: DescriptionIC Socket, PLCC52, 52 Contact(s), Surface Mount; CategoryThe connector socket; File Size124KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric Compare View All

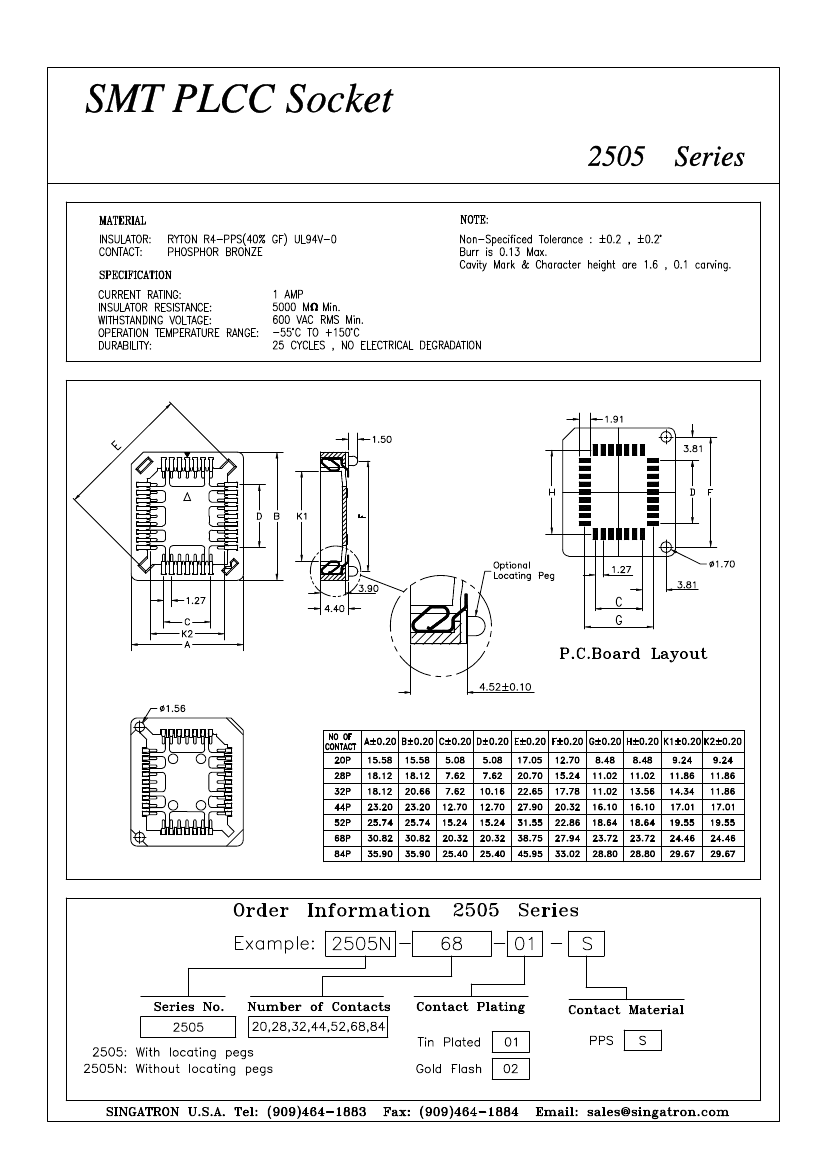

2505-52-02-S Overview

IC Socket, PLCC52, 52 Contact(s), Surface Mount

2505-52-02-S Parametric

Parameter Name	Attribute value
Maker	Singatron Enterprises Co
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	WITH LOCATING PEGS
body width	1.013 inch
subject depth	0.173 inch
body length	1.013 inch
Contact structure	13X13
Contact to complete cooperation	AU
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	PLCC52
Dielectric withstand voltage	600VAC V
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	5000000000 Ω
Manufacturer's serial number	2505
Installation method	STRAIGHT
Number of contacts	52
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Termination type	SURFACE MOUNT
Base Number Matches	1

Preview

Download Datasheet

View All

2505-52-02-S Related Products

	2505-52-02-S	2505-44-02-S	2505N-20-02-S	2505N-28-02-S	2505N-32-02-S	2505N-44-02-S	2505N-52-02-S	2505N-68-02-S	2505N-84-02-S	2505-28-02-S
Description	IC Socket, PLCC52, 52 Contact(s), Surface Mount	IC Socket, PLCC44, 44 Contact(s), Surface Mount	IC Socket, PLCC20, 20 Contact(s), Surface Mount	IC Socket, PLCC28, 28 Contact(s), Surface Mount	IC Socket, PLCC32, 32 Contact(s), Surface Mount	IC Socket, PLCC44, 44 Contact(s), Surface Mount	IC Socket, PLCC52, 52 Contact(s), Surface Mount	IC Socket, PLCC68, 68 Contact(s), Surface Mount	IC Socket, PLCC84, 84 Contact(s), Surface Mount	IC Socket, PLCC28, 28 Contact(s), Surface Mount
Reach Compliance Code	compliant	compliant	compli	compli	compli	compli	compli	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	WITH LOCATING PEGS	WITH LOCATING PEGS	WITHOUT LOCATING PEGS	WITHOUT LOCATING PEGS	WITHOUT LOCATING PEGS	WITHOUT LOCATING PEGS	WITHOUT LOCATING PEGS	WITHOUT LOCATING PEGS	WITHOUT LOCATING PEGS	WITH LOCATING PEGS
body width	1.013 inch	0.913 inch	0.613 inch	0.713 inch	0.713 inch	0.913 inch	1.013 inch	1.213 inch	1.413 inch	0.713 inch
subject depth	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch	0.173 inch
body length	1.013 inch	0.913 inch	0.613 inch	0.713 inch	0.813 inch	0.913 inch	1.013 inch	1.213 inch	1.413 inch	0.713 inch
Contact structure	13X13	11X11	5X5	7X7	7X9	11X11	13X13	17X17	21X21	7X7
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact material	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN	P-CUSN
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	PLCC52	PLCC44	PLCC20	PLCC28	PLCC32	PLCC44	PLCC52	PLCC68	PLCC84	PLCC28
Dielectric withstand voltage	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V	600VAC V
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	2505	2505	2505	2505	2505	2505	2505	2505	2505	2505
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	52	44	20	28	32	44	52	68	84	28
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maker	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	Singatron Enterprises Co	-
