32CTQ030S: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 30V V(RRM), Silicon, PLASTIC, D2PAK-3; CategoryDiscrete semiconductor diode; File Size312KB，5 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

32CTQ030S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	32CTQ030S	-	-	View	Buy Now

32CTQ030S Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 30V V(RRM), Silicon, PLASTIC, D2PAK-3

32CTQ030S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Parts packaging code	TO-263
package instruction	R-PSSO-G2
Contacts	3
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY, FREE WHEELING DIODE
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.4 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e0
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	300 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	30 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	30 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

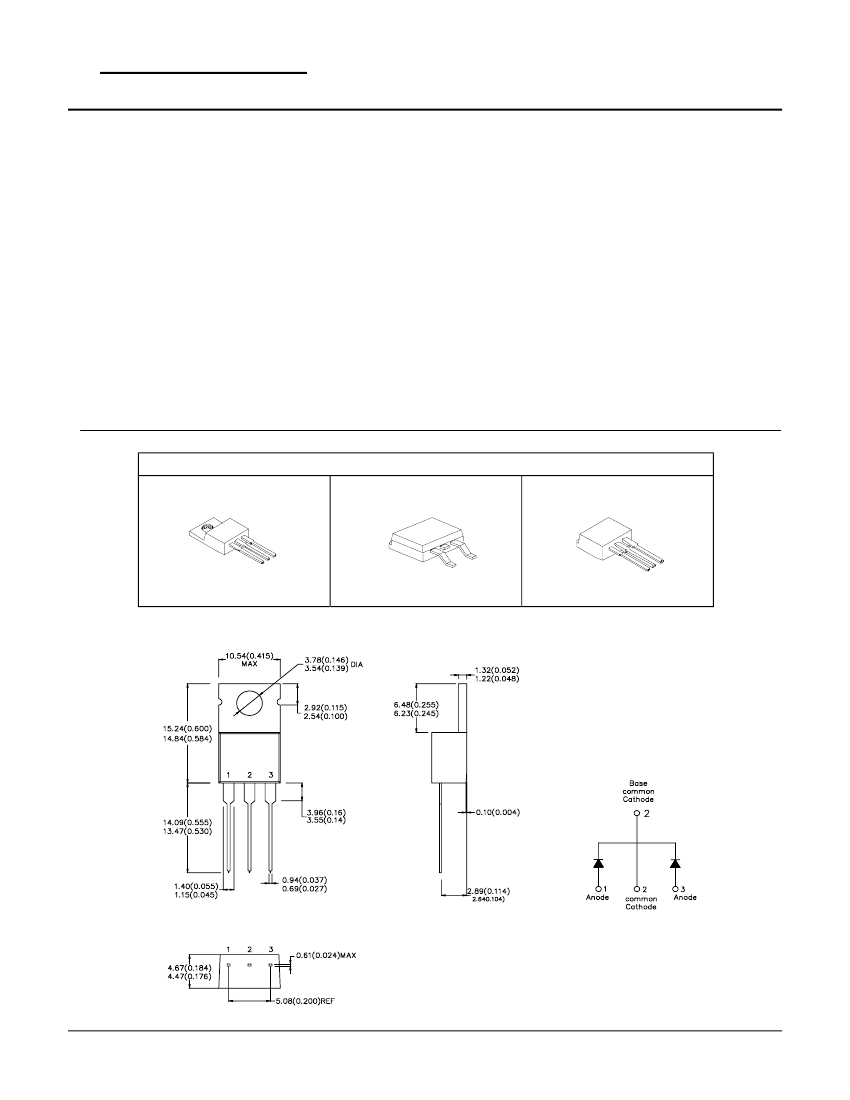

Technical Data

Data Sheet

2903,

Rev. A

•

s • • d • ! "#

•

$%&'

•

(

# #

•

) *# + ## ( # *# # #

* #

(, #

•

-# ( # # * #"

.# # * / 0 **

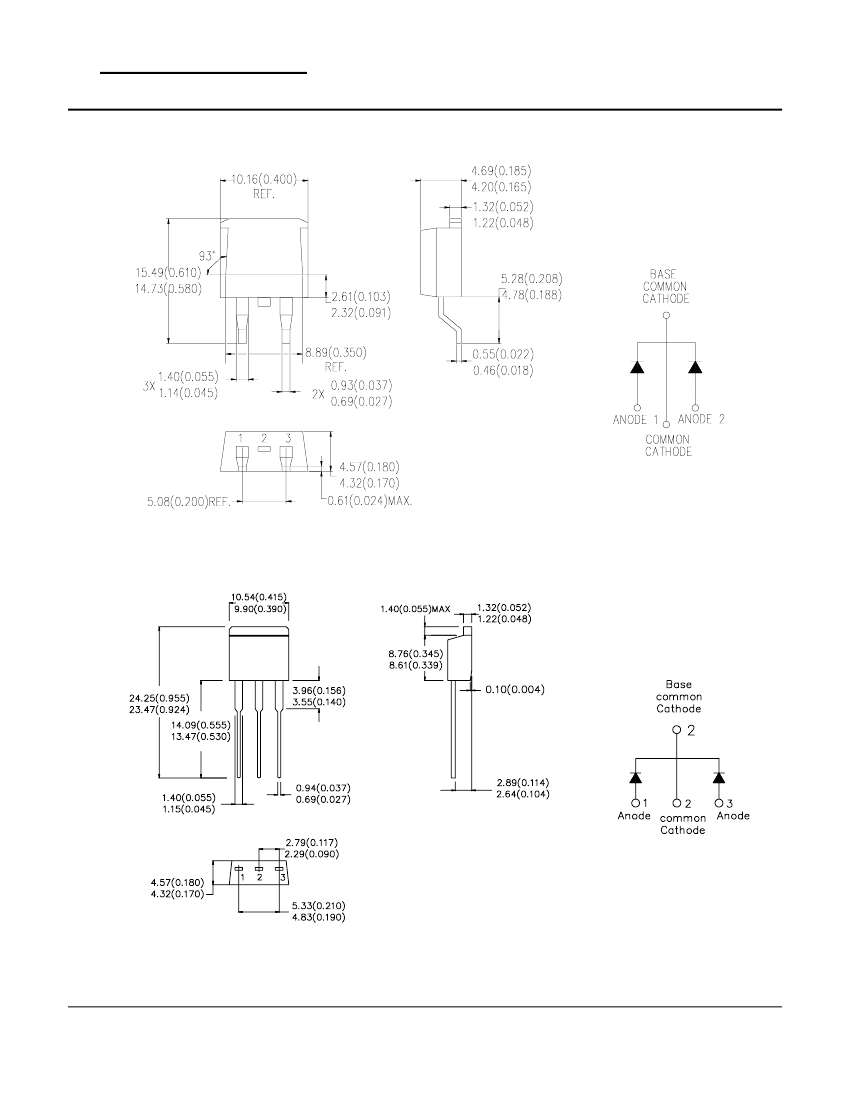

TO-220AB

•

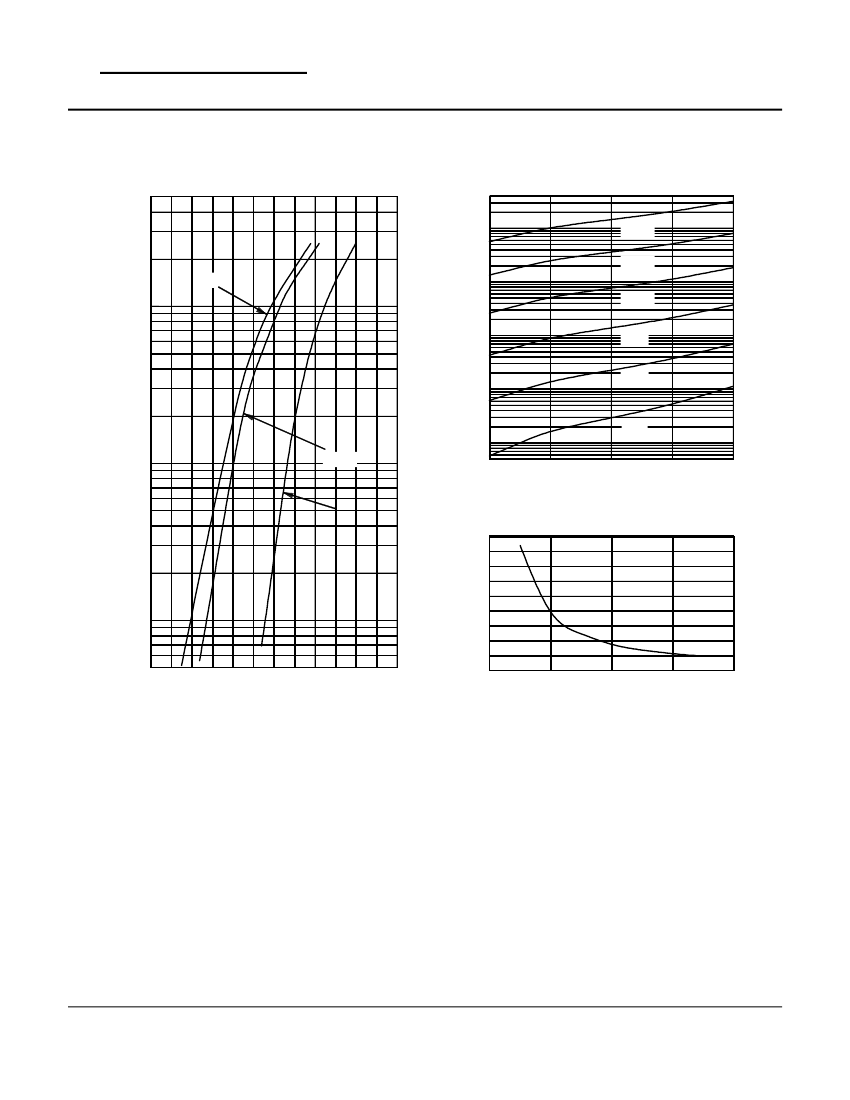

!631

!"#631•

•

$ % &'%()*++,,,- %

-./•01%$"

$2 %

-./•

SENSITRON

SEMICONDUCTOR

Data Sheet

2903,

Rev. A

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior not ice to improve

product characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest

version of the datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during

operation of the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual

property claims or any other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from

use at a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed writ ten permission of

Sensitron Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will

hinder maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third

party. When exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and

regulations.

•

221 West Industry Court

Deer Park, NY 11729-4681

(631) 586-7600 FAX (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•

32CTQ030S Related Products

	32CTQ030S	32CTQ030
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 30V V(RRM), Silicon, PLASTIC, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 30A, 30V V(RRM), Silicon, TO-220AB, PLASTIC PACKAGE-3
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	TO-263	TO-220AB
package instruction	R-PSSO-G2	PLASTIC PACKAGE-3
Contacts	3	3
Reach Compliance Code	compliant	compliant
Other features	HIGH RELIABILITY, FREE WHEELING DIODE	HIGH RELIABILITY, FREE WHEELING DIODE
application	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.4 V	0.4 V
JESD-30 code	R-PSSO-G2	R-PSFM-T3
JESD-609 code	e0	e0
Humidity sensitivity level	1	1
Maximum non-repetitive peak forward current	300 A	300 A
Number of components	2	2
Phase	1	1
Number of terminals	2	3
Maximum operating temperature	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C
Maximum output current	30 A	30 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	30 V	30 V
surface mount	YES	NO
technology	SCHOTTKY	SCHOTTKY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Base Number Matches	1	1
