5962R9580401VEC datasheet, PDF

Datasheet> All Categories > logic> logic> 5962R9580401VEC

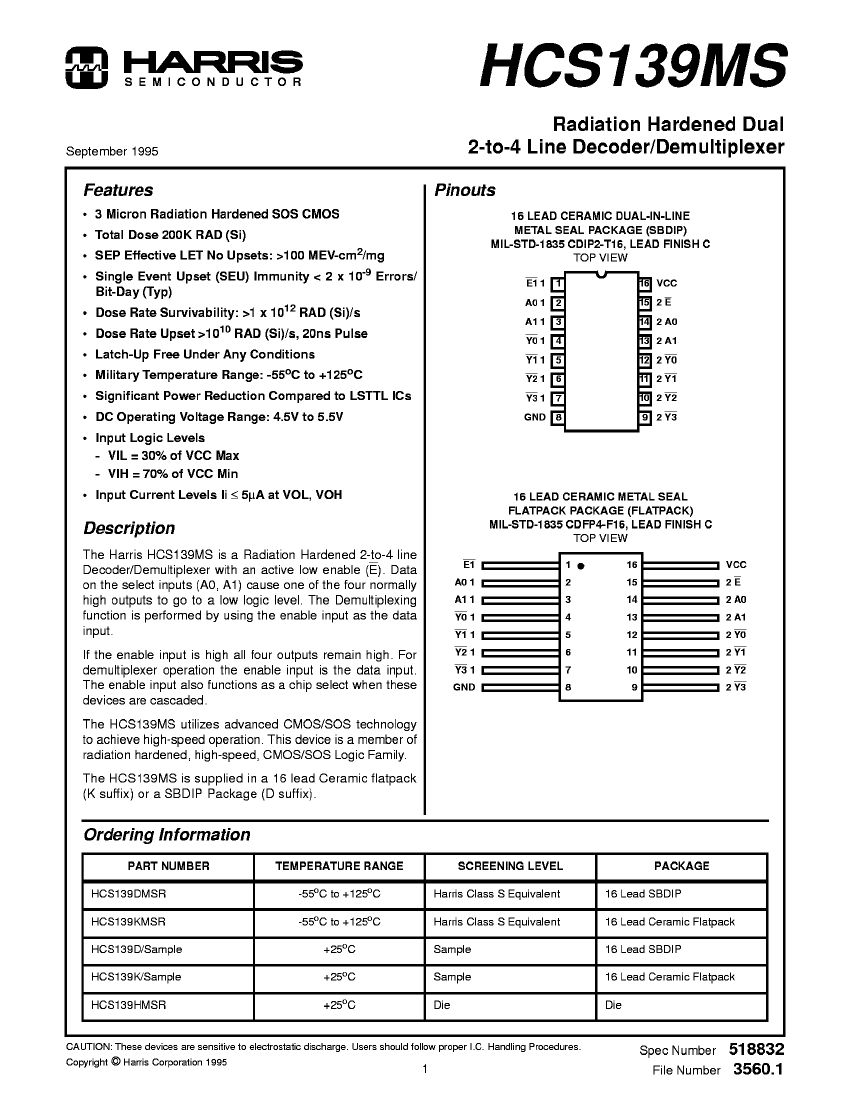

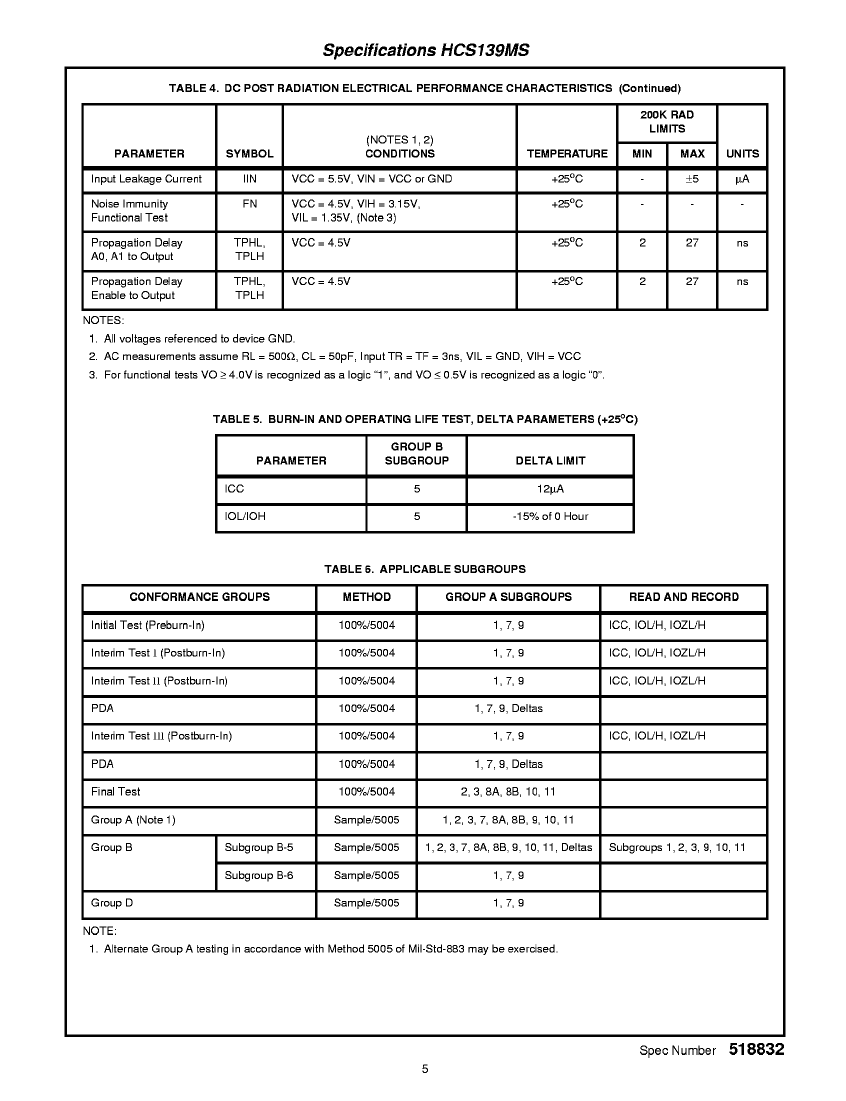

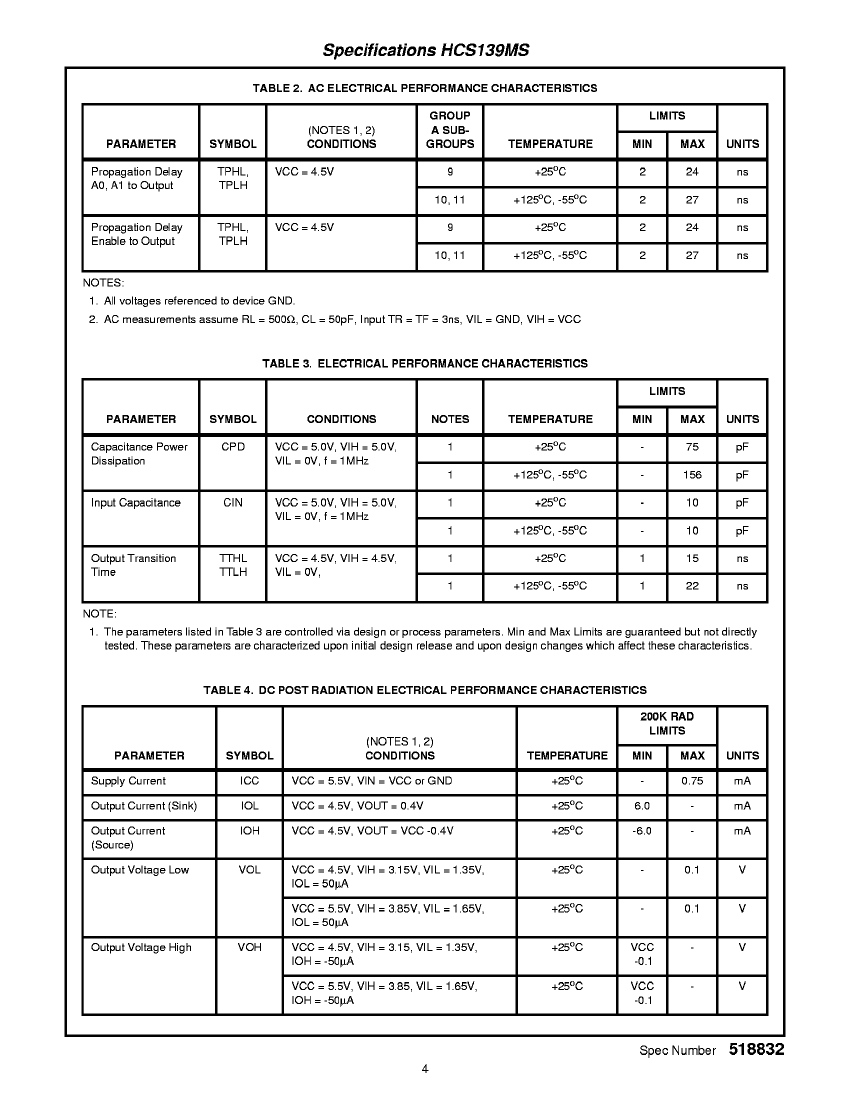

5962R9580401VEC: DescriptionDecoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16; Categorylogic logic; File Size231KB，9 Pages; ManufacturerHarris; Websitehttp://www.harris.com/

Download Datasheet Parametric Compare View All

5962R9580401VEC Overview

Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16

5962R9580401VEC Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
series	HC/UH
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
Load capacitance (CL)	50 pF
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	IN-LINE
propagation delay (tpd)	27 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal location	DUAL
total dose	100k Rad(Si) V
Base Number Matches	1

Preview

Download Datasheet

View All

5962R9580401VEC Related Products

	5962R9580401VEC	HCS139DMSR	HCS139K/SAMPLE	HCS139D/SAMPLE	5962R9580401VXC	HCS139HMSR
Description	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDFP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDIP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS, CDFP16	Decoder/Driver, HC/UH Series, Inverted Output, CMOS
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
series	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	R-CDIP-T16	R-CDIP-T16	R-CDFP-F16	R-CDIP-T16	R-CDFP-F16	X-XUUC-N16
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Number of functions	2	2	2	2	2	2
Number of terminals	16	16	16	16	16	16
Output polarity	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	UNSPECIFIED
Package form	IN-LINE	IN-LINE	FLATPACK	IN-LINE	FLATPACK	UNCASED CHIP
propagation delay (tpd)	27 ns	27 ns	27 ns	27 ns	27 ns	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	YES	NO	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	FLAT	THROUGH-HOLE	FLAT	NO LEAD
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	UPPER
Maximum operating temperature	125 °C	125 °C	-	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-	-55 °C	-55 °C
Temperature level	MILITARY	MILITARY	-	-	MILITARY	MILITARY
Base Number Matches	1	1	1	1	1	-
Maker	-	Harris	Harris	Harris	-	Harris
