583864-5 datasheet, PDF - EEWORLD Datasheet

583864-5: Description30 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN; CategoryThe connector The connector; File Size235KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

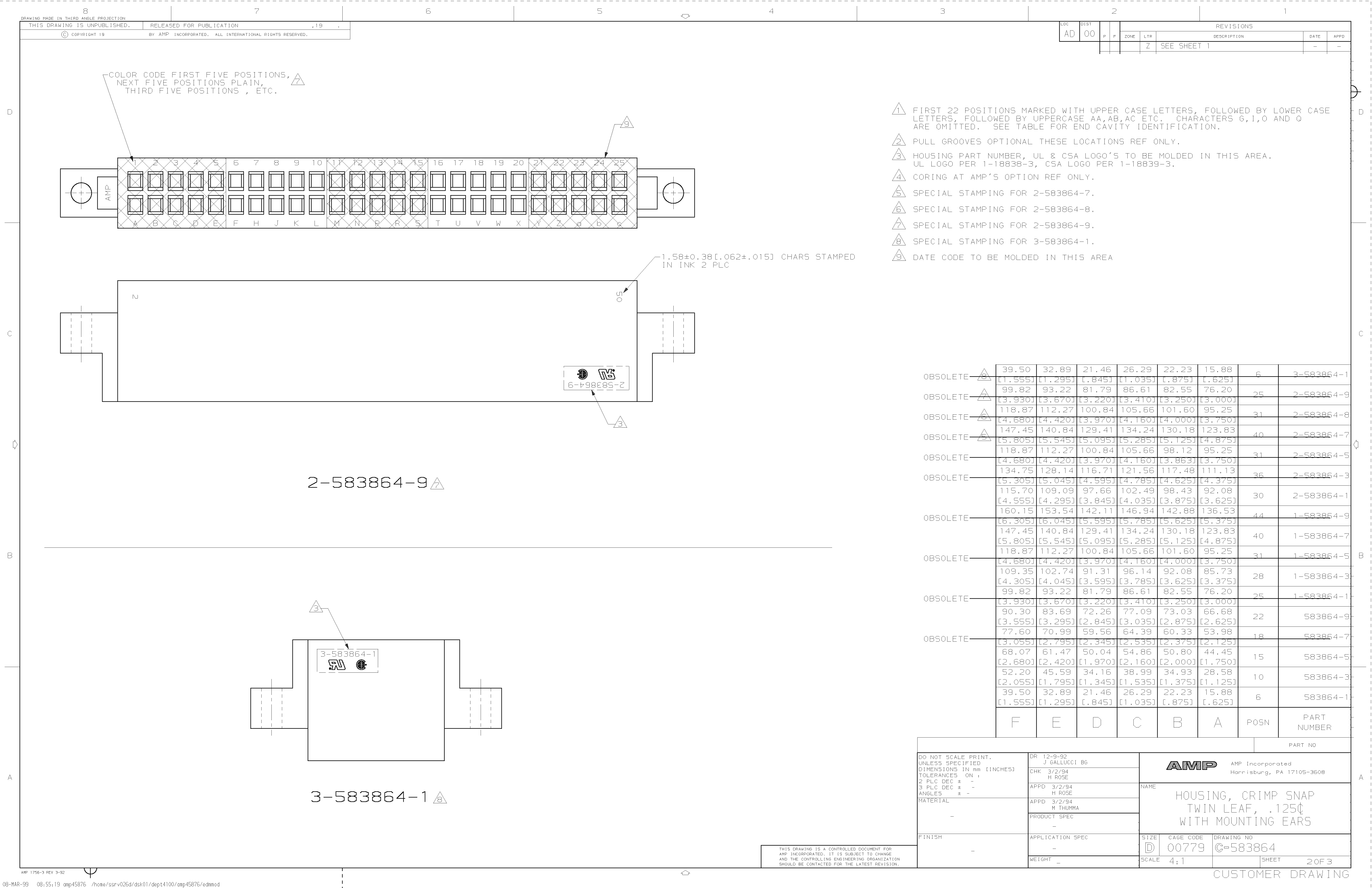

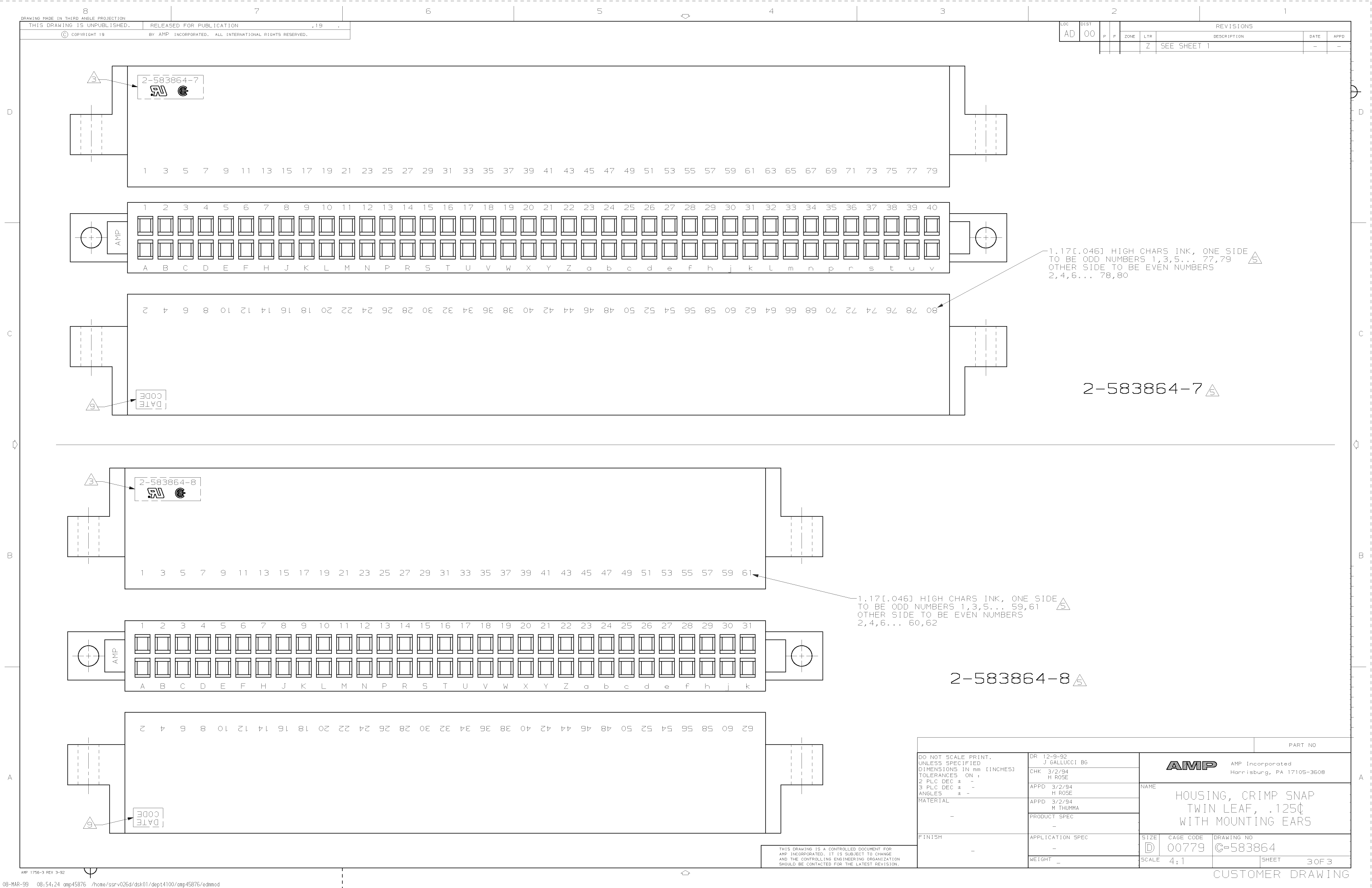

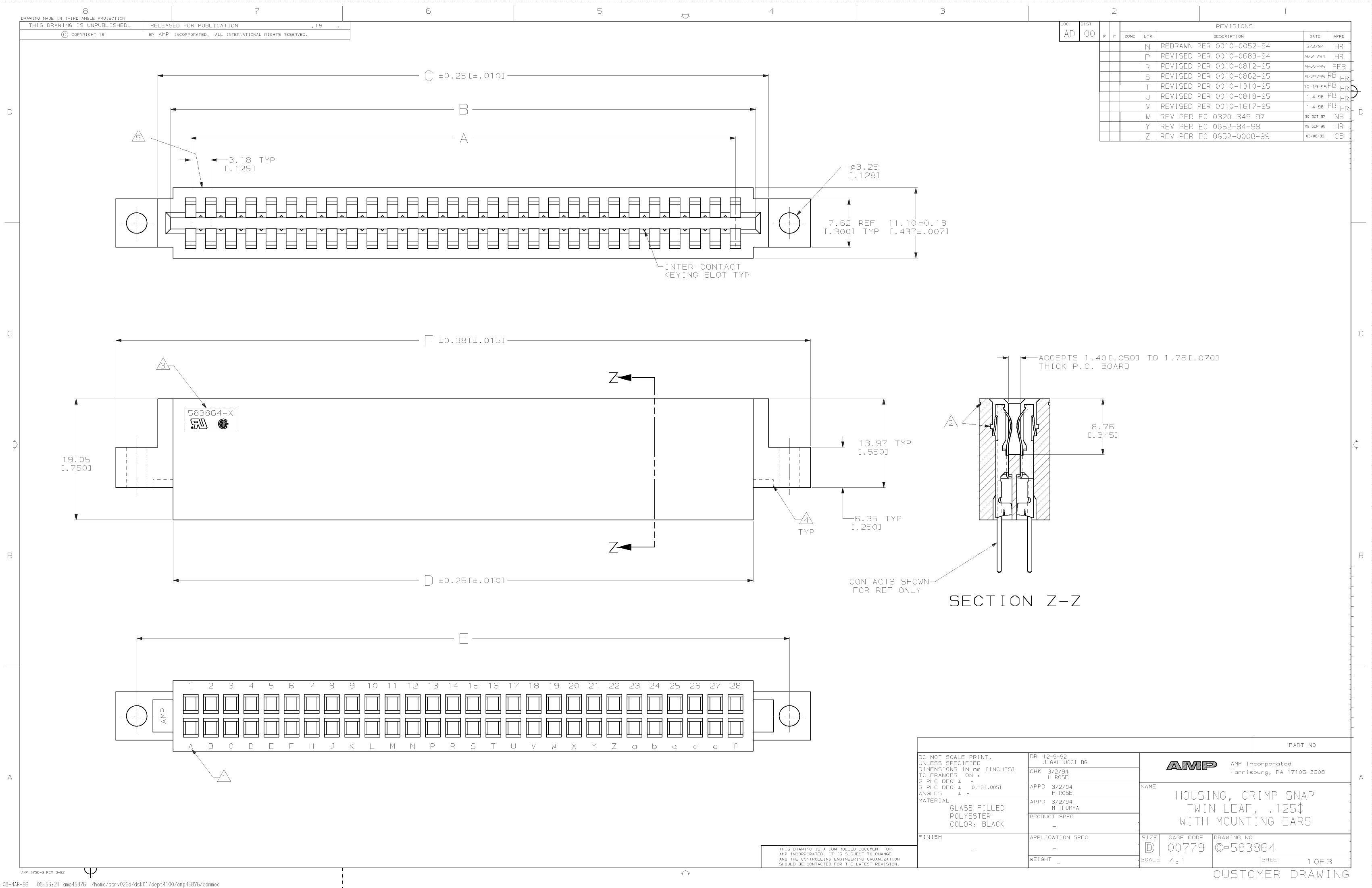

583864-5 Overview

30 CONTACT(S), FEMALE, SINGLE PART CARD EDGE CONN

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COMPATIBLE CONTACTS: 583616-4; 583616-2; 583616-5; 583616-3; 583616-9
Board mount options	MOUNTING FLANGE
body width	0.437 inch
subject depth	0.75 inch
body length	2.68 inch
Connector type	CARD EDGE CONNECTOR
Contact point gender	FEMALE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	1000VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	2.78 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
MIL compliance	NO
Manufacturer's serial number	583864
Plug contact pitch	0.125 inch
Mixed contacts	NO
Installation type	BOARD
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	3.18 mm
Total number of contacts	30
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1
