BUS-65612-883B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> BUS-65612-883B

BUS-65612-883B: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA121, PGA-121; CategoryThe embedded processor and controller Microcontrollers and processors; File Size94KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

BUS-65612-883B Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA121, PGA-121

BUS-65612-883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	PGA
package instruction	PGA, PGA120,13X13
Contacts	121
Reach Compliance Code	unknown
Other features	DMA HANDSHAKING FOR SUBSYSTEM MESSAGE TRANSFERS
boundary scan	NO
maximum clock frequency	16 MHz
letter of agreement	MIL-STD-1553
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	17
JESD-30 code	S-CPGA-P121
JESD-609 code	e0
length	33.528 mm
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	121
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA
Encapsulate equivalent code	PGA120,13X13
Package shape	SQUARE
Package form	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
RAM (number of words)	0
Filter level	38535Q/M;38534H;883B
Maximum seat height	4.7498 mm
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED
width	33.528 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1

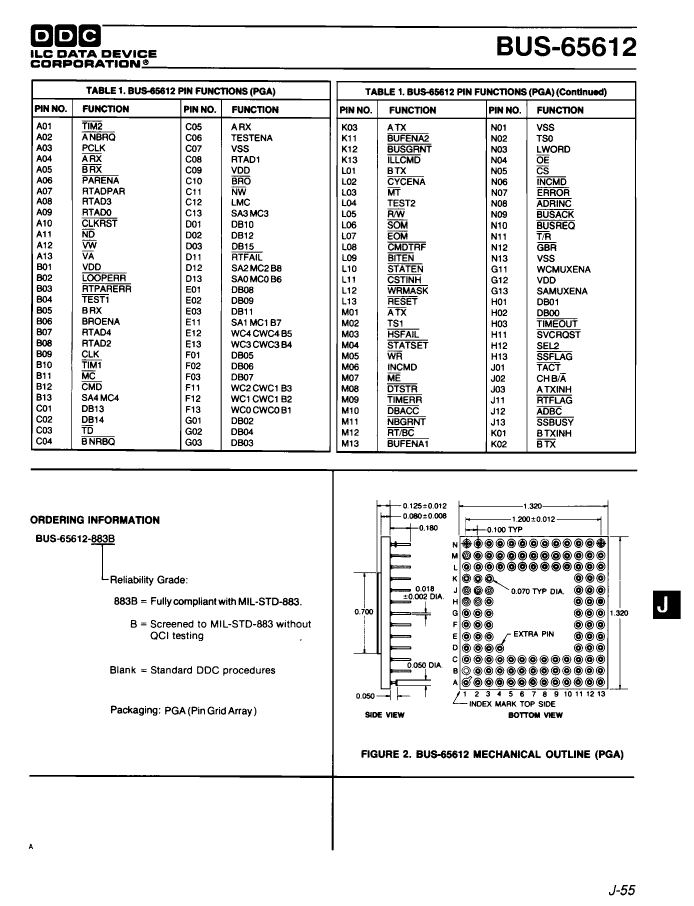

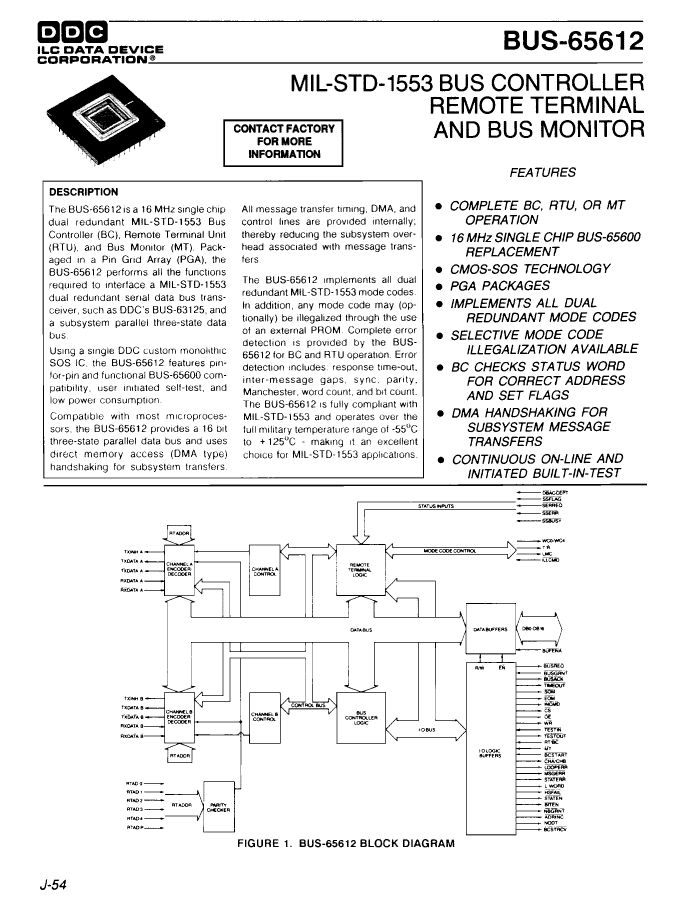

Preview

Download Datasheet

View All

BUS-65612-883B Related Products

	BUS-65612-883B	BUS-65612	BUS-65612-B
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA121, PGA-121	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA121, PGA-121	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS, CPGA121, PGA-121
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation
Parts packaging code	PGA	PGA	PGA
package instruction	PGA, PGA120,13X13	PGA, PGA120,13X13	PGA-121
Contacts	121	121	121
Reach Compliance Code	unknown	unknown	unknown
Other features	DMA HANDSHAKING FOR SUBSYSTEM MESSAGE TRANSFERS	DMA HANDSHAKING FOR SUBSYSTEM MESSAGE TRANSFERS	DMA HANDSHAKING FOR SUBSYSTEM MESSAGE TRANSFERS
boundary scan	NO	NO	NO
maximum clock frequency	16 MHz	16 MHz	16 MHz
letter of agreement	MIL-STD-1553	MIL-STD-1553	MIL-STD-1553
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	17	17	17
JESD-30 code	S-CPGA-P121	S-CPGA-P121	S-CPGA-P121
JESD-609 code	e0	e0	e0
length	33.528 mm	33.528 mm	33.528 mm
Number of serial I/Os	2	2	2
Number of terminals	121	121	121
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	PGA	PGA	PGA
Encapsulate equivalent code	PGA120,13X13	PGA120,13X13	PGA120,13X13
Package shape	SQUARE	SQUARE	SQUARE
Package form	GRID ARRAY	GRID ARRAY	GRID ARRAY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.7498 mm	4.7498 mm	4.7498 mm
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	PERPENDICULAR	PERPENDICULAR	PERPENDICULAR
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	33.528 mm	33.528 mm	33.528 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
Base Number Matches	1	1	1
Filter level	38535Q/M;38534H;883B	-	MIL-STD-883 Class B (Modified)
