ADC87U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> ADC87U

ADC87U: DescriptionA/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,; CategoryAnalog mixed-signal IC converter; File Size603KB，14 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

ADC87U Overview

A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,

ADC87U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	DIP, DIP32,.9
Reach Compliance Code	unknow
Maximum analog input voltage	10 V
Converter type	A/D CONVERTER
JESD-30 code	R-MDIP-T32
JESD-609 code	e0
Number of analog input channels	1
Number of digits	12
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output bit code	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY
Output format	SERIAL, PARALLEL, WORD
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.9
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-15 V
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

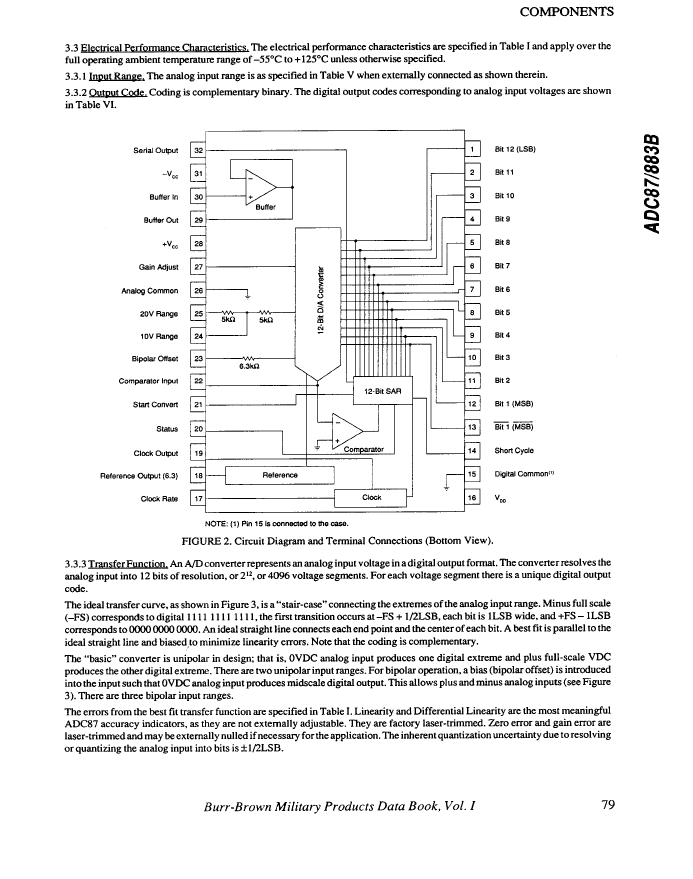

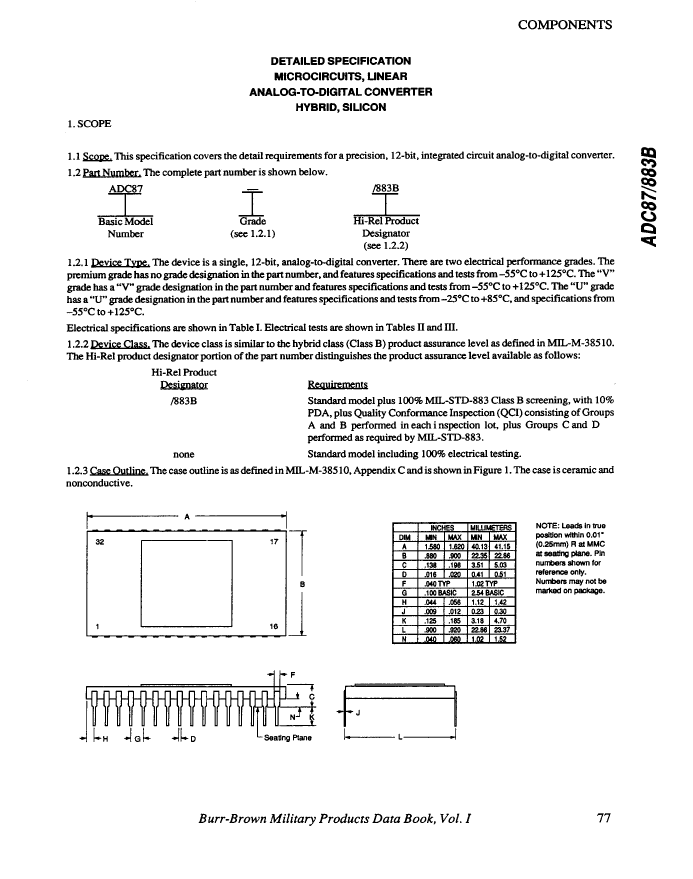

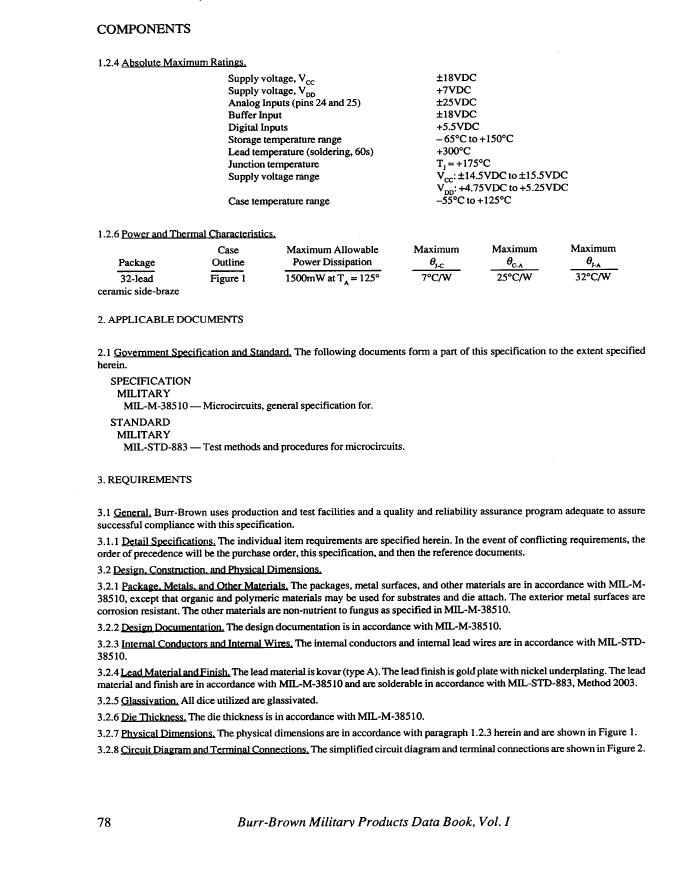

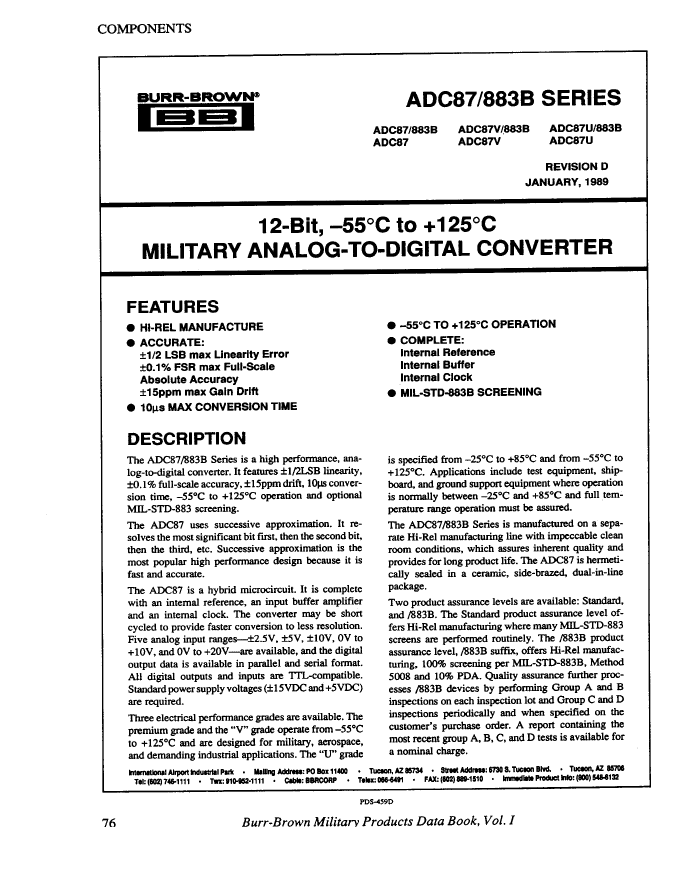

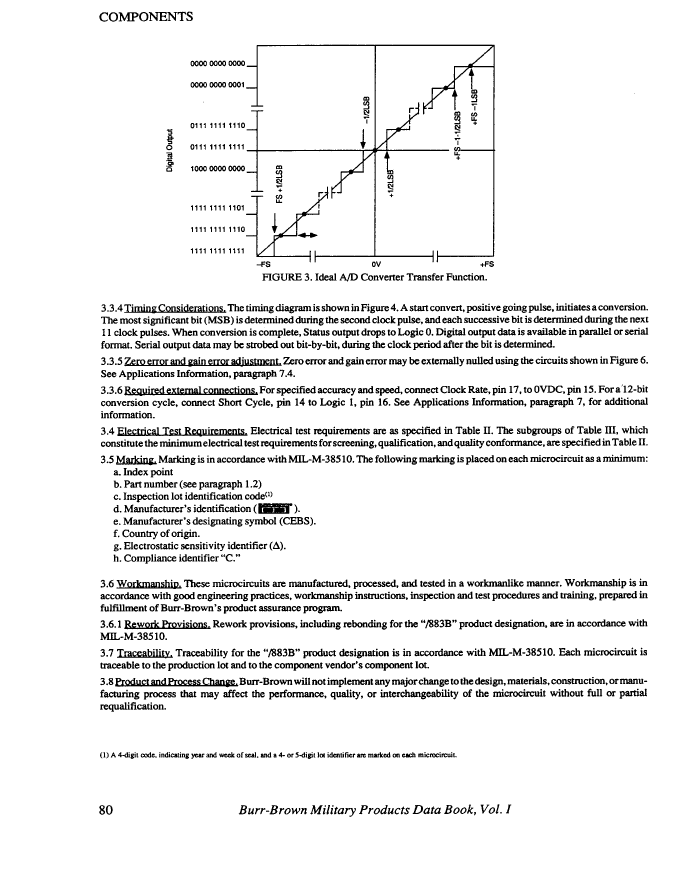

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

ADC87U Related Products

	ADC87U	ADC87U/883B	ADC87	ADC87/883B	ADC87V	ADC87V/883B
Description	A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,	A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,	A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,	A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,	A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,	A/D Converter, 12-Bit, 1 Func, Hybrid, MDIP32,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	unknow	unknow	unknown	unknown	unknown
Maximum analog input voltage	10 V	10 V	10 V	10 V	10 V	10 V
Converter type	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER	A/D CONVERTER
JESD-30 code	R-MDIP-T32	R-MDIP-T32	R-MDIP-T32	R-MDIP-T32	R-MDIP-T32	R-MDIP-T32
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	32	32	32	32	32	32
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output bit code	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY	COMPLEMENTARY 2'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY	COMPLEMENTARY 2\'S COMPLEMENT, COMPLEMENTARY OFFSET BINARY, COMPLEMENTARY BINARY
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.9	DIP32,.9	DIP32,.9	DIP32,.9	DIP32,.9	DIP32,.9
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
power supply	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
package instruction	DIP, DIP32,.9	-	-	DIP, DIP32,.9	DIP, DIP32,.9	DIP, DIP32,.9
Maximum linear error (EL)	-	-	0.02%	0.02%	0.02%	0.02%
