M54HC153F1R datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M54HC153F1R

M54HC153F1R: DescriptionHC253 DUAL 4 CHANNEL MULTIPLEXER 3 STATE OUTPUT HC153 DUAL 4 CHANNEL MULTIPLEXER; Categorylogic logic; File Size245KB，12 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric View All

M54HC153F1R Overview

HC253 DUAL 4 CHANNEL MULTIPLEXER 3 STATE OUTPUT HC153 DUAL 4 CHANNEL MULTIPLEXER

M54HC153F1R Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	_compli
series	HC/UH
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.304 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MULTIPLEXER
MaximumI(ol)	0.004 A
Number of functions	2
Number of entries	4
Output times	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
Prop。Delay @ Nom-Su	45 ns
propagation delay (tpd)	45 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

Preview

Download Datasheet

View All

M54HC153/253

M74HC153/253

HC153 DUAL 4 CHANNEL MULTIPLEXER

HC253 DUAL 4 CHANNEL MULTIPLEXER 3 STATE OUTPUT

HIGH SPEED

= 12 ns (TYP.) at V

= 5 V

LOW POWER DISSIPATION

= 4

µA

(MAX.) at T

= 25

°C

HIGH NOISE IMMUNITY

NIH

= V

NIL

= 28 % V

(MIN.)

OUTPUT DRIVE CAPABILITY

10 LSTTL LOADS

SYMMETRICAL OUTPUT IMPEDANCE

I



= I

= 4 mA (MIN.)

BALANCED PROPAGATION DELAYS

PLH

= t

PHL

WIDE OPERATING VOLTAGE RANGE

(OPR) = 2 V to 6 V

PIN AND FUNCTION COMPATIBLE WITH

54/74LS153/253

B1R

(Plastic Package)

F1R

(Ceramic Package)

M1R

(Micro Package)

C1R

(Chip Carrier)

ORDER CODES :

M54HCXXXF1R

M74HCXXXM1R

M74HCXXXB1R

M74HCXXXC1R

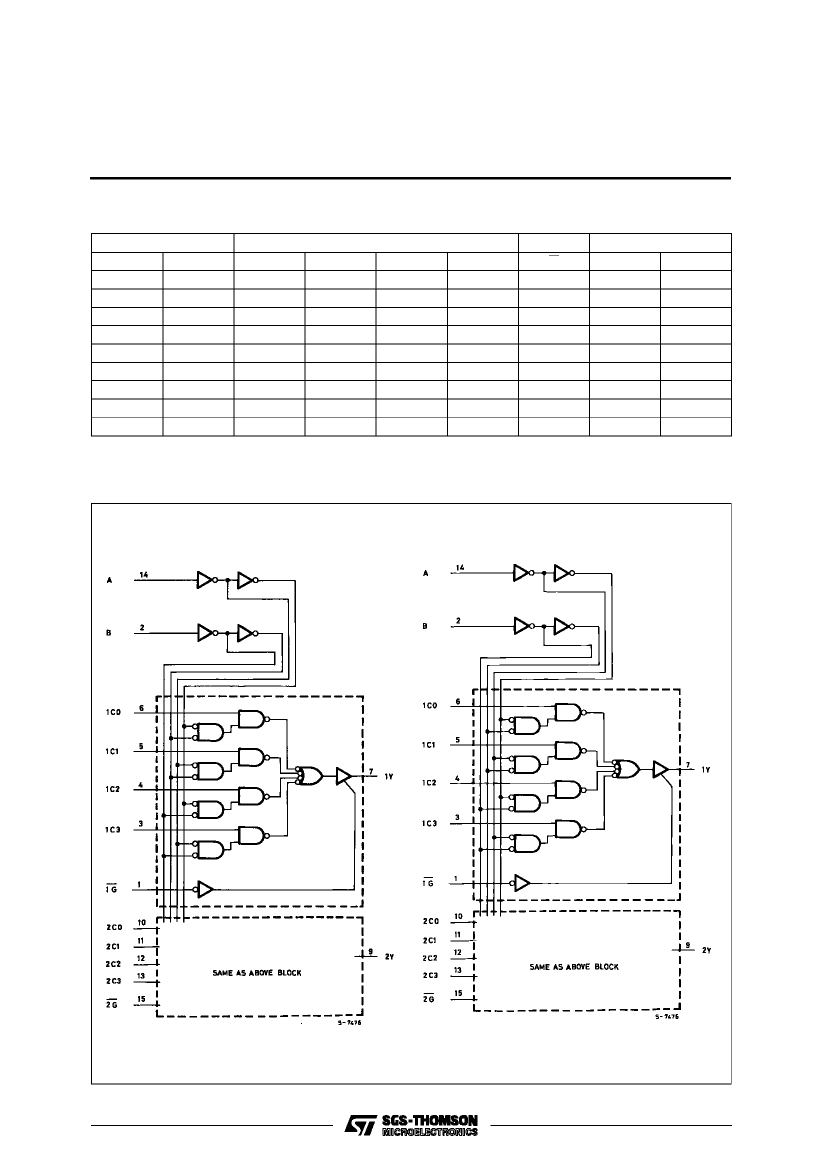

PIN CONNECTIONS

(top view)

DESCRIPTION

The M54/74HC153 and M54/74HC253 are high

speed CMOS DUAL 4-CHANNEL MULTIPLEXERS

fabricated with silicon gate C

MOS technology.

Both achieve high speed operation, similar to equi-

valent LSTTL, while maintaining the CMOS low

power dissipation.

The designer has a choice of complementary output

(HC153) and 3-state output (HC253).

Each of these data (1C0-1C3, 2C0-2C3) is selected

by the two address inputs A and B.

Separate strobe inputs (1G, 2G) are provided for

each of the two four-line sections. The strobe input

(G) can be used to inhibit the data output ; the output

of HC 153 is fixed at a low level and the output of

HC253 is a high impedance, while the strobe input

is held low.

All inputs are equipped with protection circuits

against static discharge and transient excess volt-

age.

January 1993

NC =

No Internal

Connection

1/12
