50225C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 50225C

50225C: DescriptionData Line Filter, 2 Function(s), 0.5A, ROHS COMPLIANT PACKAGE-4; CategoryAnalog mixed-signal IC filter; File Size567KB，3 Pages; ManufacturerC&D; Environmental Compliance

Download Datasheet Parametric Compare View All

50225C Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	50225C	-	-	View	Buy Now

50225C Overview

Data Line Filter, 2 Function(s), 0.5A, ROHS COMPLIANT PACKAGE-4

50225C Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&D
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum DC resistance	0.4 Ω
filter type	DATA LINE FILTER
high	3.6 mm
inductance	2200 µH
length	7 mm
Manufacturer's serial number	5000
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
physical size	L7.0XB5.9XH3.6 (mm)/L0.276XB0.232XH0.142 (inch)
Rated current	0.5 A
width	5.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

POWER ELECTRONICS DIVISION

5000 Series

Surface Mount Common Mode Chokes

SELECTION GUIDE

Order Code

50474C

50105C

50225C

50475C

Inductance, L

(0.1V @ 100kHz)

Nom.

Tolerance

0.47

1.00

4.70

+50%/-30%

Leakage Inductance, L

(0.1V @ 100kHz)

Typ.

Max.

µH

0.5

0.4

0.40

0.60

0.80

DC Resistance,

Current

Rating

Max.

0.30

0.40

0.70

700

500

400

Isolation

Vrms

500

FEATURES



RoHS compliant



0.47mH to 4.7mH



Surface mount



Up to 0.7A I



UL94 V-0 package materials



Compact size



J-STD-00C reﬂow

ABSOLUTE MAXIMUM RATINGS

Operating free air temperature range

Storage temperature range

All specifications typical at T

=5°C

1 Measured between pins 1-4 or -3

-40°C to 85°C

-40°C to 15°C

RoHS COMPLIANCE INFORMATION

This series is compatible with RoHS soldering systems. Surface mount products can withstand

a peak temperature of 50°C. The pin termination finish on this product series is pure tin dip. All

types are backward compatible with Sn/Pb soldering systems.

For further information, please visit:

www.cd4power.com/rohs

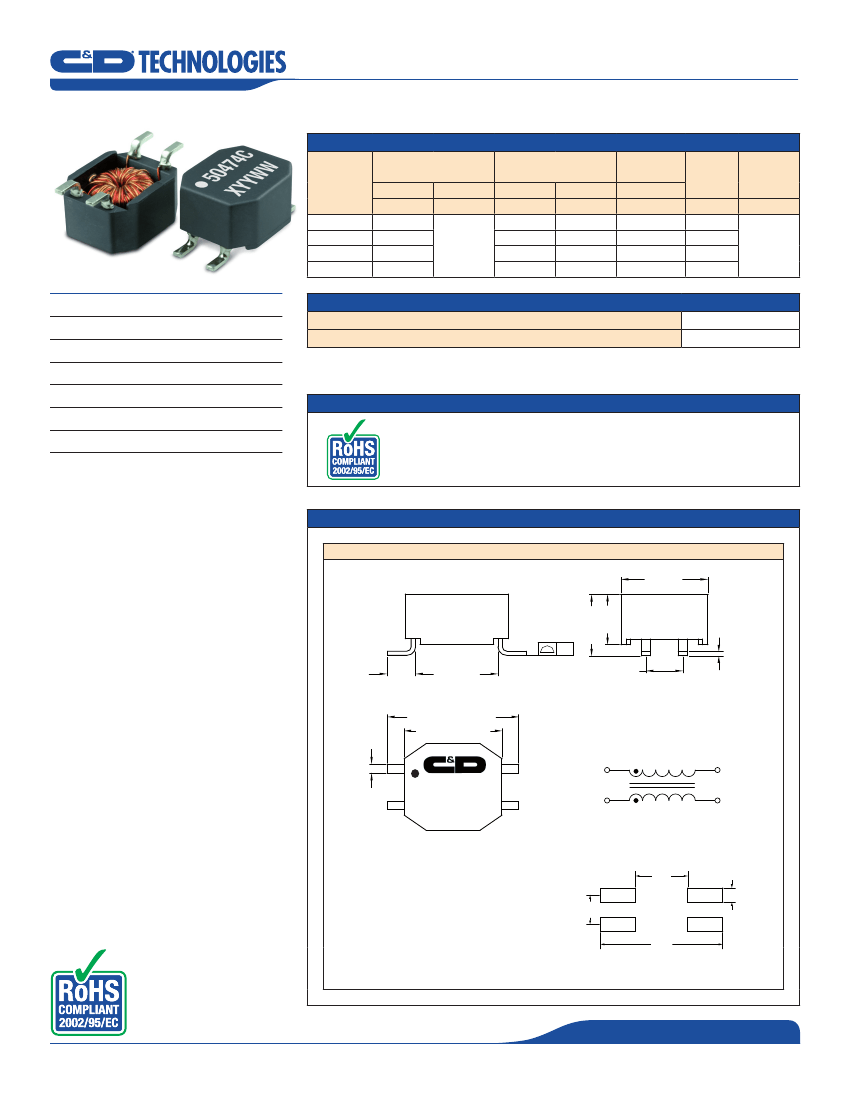

PRODUCT OVERVIEW

The 5000 series is a range of surface-mount

common mode chokes designed to attenuate

up to 100MHz common mode noise where line

filtering is required, such as low current switching

power supplies and telecom applications.

9.3±0.2 (0.366±0.008)

7.0±0.2 (0.276±0.008)

PACKAGE SPECIFICATIONS

Mechanical Dimensions

0.6±0.1 (0.024±0.004)

9.3±0.2 (0.366±0.008)

7.0±0.2 (0.276±0.008)

5.9 (0.232)

3.6±0.2

(0.142±0.008)

3.6±0.2

(0.142±0.008)

50XXXC

XYYWW

4.4 (0.173)

5.9 (0.232)

4.4 (0.173)

0.4±0.1

(0.016 ±0.004)

5.9 (0.232)

3.6±0.2

(0.142±0.008)

2.5 (0.098)

0.4±0.1

(0.016 ±0.004)

1.9

(0.075)

5.6

0.6±0.1 (0.024±0.004)

50XXXC

XYYWW

4.4 (0.173)

0.15

1.9

0.4±0.1

(0.075)

(0.016 ±0.004) 5.6 (0.220)

4 surfaces

2.5 (0.098)

1.9

9.3±0.2 (0.366±0.008)

(0.075)

5.6 (0.220)

7.0±0.2 (0.276±0.008)

0.15

4 surfaces

Schematic

0.6±0.1 (0.024±0.004)

50XXXC

XYYWW

Recommended Footprint Details

4.5

(0.177)

1.2 (0.047)

Unless otherwise stated, all dimensions in mm (inches) ±0.5 (0.010).

Package weight 0.30g Typ.

2.5

(0.098)

10.5

(0.413)

MAGNETIC

PRODUCTS

www.cd4power.com

KMP_5000C_A01

Page 1 of 3

50225C Related Products

	50225C	50474C	50475C	50105C
Description	Data Line Filter, 2 Function(s), 0.5A, ROHS COMPLIANT PACKAGE-4	Data Line Filter, 2 Function(s), 0.7A, ROHS COMPLIANT PACKAGE-4	Data Line Filter, 2 Function(s), 0.4A, ROHS COMPLIANT PACKAGE-4	Data Line Filter, 2 Function(s), 0.7A, ROHS COMPLIANT PACKAGE-4
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	C&D	C&D	C&D	C&D
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	0.4 Ω	0.3 Ω	0.7 Ω	0.3 Ω
filter type	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER	DATA LINE FILTER
high	3.6 mm	3.6 mm	3.6 mm	3.6 mm
inductance	2200 µH	470 µH	4700 µH	1000 µH
length	7 mm	7 mm	7 mm	7 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L7.0XB5.9XH3.6 (mm)/L0.276XB0.232XH0.142 (inch)	L7.0XB5.9XH3.6 (mm)/L0.276XB0.232XH0.142 (inch)	L7.0XB5.9XH3.6 (mm)/L0.276XB0.232XH0.142 (inch)	L7.0XB5.9XH3.6 (mm)/L0.276XB0.232XH0.142 (inch)
Rated current	0.5 A	0.7 A	0.4 A	0.7 A
width	5.9 mm	5.9 mm	5.9 mm	5.9 mm
Base Number Matches	1	1	1	1
Manufacturer's serial number	5000	5000	5000	-
