3-1437061-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1437061-1

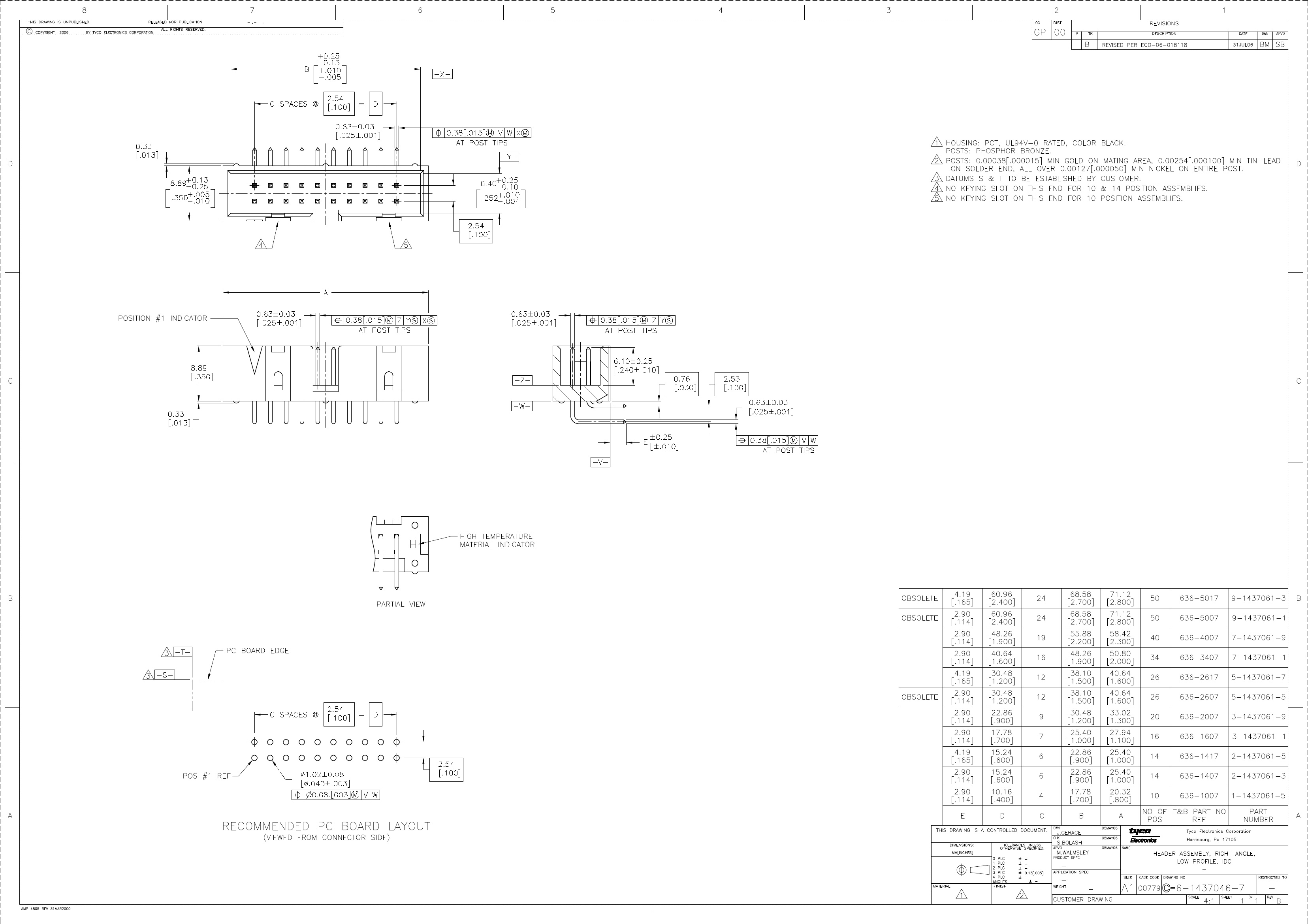

3-1437061-1: Description16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER; CategoryThe connector The connector; File Size181KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-1437061-1 Overview

16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER

3-1437061-1 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Other features	LOW PROFILE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	1437061
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	IDC/SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

3-1437061-1 Related Products

	3-1437061-1	3-1437061-9	5-1437061-5	7-1437061-1	7-1437061-9	PWR263S-20-6802J	9-1437061-1	2-1437061-3
Description	16 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER	20 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER	26 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER	34 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER	40 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER	Fixed Resistor, Metal Glaze/thick Film, 20W, 68000ohm, 250V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 4140, TO-263	50 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER	14 CONTACT(S), MALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, IDC/SOLDER
Reach Compliance Code	unknown	compli	unknown	not_compliant	not_compliant	compliant	unknown	unknow
Other features	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	-	LOW PROFILE	LOW PROFILE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD (15) OVER NICKEL (50)	NOT SPECIFIED	GOLD (15) OVER NICKEL (50)	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	GOLD (15) OVER NICKEL (50)
Contact point gender	MALE	MALE	MALE	MALE	MALE	-	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	-	NO	NO
Filter function	NO	NO	NO	NO	NO	-	NO	NO
IEC compliance	NO	NO	NO	NO	NO	-	NO	NO
JESD-609 code	e0	-	e0	-	-	e3	e0	e0
MIL compliance	NO	NO	NO	NO	NO	-	NO	NO
Mixed contacts	NO	NO	NO	NO	NO	-	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	-	BOARD AND CABLE	BOARD
Number of rows loaded	2	2	2	2	2	-	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
Termination type	IDC/SOLDER	IDC/SOLDER	IDC/SOLDER	IDC/SOLDER	IDC/SOLDER	-	IDC/SOLDER	IDC/SOLDER
Total number of contacts	16	20	26	34	40	-	50	14
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	-	94V-0	94V-0
Base Number Matches	1	1	1	1	1	-	-	-
Is it Rohs certified?	-	incompatible	-	incompatible	incompatible	conform to	incompatible	-
Maker	-	-	TE Connectivity	TE Connectivity	TE Connectivity	-	TE Connectivity	TE Connectivity
