87089-1616 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 87089-1616

87089-1616: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size77KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

87089-1616 Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Receptacle,

87089-1616 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	MILLI-GRID
body width	0.157 inch
subject depth	0.059 inch
body length	0.626 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	87089
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.102 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

Dense

Packaging

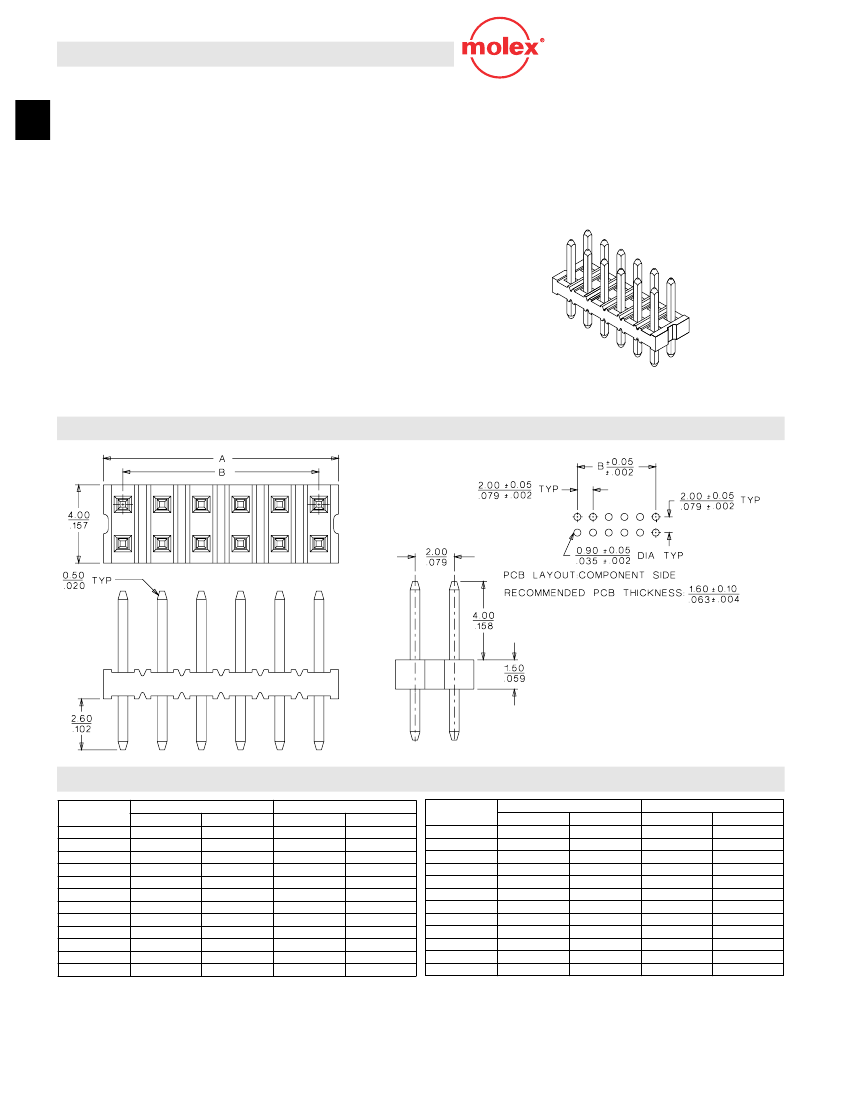

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 4 to 50 circuits

End-to-end stackable

Optional voided pin version, kinked PC tail and other

PC tail lengths

Surface Mount Compatible

Reference Information

Product Speciﬁcation: PS-87049

Packaging: Bag

UL File No.: E29179

CSA File No.: LR19980-182

Mates With: Milli-Grid 2.00mm Receptacles

Designed In: Millimeters

Electrical

Current: 2.0A

Dielectric Withstanding Voltage: 500V

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: High-temperature 4/6 nylon, UL 94V-0

Contact: Phosphor Bronze, 0.50mm square

Plating: See Table

Temperature: -55 to +105˚C

PCB Thickness: 1.60

0.10mm

2.00mm (.079") Pitch

Milli-Grid

™

Header

87089

Vertical

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

" Select Gold 30

" Select Gold

87089-0416

87089-0417

87089-0616

87089-0617

87089-0816

87089-0817

87089-1016

87089-1017

87089-1216

87089-1217

87089-1416

87089-1417

87089-1616

87089-1617

87089-1816

87089-1817

87089-2016

87089-2017

87089-2216

87089-2217

87089-2416

87089-2417

87089-2616

87089-2617

Dimension

3.90 (.154)

2.00 (.079)

5.90 (.232)

4.00 (.157)

7.90 (.311)

6.00 (.236)

9.90 (.390)

8.00 (.315)

11.90 (.469)

10.00 (.394)

13.90 (.547)

12.00 (.472)

15.90 (.626)

14.00 (.551)

17.90 (.705)

16.00 (.630)

19.90 (.783)

18.00 (.709)

21.90 (.862)

20.00 (.787)

23.90 (.941)

22.00 (.866)

25.90 (1.020)

24.00 (.945)

Circuits

Order No.

" Select Gold 30

" Select Gold

87089-2816

87089-2817

87089-3016

87089-3017

87089-3216

87089-3217

87089-3416

87089-3417

87089-3616

87089-3617

87089-3816

87089-3817

87089-4016

87089-4017

87089-4216

87089-4217

87089-4416

87089-4417

87089-4616

87089-4617

87089-4816

87089-4817

87089-5016

87089-5017

Dimension

27.90 (1.098)

26.00 (1.024)

29.90 (1.177)

28.00 (1.102)

31.90 (1.256)

30.00 (1.181)

33.90 (1.335)

32.00 (1.260)

35.90 (1.413)

34.00 (1.339)

37.90 (1.492)

36.00 (1.417)

39.90 (1.571)

38.00 (1.496)

41.90 (1.650)

40.00 (1.575)

43.90 (1.728)

42.00 (1.654)

45.90 (1.807)

44.00 (1.732)

47.90 (1.886)

46.00 (1.811)

49.90 (1.965)

48.00 (1.890)
