SERIES 75
SERIES 75
BEAU Terminal Blocks
BEAU
.375" PCB Tri-Barrier Terminal Strip
Description
The series 75, tri-barrier PCB terminal
strip is designed to meet the demanding
requirements of safety agencies. The tri-
barrier construction and optional hinged
cover prevent shorting and accidental
shock.
The product is extremely versatile and
is available with a wide range of screw,
terminal and hardware options.
Made in the USA, all Beau terminal
blocks embody the highest quality
standards in the industry-using the finest
materials and world class manufacturing
processes. They meet or exceed all
applicable industry standards.
Features
•
Prevents shorting
the tri-barrier
construction and optional hinged
cover prevents accidental shock. The
product meets safety agency "finger
probe" tests.
Molded to exact length,
with no
ugly saw cuts, Beau terminal strips
make your products look more
professional. The terminal block is
the one component that your
customer is sure to see.
Wide variety of options.
Our broad
range of screw, terminal, hardware
and mounting options allows us to
save you assembly costs and improve
interconnect performance.
•
•
PRODUCT RATINGS
#6-32 BINDING HEAD SCREW
UL
Class B
15 Amps @ 300 V 14 AWG
Class C
15 Amps @ 300 V 14 AWG
CSA
Class B
Class C
Class D
20 Amps @ 300 V 14 AWG
20 Amps @ 300 V 14 AWG
10 Amps @ 300 V 14 AWG
TECHNICAL SPECIFICATIONS
ELECTRICAL
DWV
IR
MECHANICAL
Maximum torque
OPTIONS
-45
-45-56
-47
-49
-50
-58
-59
-C
-F
-H
-M
-P
Slotted screw
Stainless steel screws, slotted
Screws up, wire ready
Brass, phillips/slotted screw
Clamp washer, phillips/slotted screw
No screws, barrier only
Screws supplied unassembled
No mounting ends
Rap-attach mounts
Hinged cover
3.5 M screw, slotted
.040" standoff pads
130°C insulator
10500 VDC
>5000 Megohms
8 in-lbs.
#6-32 WIRE CLAMP SCREW
UL
Class B
25 Amps @ 300 V 12 AWG
Class C
25 Amps @ 300 V 12 AWG
CSA
Class B
Class C
Class D
25 Amps @ 300 V 12 AWG
25 Amps @ 300 V 12 AWG
10 Amps @ 300 V 12 AWG
Destructive torque 13 in-lbs.
Wire strip length
5/16"
Wire range
12 to 24 AWG
ENVIRONMENTAL
Continuous Use Temp
RTI electrical
RTI mechanical w/o impact
160
o
C
160
o
C
-V
NOTE:
ratings.
3.5M screws carry #6-32 screw
MATERIALS
Insulator
Terminal
Screws
Thermoplastic,
UL94V0, black
Brass, tin-lead plate
#6-32, phillips/slotted, steel,
zinc chromate plate

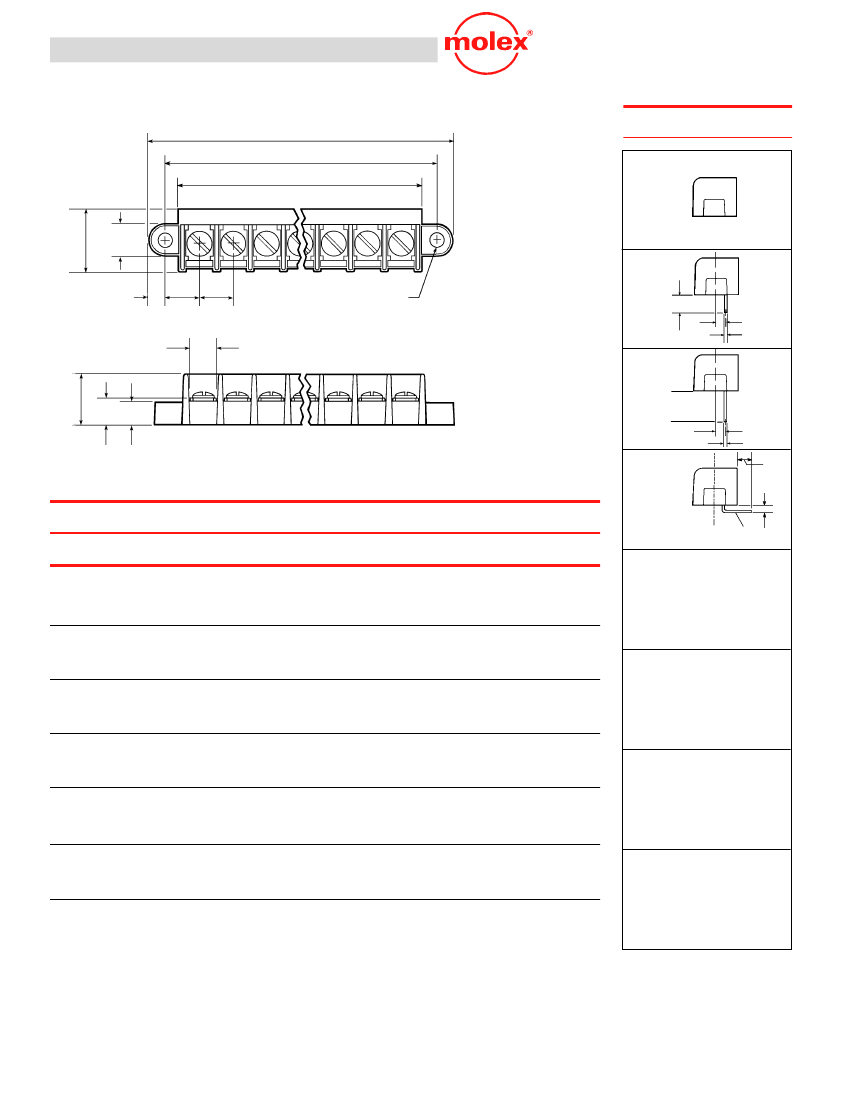

HOW TO ORDER
7 5
SERIES
AGENCY LISTINGS
UL
CSA
File No. E48521
Guide No. XCFR2
File No. 025562
X
TERMINAL
STYLE
157
8
X X - X X
NO. OF
POLES
2 to 26
(Dash #s above
and
opposite page)
OPTIONS
*Consult factory for combinations of screw options.
Molex Industrial Division
New England Operations
Gilford, NH 03246-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
Internet www.beauint.com
