TDA5030AT-T datasheet, PDF - EEWORLD Datasheet

TDA5030AT-T: DescriptionIC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC; CategoryOther integrated circuit (IC) Consumption circuit; File Size105KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

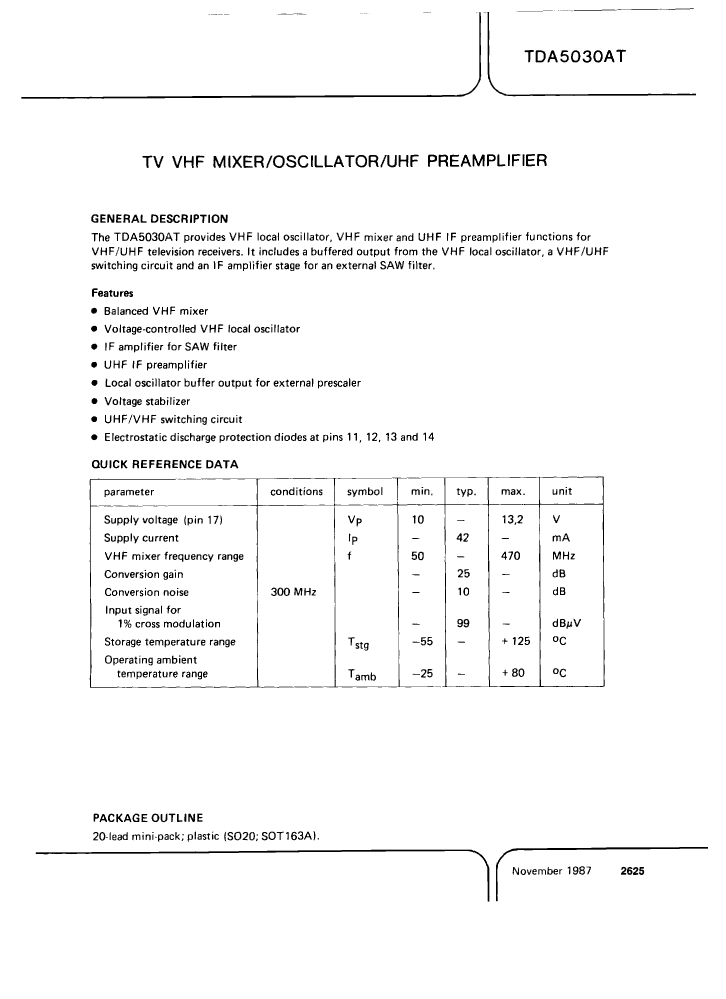

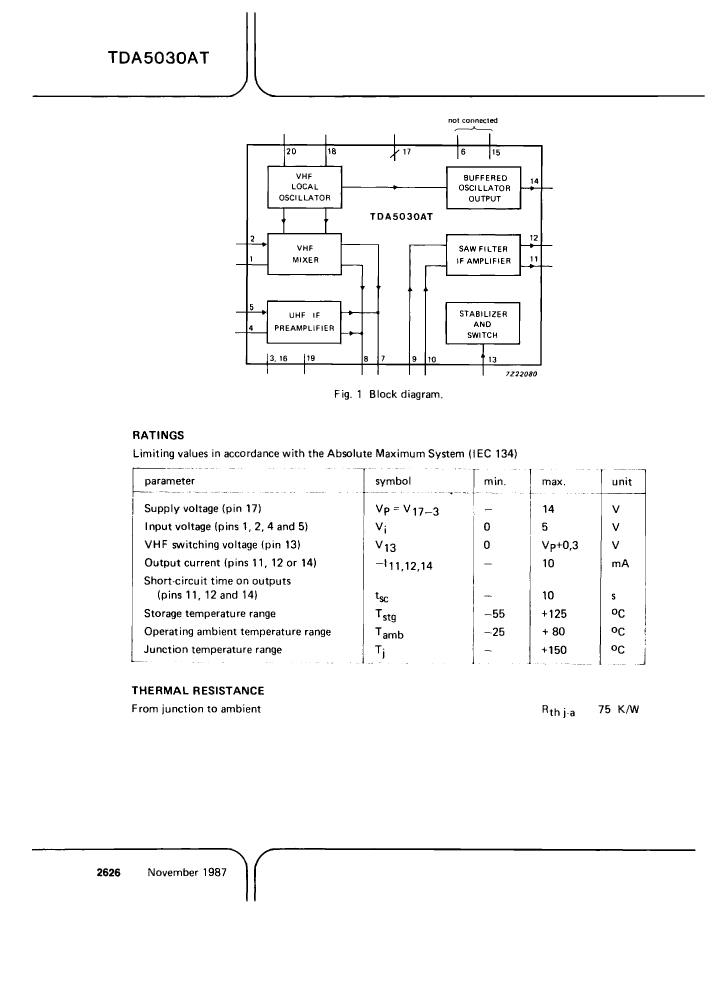

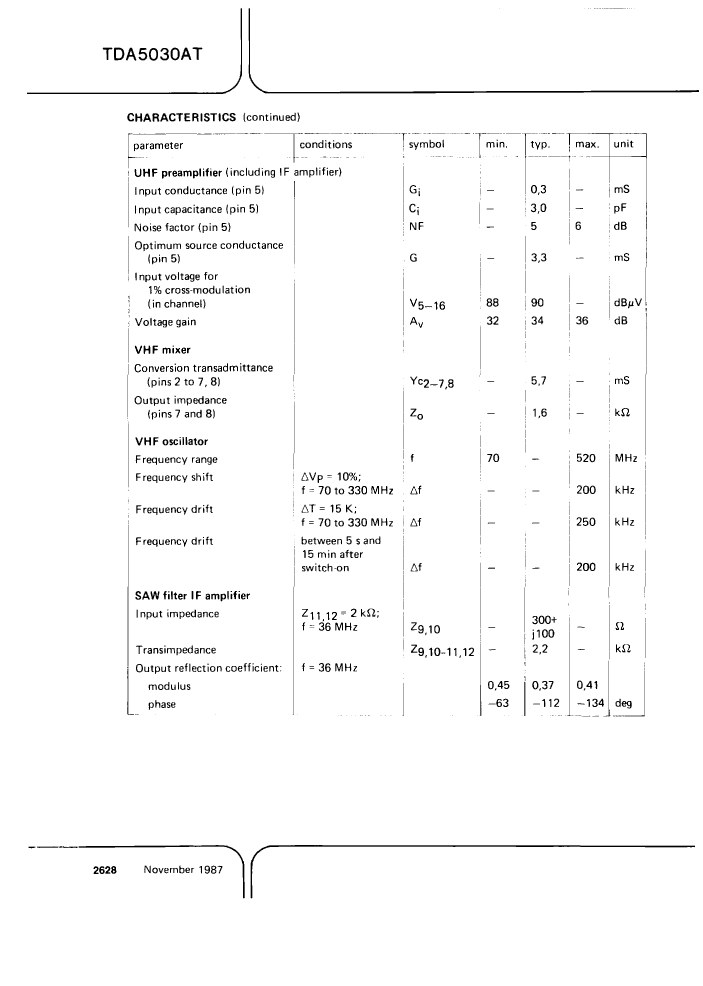

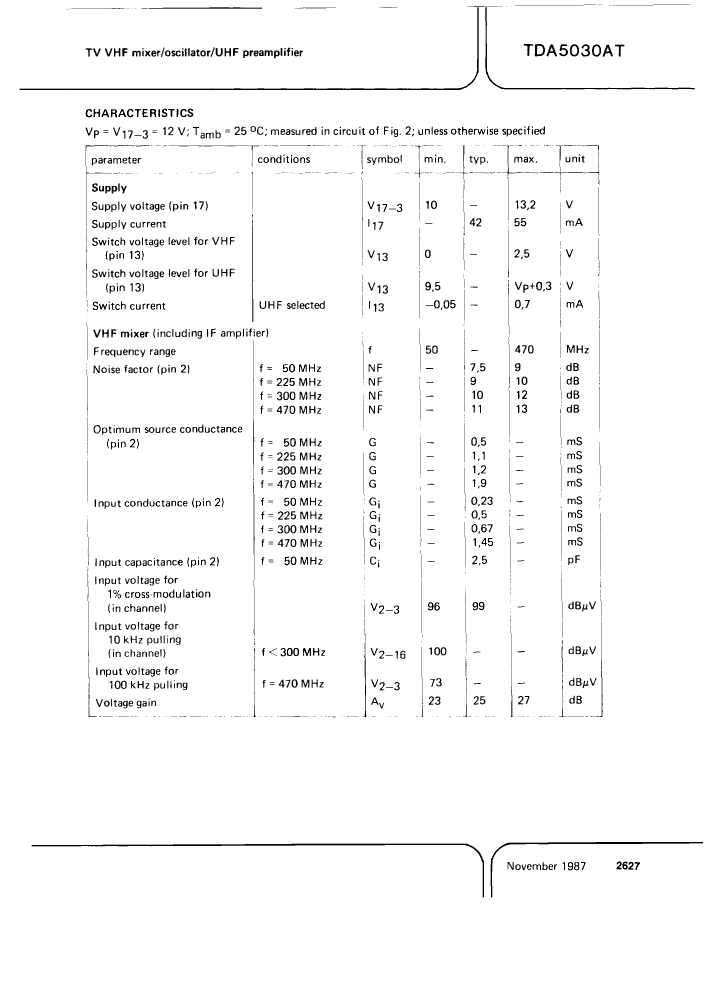

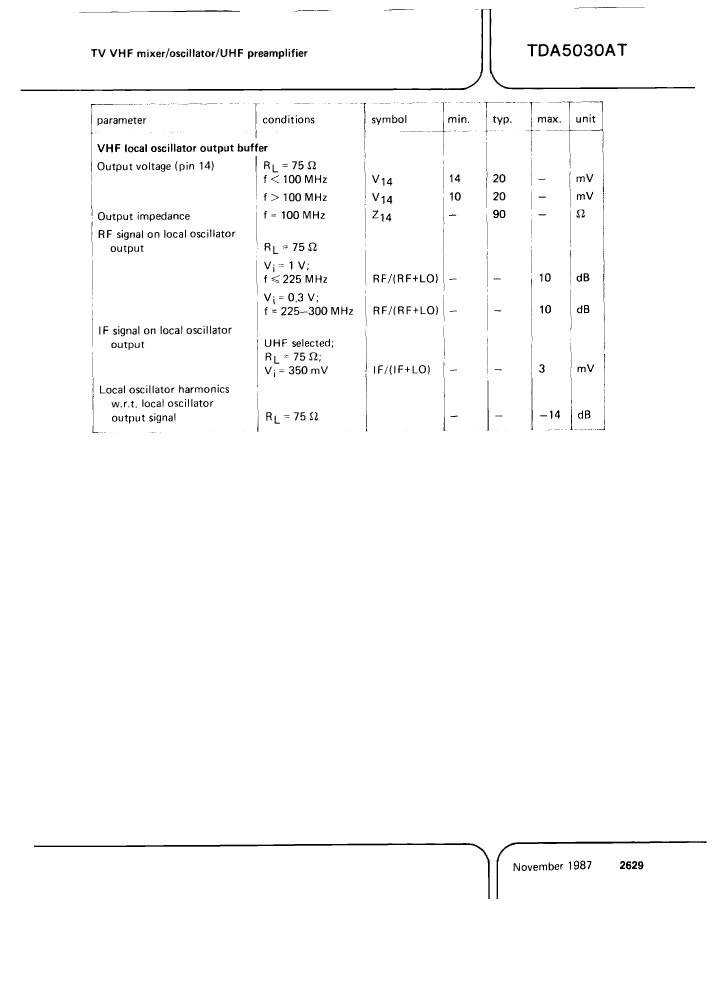

TDA5030AT-T Overview

IC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ALSO AVAILABLE IN UHF BAND
Built-in IF amplifier	YES
Commercial integrated circuit types	VIDEO TUNER
Maximum input frequency (RF)	470 MHz
Minimum input frequency (RF)	50 MHz
JESD-30 code	R-PDSO-G20
length	12.8 mm
Nominal noise index	11 dB
Number of frequency bands	2
Number of functions	1
Number of terminals	20
Maximum operating temperature	80 °C
Minimum operating temperature	-25 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum slew rate	55 mA
Maximum supply voltage (Vsup)	13.2 V
Minimum supply voltage (Vsup)	10 V
surface mount	YES
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
Base Number Matches	1

	TDA5030AT-T	TDA5030AT
Description	IC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC	IC 2-BAND, VIDEO TUNER, PDSO20, Tuner IC
Maker	NXP	NXP
package instruction	SOP,	SOP,
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	ALSO AVAILABLE IN UHF BAND	ALSO AVAILABLE IN UHF BAND
Built-in IF amplifier	YES	YES
Commercial integrated circuit types	VIDEO TUNER	VIDEO TUNER
Maximum input frequency (RF)	470 MHz	470 MHz
Minimum input frequency (RF)	50 MHz	50 MHz
JESD-30 code	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	12.8 mm
Nominal noise index	11 dB	11 dB
Number of frequency bands	2	2
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-25 °C	-25 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	2.65 mm
Maximum slew rate	55 mA	55 mA
Maximum supply voltage (Vsup)	13.2 V	13.2 V
Minimum supply voltage (Vsup)	10 V	10 V
surface mount	YES	YES
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.5 mm	7.5 mm
Base Number Matches	1	1
