3620D1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 3620D1

3620D1: DescriptionSingle Color LED, Red, Transparent, 23.01mm, ROHS COMPLIANT PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size218KB，1 Pages; ManufacturerCML Innovative Technologies; Environmental Compliance

Download Datasheet Parametric View All

3620D1 Overview

Single Color LED, Red, Transparent, 23.01mm, ROHS COMPLIANT PACKAGE-2

3620D1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	unknown
Other features	UL RECOGNIZED
color	RED
Configuration	SINGLE
Lens type	TRANSPARENT
Installation features	PANEL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	3.18 mm
method of packing	BULK
shape	RECTANGULAR
size	23.01 mm
surface mount	NO
Base Number Matches	1

Preview

Download Datasheet

View All

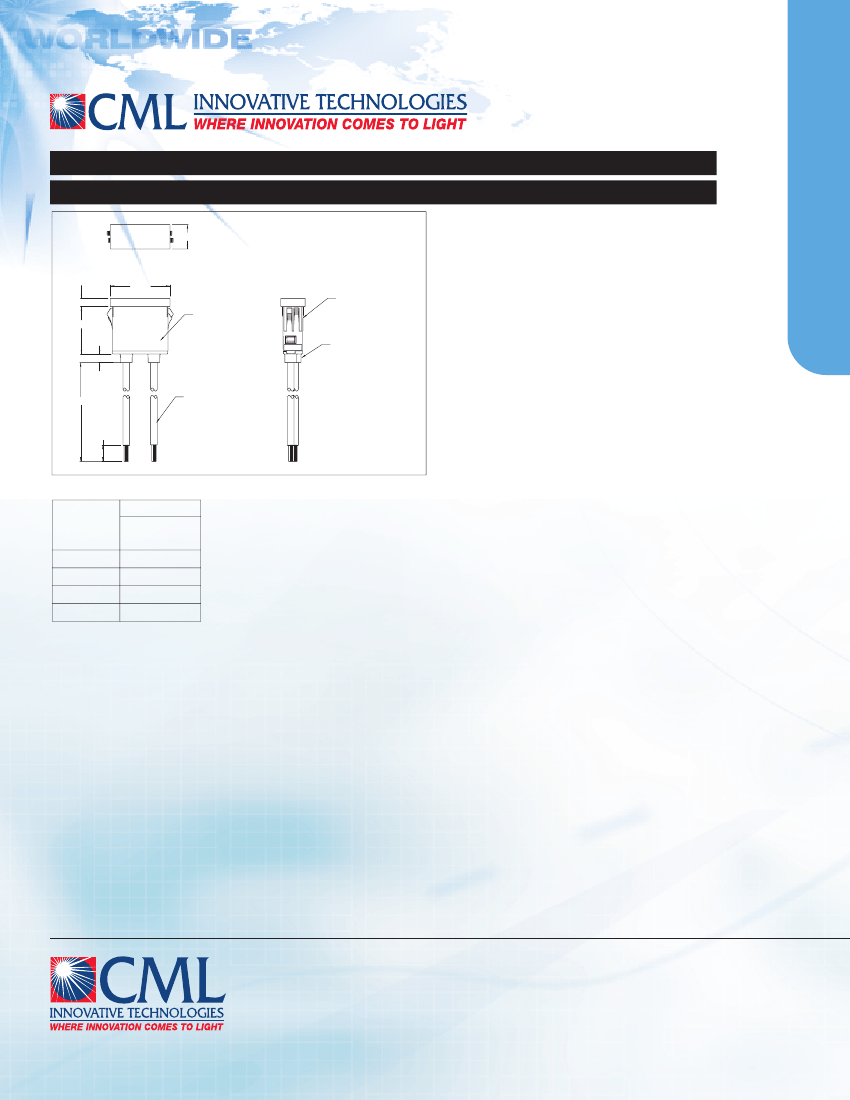

3620D Series Non-Relampable Neon Indicator Light

DESCRIPTION AND FEATURES

.370

All dimensions

in inches.

Mounting: Will snap-fit into Ø.020/.130 panel.

Use speednut SN1287 for other panel

thicknesses.

Wire Leads: No.24 AWG (105°C), lead color: red

and white, 6"long, stripped 1/2".

.125

.906

LIG HT S OUR C E :

A1C NE ON LAMP

W/R E S IS T OR

LE NS MAT E R IAL:

T R ANS P AR E NT R E D

P OLY C AR B ONAT E

Lens: Tinted transparent polycarbonate.

.720

B AS E MAT E R IAL:

WHIT E NY LON

.130

+.500

6.500 T Y P . -.250

.250±.063

TYP.

20 AWG WIR E

U.L. 1015

C OLOR : B LAC K

Neon

Lens C olor

R ed

Amber

Y ellow

Model No.

(105-125V AC )

3620D1

3620D3

3620D7

Lamp us ed A1C +R es is tor

Underwriters Laboratories (UL) File No. E20325

Canadian Standards Association (CSA) File No. LR13346

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack, NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

3620D Series Non-Relampable Neon Indicator Light
