R573.803.605 datasheet, PDF - EEWORLD Datasheet

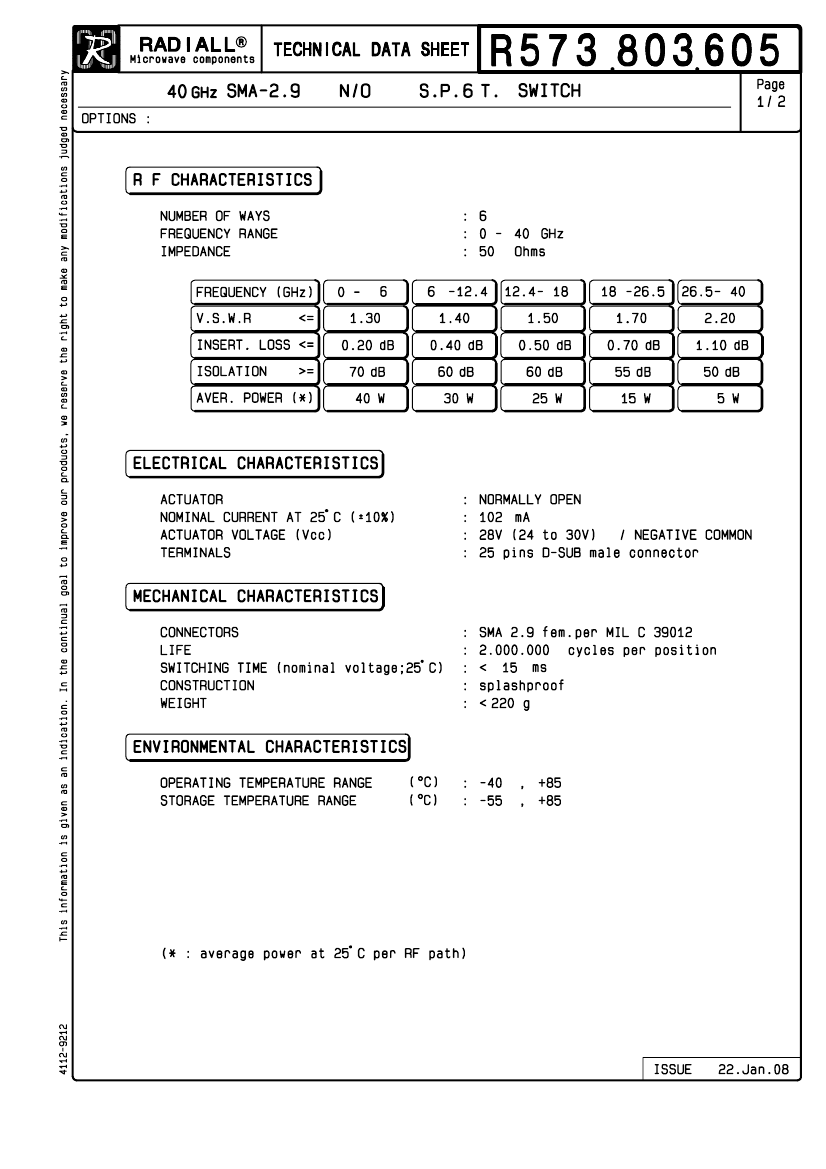

R573.803.605: DescriptionRF Coaxial Relay, SP6T, Momentary, 0.102A (Coil), 28VDC (Coil), 2856mW (Coil), 40000MHz, 5W (RF Input), DC Input, DC Output, Panel Mount; CategoryMechanical and electronic products relay; File Size131KB，2 Pages; ManufacturerRadiall; Websitehttps://www.radiall.com/

Download Datasheet Parametric View All

R573.803.605 Overview

RF Coaxial Relay, SP6T, Momentary, 0.102A (Coil), 28VDC (Coil), 2856mW (Coil), 40000MHz, 5W (RF Input), DC Input, DC Output, Panel Mount

Parameter Name	Attribute value
Maker	Radiall
Reach Compliance Code	unknown
ECCN code	EAR99
Factory Lead Time	8 weeks

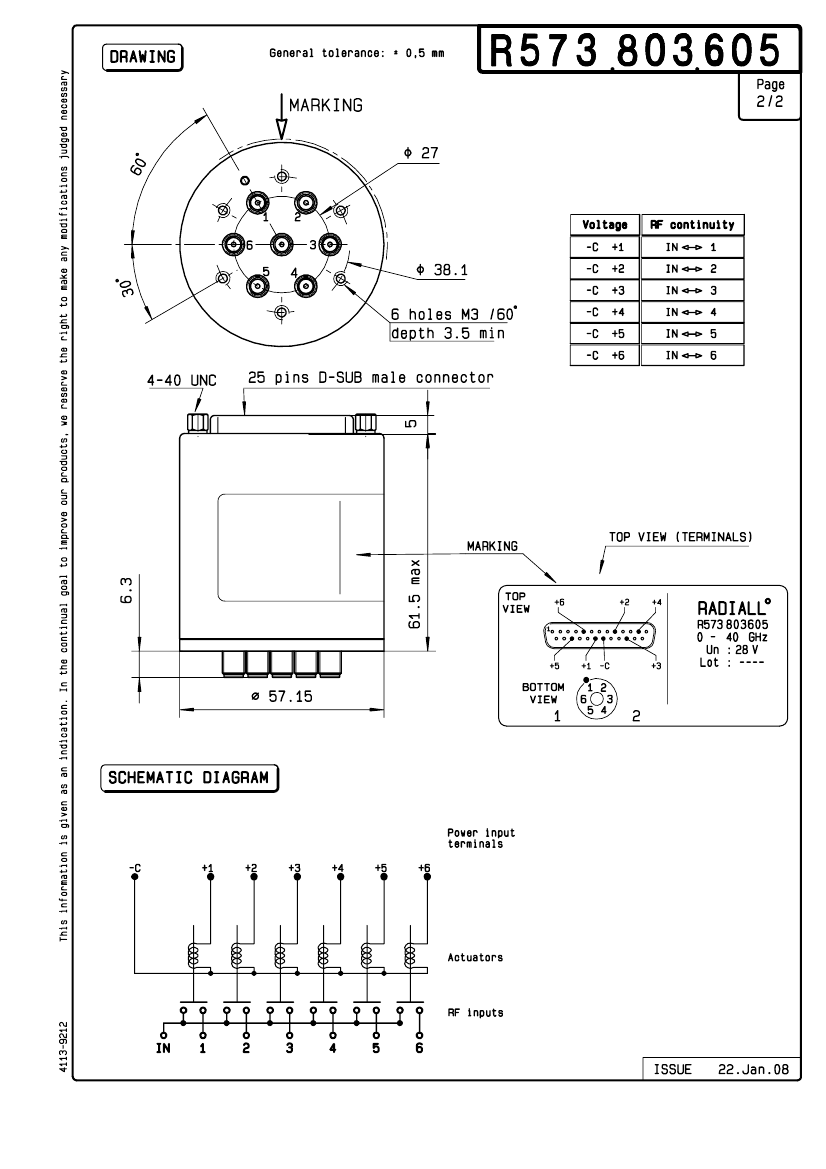

body height	61.5 mm
Body length or diameter	57.15 mm
Characteristic impedance	50 Ω
Maximum coil current (DC)	0.102 A
Coil power	2856 mW
Coil resistance	274.51 Ω
Maximum coil voltage (DC)	28 V
Coil/Input Power Type	DC
Contact/Output Power Type	DC
Maximum input power	5 W
Maximum insertion loss	1.1 dB
Maximum isolation	50 dB
Manufacturer's serial number	R573.803.605
Installation features	PANEL MOUNT
Maximum operating frequency	40000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Relay action	MOMENTARY
Relay function	SP6T
Relay type	RF COAXIAL RELAY
seal	SPLASH PROOF
surface mount	NO
switching time	15 ms
Termination type	CONNECTOR
voltage standing wave ratio	2.2
Base Number Matches	1
