54AC10LMQB datasheet, PDF - EEWORLD Datasheet

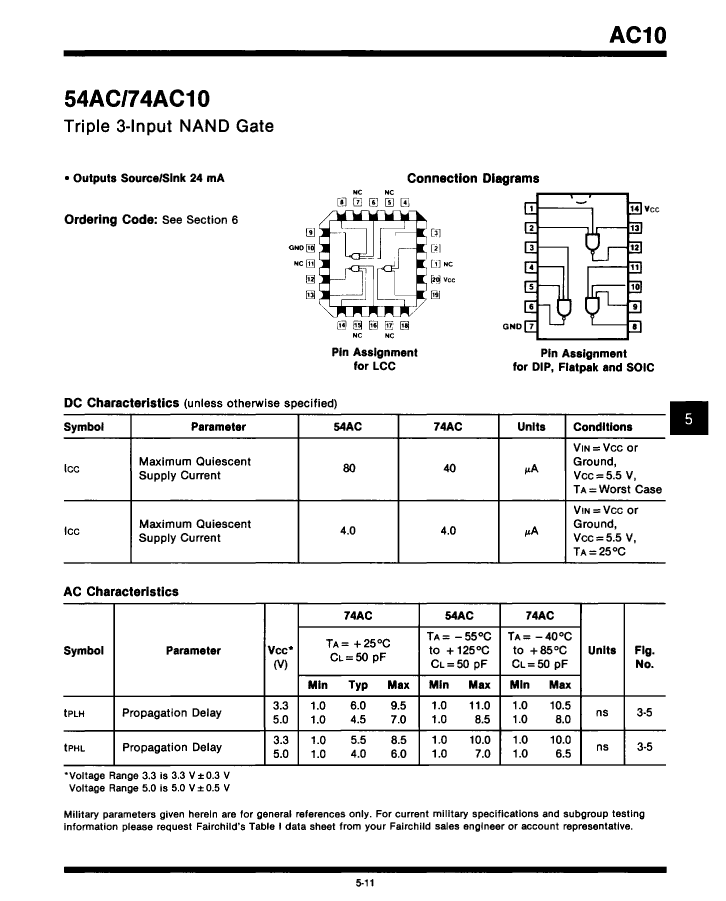

54AC10LMQB: DescriptionNAND Gate, AC Series, 3-Func, 3-Input, CMOS, CQCC20, CERAMIC, LCC-20; Categorylogic logic; File Size30KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

54AC10LMQB Overview

NAND Gate, AC Series, 3-Func, 3-Input, CMOS, CQCC20, CERAMIC, LCC-20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	QLCC
package instruction	CERAMIC, LCC-20
Contacts	20
Reach Compliance Code	unknown
series	AC
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.012 A
Number of functions	3
Number of entries	3
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3/5 V
Prop。Delay @ Nom-Sup	11 ns
propagation delay (tpd)	10 ns
Certification status	Not Qualified
Schmitt trigger	NO
Filter level	38535Q/M;38534H;883B
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8.89 mm
Base Number Matches	1
