5207AV2QE12 datasheet, PDF - EEWORLD Datasheet

5207AV2QE12: DescriptionRocker Switch, DPDT, On-off-(on), 5A, 28VDC, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-right Angle; CategoryMechanical and electronic products switch; File Size460KB，5 Pages; ManufacturerITT; Websitehttp://www.ittcannon.com/

Download Datasheet Parametric View All

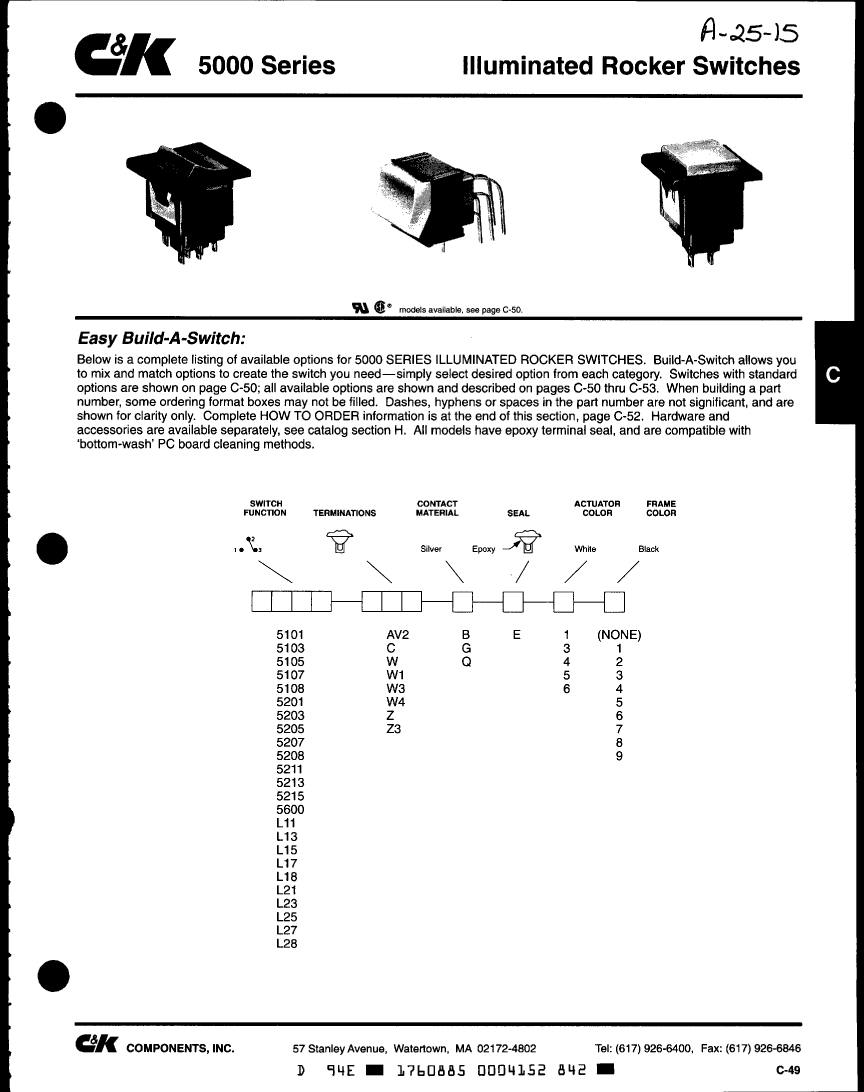

5207AV2QE12 Overview

Rocker Switch, DPDT, On-off-(on), 5A, 28VDC, 10 PCB Hole Cnt, Solder Terminal, Rocker Actuator, Through Hole-right Angle

Parameter Name	Attribute value
Maker	ITT
Reach Compliance Code	unknown
ECCN code	EAR99

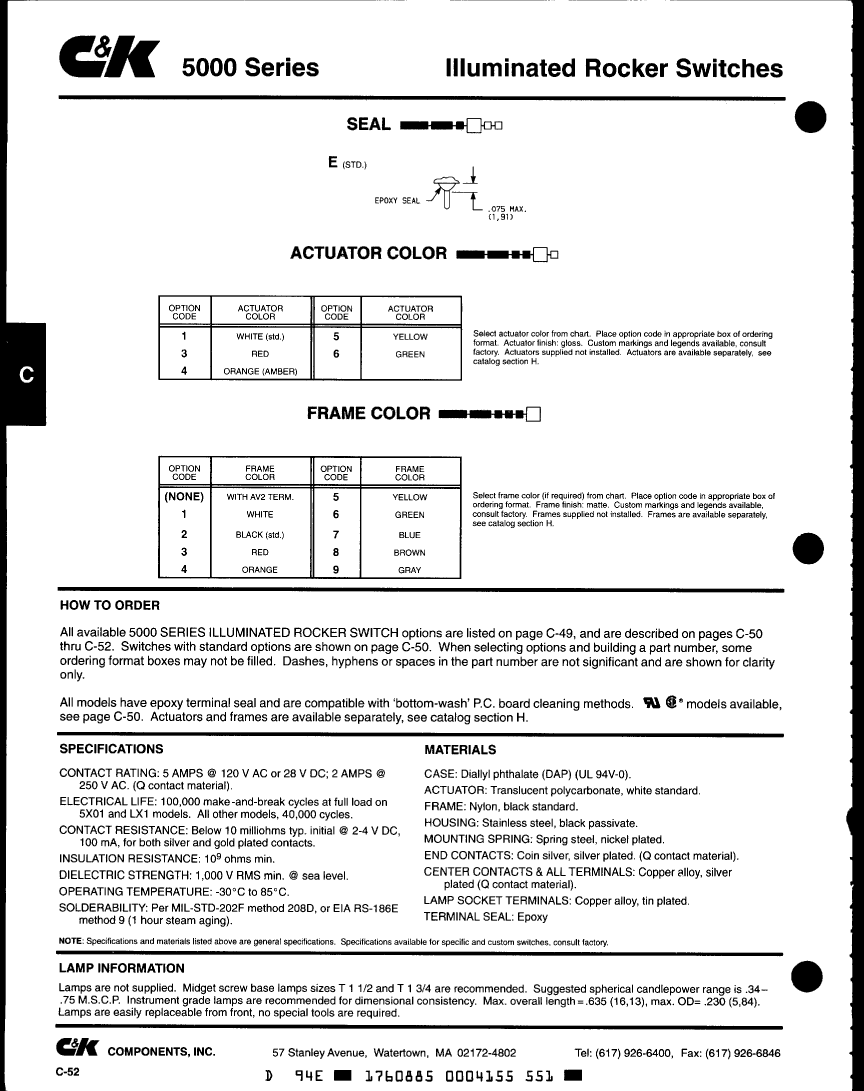

Actuator angle	30 deg
Actuator color	WHITE
Actuator length	0.209 inch
Actuator material	POLYCARBONATE
Actuator type	ROCKER
Other features	DIMS 1.035(L) X 0.937(W) W/ FR
body width	18.923 mm
Body color	BLACK
Body length or diameter	17.78 mm
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@250VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
Contact function	ON-OFF-(ON)
Contact resistance	0.01 mΩ
Maximum contact voltage (AC)	250 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	40000 Cycle(s)
End contact material	SILVER
End contact plating	SILVER
Shell material	STAINLESS STEEL
illumination	LAMP
Insulation resistance	1000000000 Ω
insulator material	DIALLYL PHTHALATE
Manufacturer's serial number	5000
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	10
seal	EPOXY
Solderability	MIL-STD
surface mount	NO

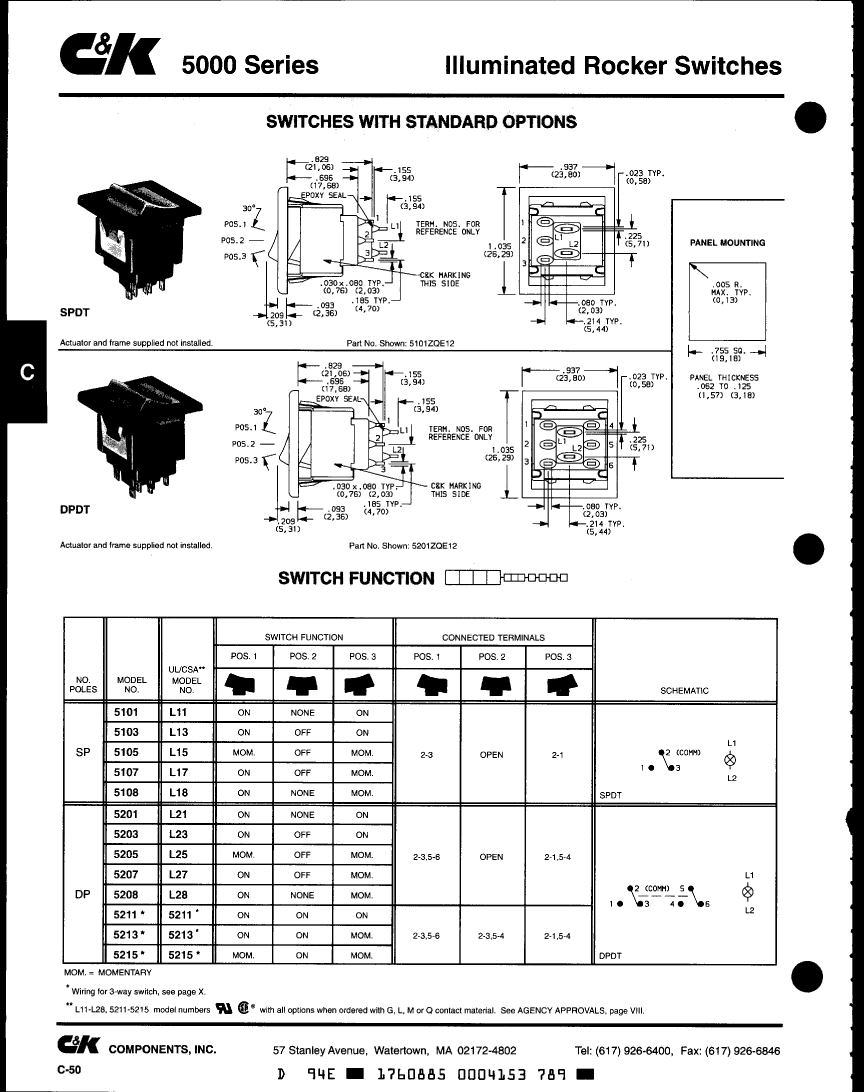

switch function	DPDT
Switch type	ROCKER SWITCH
Terminal surface	GOLD/NICKEL
Terminal length	0.18 inch
Terminal material	COPPER ALLOY

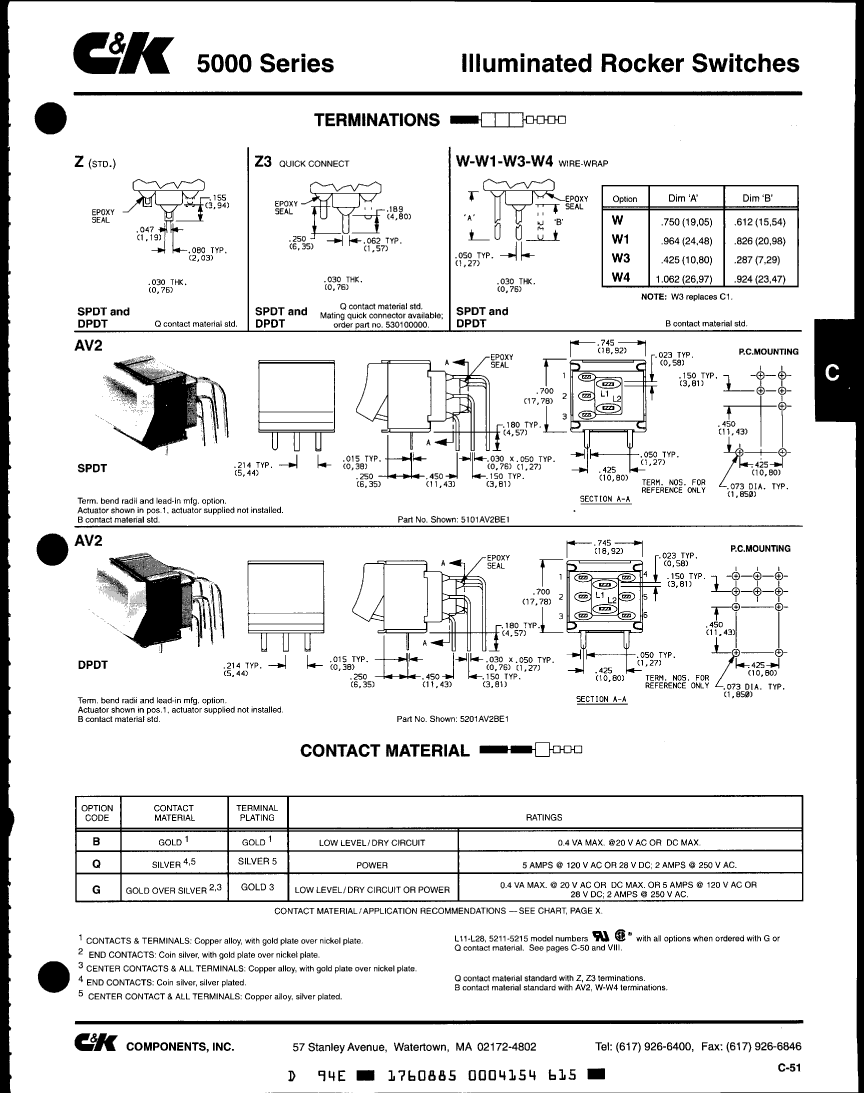

Termination type	SOLDER
Washability	PARTIAL
Base Number Matches	1
