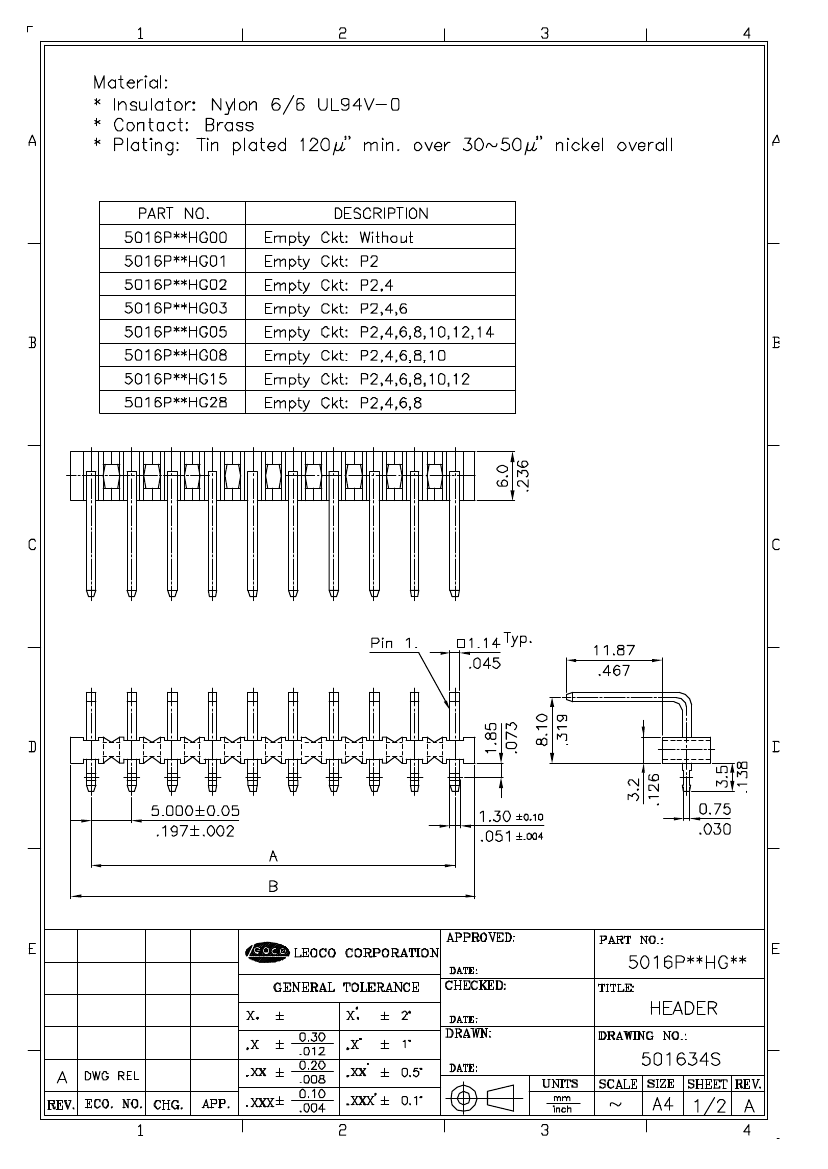

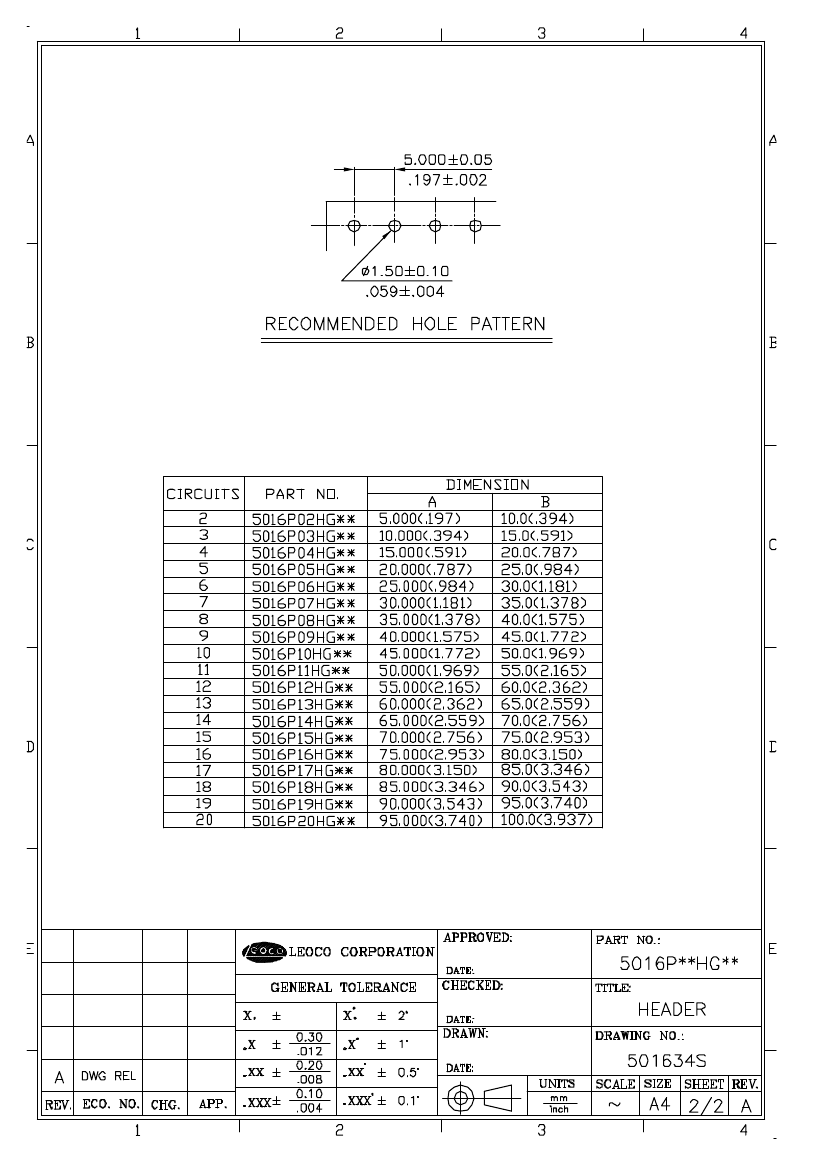

5016P16HG15: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size66KB，2 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric Compare View All

5016P16HG15 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle

5016P16HG15 Parametric

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
Other features	OMIT PIN 2,4,6,8,10 & 12
body width	0.342 inch
subject depth	0.236 inch
body length	3.15 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	500000000 Ω
insulator material	NYLON
Manufacturer's serial number	5016P
Plug contact pitch	0.197 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	120u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	5.0038 mm
Termination type	SOLDER
Total number of contacts	16
Base Number Matches	1

Preview

Download Datasheet

View All

5016P16HG15 Related Products

	5016P16HG15	5016P13HG15	5016P03HG00	5016P15HG05	5016P16HG03	5016P07HG00	5016P07HG01	5016P07HG02	5016P07HG03
Description	Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 13 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 15 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 16 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle	Board Connector, 7 Contact(s), 1 Row(s), Male, Right Angle, 0.197 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknown	unknown	unknown	unknown
body width	0.342 inch	0.342 inch	0.342 inch	0.342 inch	0.342 inch	0.342 inch	0.342 inch	0.342 inch	0.342 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	3.15 inch	2.559 inch	0.591 inch	2.953 inch	3.15 inch	1.378 inch	1.378 inch	1.378 inch	1.378 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ	40 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V	1500VAC V
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	5016P	5016P	5016P	5016P	5016P	5016P	5016P	5016P	5016P
Plug contact pitch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch	120u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch	0.138 inch
Terminal pitch	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm	5.0038 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	16	13	3	15	16	7	7	7	7
Maker	Leoco USA Corp	-	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp	Leoco USA Corp
Other features	OMIT PIN 2,4,6,8,10 & 12	OMIT PIN 2,4,6,8,10 & 12	-	OMIT PIN 2,4,6,8,10,12,14	OMIT PIN 2,4 & 6	-	OMIT PIN 2	OMIT PIN 2 & 4	OMIT PIN 2,4 & 6
ECCN code	-	-	-	-	EAR99	EAR99	EAR99	EAR99	EAR99
