11000 AND 12000 SERIES
PROFESSIONAL TOGGLE SWITCHES
Distinctive features
B
❑
Applications
These switches are specially manufactured for defence, avionics, space and
telecommunications applications.
❑
Approvals and lists
CECC 96201-005
CECC 96201-008
•
QPL
(in Europe) and
MUAHAG
listed
• meeting the requirements of
MIL
standard (MIL 3950)
❑
Robust switches for high specification environments
❑
Toggle action on 2-position models giving smooth mechanical
operation
❑
Plastic material with high insulation resistance
❑
Several front panel sealing options
❑
Several locking lever options (12000 series)
❑
Bright chrome, satin chrome or matt black finish
A P E M
B-53

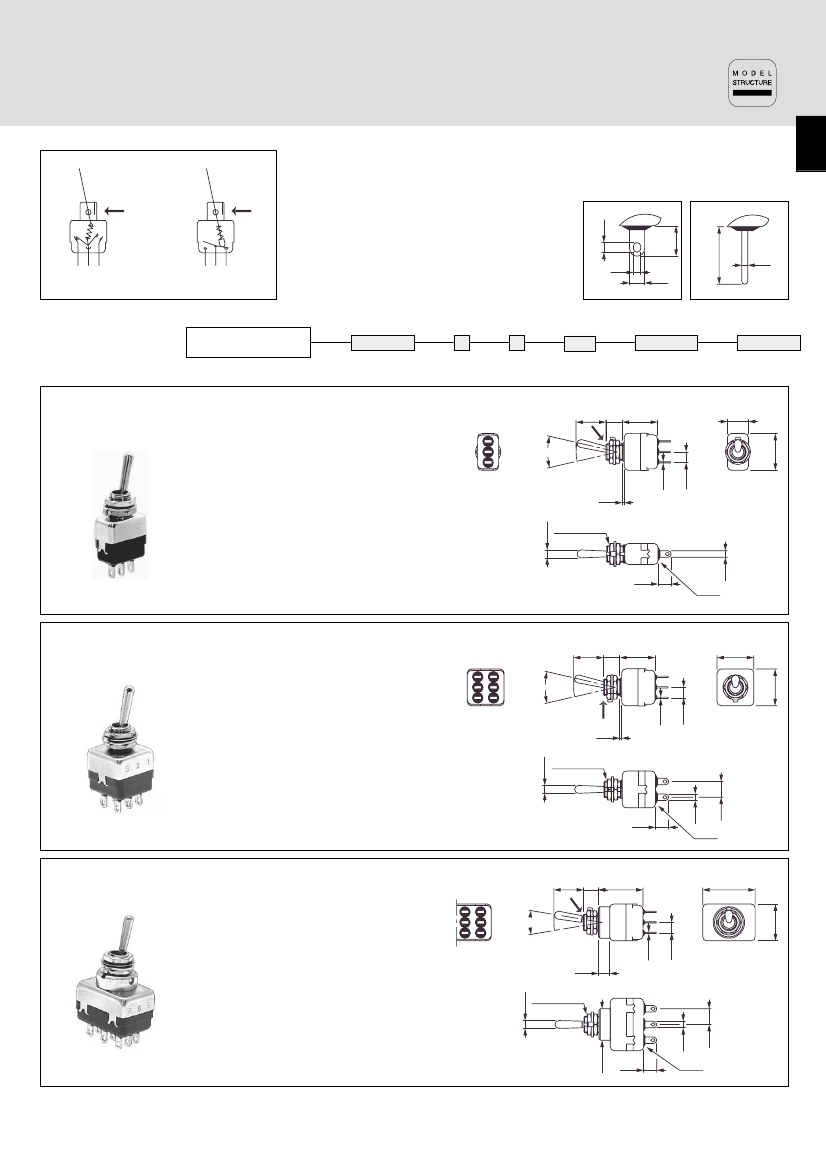

11000 SERIES
PROFESSIONAL TOGGLE SWITCHES
-
THREADED BUSHING
Ø 6,35 (1/4)
Overview
B
Finish
Blank
Bright chrome finish
G
Matt black finish on
bushing, actuator
and hardware.
-13
-26
Levers
Standard
Cylindrical
Approvals/lists
CECC
QPL list
(Europe only)
MUAHAG list
Availability :
Consult factory for
details of approved
models.
Contact materials
A
AD2
D
Silver
Gold plated silver
(2 microns)
Solid gold rivet
Sealing
Blank
Epoxy sealed
terminals standard
K
Front panel sealing
by one O-ring and
sealing washer
Sealing by two O-rings, see
X408, "Special options"
box
.
Special options
Blank
No special
requirement
X408
Front panel
sealing by
two O-rings
Other : see
following pages.
See "Special options" for
X780 (solid silver/nickel
rivet) and section G for
X910 (for peak currents).
NOTICE
: please note that not all combinations of above numbers are available.
Refer to the following pages for further information.
Sealing boots
are available to protect the switches against dust and water. They are presented in section N.
Mounting accessories
: standard hardware supplied with all models : 2 hex nuts 8 (.314) across flats, 1 locking ring and 1
lockwasher.
Standard and special hardware available are presented in section N.
Packaging unit
: 25 pieces or 50 pieces depending on models.
A P E M
B-55
11000 AND 12000 SERIES
PROFESSIONAL TOGGLE SWITCHES
Specifications
B
ELECTRICAL SPECIFICATIONS
• Max. current/voltage rating with resistive load :
- silver contacts (A-AD2-X780) : 2A 250VAC - 4A 125VAC - 4A 30VDC
- gold contacts (D) : 200mA 250VAC - 400mA 125VAC
• Minimum load : AD2-X780-D contacts : 10mA 50mV, 10µA 5V min.
• Initial contact resistance : 10 mΩ max.
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength :
1.000 Vrms 50 Hz min. between terminals
2.000 Vrms 50 Hz min. between poles and between terminals and frame
• Contact bounce : 2 ms max.
• Electrical life at full load :
Number of cycles
Contacts
A
AD2
X780
D
Max. current/voltage rating
2A 250VAC - 4A 125VAC - 4A 30VDC
2A 250VAC - 4A 125 VAC - 4A 30VDC
Under 100mA 30VDC without damaging
the gold plating
200mA 250VAC - 400mA 125VAC
Low level or mechanical life
For peak current, refer to section G.
MATERIALS
GENERAL SPECIFICATIONS
2 positions
50.000
20.000
3 positions
50.000
20.000
80.000
150.000
50.000
100.000
• Case : diallylphthalate (DAP)
• Actuator : brass, chrome plated
• Bushing : brass, nickel plated
• Housing : brass, nickel plated
• Contacts
A :
silver
AD2 :
gold plated silver
(2 microns gold)
X780 :
solid rivet - gold plated
silver/nickel alloy
D
: solid gold rivet
X910
: silver/nickel alloy (for
peak current, see section G)
• Terminal seal : epoxy
Note : AD2 and X780 contacts
can be used for high level
applications. In this case, the
gold layer is considered only as
a protection against oxidation
during storage.
Tin plated PC terminals available,
see "Special options".
• Torque :
- 11000 = 1,25 Nm (.92 Ft.lb) max. applied between the 2 nuts
- 12000 = 1,50 Nm (1.10 Ft.lb) max. applied between the 2 nuts
• Standard panel thickness :
- 11000 = 2,5 mm (.098) max.
- 12000 = 4,5 mm (.177) max.
• Operating temperature : -40°C to +85°C
RELIABILITY
-
RUN
-
IN TEST
Upon request, each individual switch can be submitted to a low level run-in
test of 50 or 250 cycles to ensure suitability for special applications requiring
a very high level of reliability (military, space, etc.).
AGENCY APPROVALS
/
PREFERENTIAL LISTS
CECC 96201-005
CECC 96201-008
QPL
(Europe only)
MUAHAG
Designed to
MIL
specifications (12000 only)
Availability
: consult factory for details of approved models.
Marking
: to order switches marked CECC, complete appropriate box of
ordering format.
Preferential lists do not appear on the switches.
B-56
A P E M
