ZF48S12-2500 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> ZF48S12-2500

ZF48S12-2500: DescriptionPower Supply Module,; CategoryPower/power management The power supply circuit; File Size87KB，2 Pages; ManufacturerWall Industries,Inc.; Websitehttps://www.wallindustries.com/

Download Datasheet Parametric Compare View All

ZF48S12-2500 Overview

Power Supply Module,

ZF48S12-2500 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum input voltage	75 V
Minimum input voltage	36 V
Number of terminals	7
Maximum operating temperature	70 °C
Minimum operating temperature	-25 °C
Maximum output current	2.5 A
Nominal output voltage	12 V
Package body material	METAL
Encapsulate equivalent code	MODULE,7LEAD,1.8
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
Temperature level	OTHER
Base Number Matches	1

Preview

Download Datasheet

View All

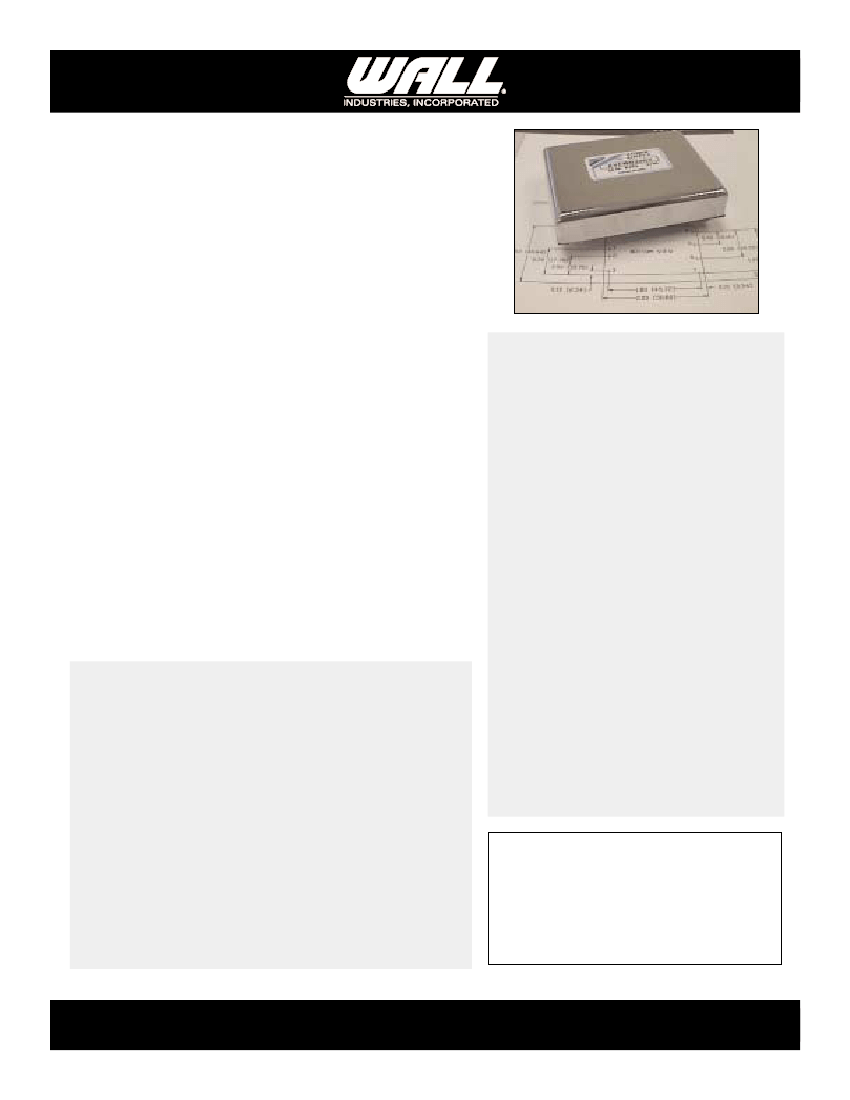

ZF SERIES

ZF - SERIES

Single Output DC/DC Converter

2” x 1.6” x 0.4”

up to 30 Watts Output

T O 30 WATTS

Product Features

Single DC/DC Converter, up to 30Watts

Ideal for Telecom and Networking Applications

2:1 Input Range, High Efficiency

Industry Compatible Pin Out, 2” x 1.6” Form Factor

Remote On / Off, TTL, Trimmable +/-10%

Six Side Shielded, Low Profile 0.4” Height

No external Input or Output Filtering required

Regulated Output

1600VDC I/O Isolation, UL, CUL, TUV, CE Approvals pending

Brief Overview

The ZF Series of high efficiency DC/DC convert-

ers are available as single output versions,

1.8VDC, 2.5VDC up to 15 VDC, with 30 Watts of

output power. The product is ideal for Telecom

and Networking applications. The converter is

designed for a 2:1 input range, either nominal 24

Volt (18VDC -36VDC) or nominal 48VDC (36VDC-

75VDC). The converter is PCB mountable, the

package has a form factor of 2”x 1.6”x .04”. The

standard specifications include the Pi-input filter,

external trimming of +/- 10%, excellent load regu-

lation, and short circuit protection. The isolation

voltage meets the >1600VDC telecom require-

ments.

TYPICAL APPLICATIONS:

- 24Vdc or 48Vdc Telecom

- On-Board Distributed Power

- Low Profile & Height PCB mount

SPECIFICATIONS:

Nominal Input:

TABLE 1

Model

Number

ZF24S1.8-6000

ZF24S2.5-6000

ZF24S3.3-6000

ZF24S5-6000

ZF24S12-2500

ZF24S15-2000

ZF48S1.8-6000

ZF48S2.5-6000

ZF48S3.3-6000

ZF48S5-6000

ZF48S12-2500

ZF48S15-2000

Input

Voltage

VDC

18-36

36-75

Output

Volts /Amps

VDC

1.8 // 6

2.5 // 6

3.3 // 6

5 // 6

12 // 2.5

15//2.0

1.8 // 6

2.5 // 6

3.3// 6

5 // 6

12 // 2.5

15 // 2.0

Effic.

48VDC (36-75VDC)

24VDC (18-36VDC)

Output Voltage:

see Table 1

Output Power:

30W

Efficiency:

(see table)

Isolation Voltage:

1600VDC

Operating Temperature: -25C to +71C

Max. Case Temp.

100C

Dimensions:

2” x 1.6” x 0.4”

For further information or Application Support:

www.wallindustries.com

or call 1-888-597-WALL

603 778 2300

W W W

WALLINDUSTRIES

C O M
