DCB407: DescriptionDC-DC Regulated Power Supply Module, 25W; CategoryPower/power management The power supply circuit; File Size47KB，2 Pages; ManufacturerXP Power; Websitehttps://www.xppower.com/

Download Datasheet Parametric View All

DCB407 Overview

DC-DC Regulated Power Supply Module, 25W

DCB407 Parametric

Parameter Name	Attribute value
Maker	XP Power
package instruction	,
Reach Compliance Code	compliant
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (main output)	75%
high	31 mm
Maximum input voltage	140 V
Minimum input voltage	85 V
Nominal input voltage	110 V
length	135 mm
Maximum grid adjustment rate	0.8%
Maximum load regulation	0.9%
Maximum operating temperature	50 °C
Minimum operating temperature
Maximum output current	2.8 A
Nominal output voltage	5 V
Ripple voltage (main output)	0.01768 Vrms
Maximum total power output	25 W
width	85 mm
Base Number Matches	1

Preview

Download Datasheet

View All

DC/DC Converters

International

Power Sources, Inc.

260 Hopping Brook Road

Holliston, Massachusetts 01746

Tel. (508) 429-4440

Fax (800) 226-2100

http://www.intlpower.com

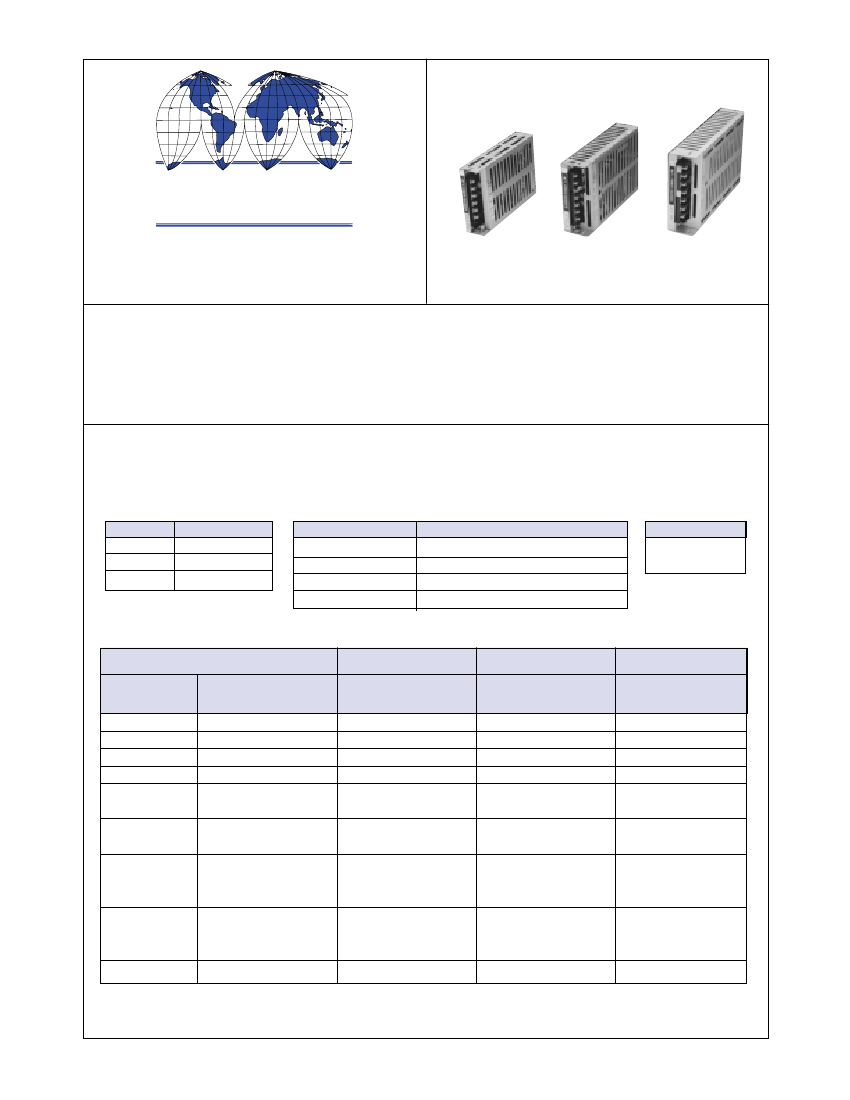

15, 25 and 50 WATT

FEATURES

•

Efficiency to 86%

•

Wide Input Ranges

•

Adjustable Outputs

•

Isolated Outputs

•

Input/Output Protection

•

Compact Size/Light Weight

ORDERING GUIDE: Series/Input Code/Output Code

Example: DCC 201 - 50 Watt Series, 24 Volt Input, 5 Volt Output @ 10 AMPS

Series

DCA

DCB

DCC

Output

15 Watts

25 Watts

40/50 Watts

Input Code

1

2

3

4

Input Range

12 volt nominal (9-16VDC)

24 volt nominal (19-32VDC)

48 volt nominal (38-63VDC)

110 volt nominal (85-140VDC)

Output Code

From Chart

Below

SERIES

OUTPUT

CODE

01

02

03

04

05

06

DCA

OUTPUT

VOLTAGE(S)

5VDC

12VDC

15VDC

24VDC

+12VDC

-12VDC

+15VDC

-15VDC

5VDC

DCB

OUTPUT

CURRENT(S)

5.0A

2.1A

1 .7A

1.1 A

1.2A

.9A

1.0A

.7A

2.8A

.5A

2.8A

.36A

0.5A

DCC

OUTPUT*

CURRENT(S)

10(8)A

4.3(3.3)A

3.4(2.7)A

2.5(1.7)A

2.0(2.0)A

1.7(1.5)A

1.5(1.3)A

5.0A

.83(.73)A

5.0A

.65(.58)A

1(0.8)A

OUTPUT

CURRENT(S)

3.0A

1.2A

1.0A

.62A

.75A

.5A

1.8A

.15A

1.8A

.15A

—

).

07

+12VDC

-12VDC

5VDC

08

10

+15VDC

-15VDC

48VDC

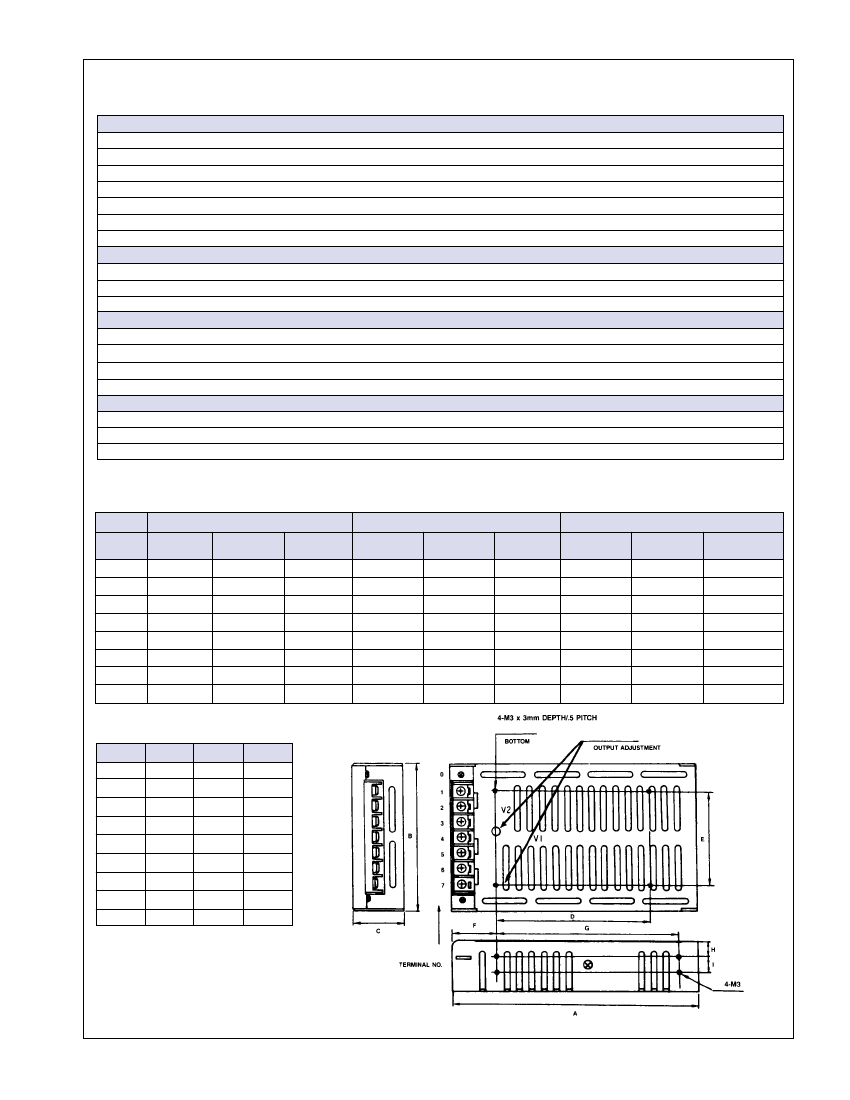

* Output current on 12 volt input model in (
