8996-0-15-01-13-01-04-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> terminals> 8996-0-15-01-13-01-04-0

Preview

8996-0-15-01-13-01-04-0: DescriptionPCB Terminal; CategoryThe connector terminals; File Size73KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

8996-0-15-01-13-01-04-0 Overview

PCB Terminal

8996-0-15-01-13-01-04-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	8996-0
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

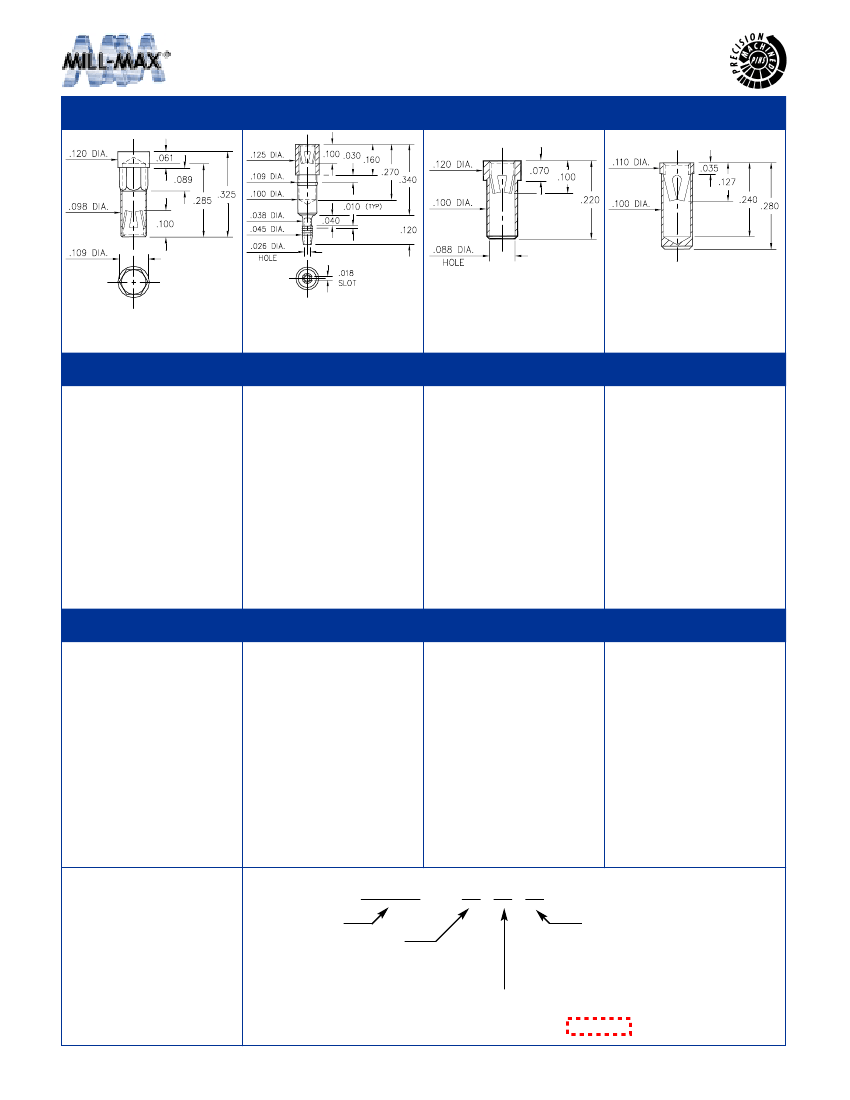

PIN RECEPTACLES

for .048” - .064” diameter pins (#13 contact)

for .045” - .065” diameter pins (#23 contact)

8365

8996

9064

9280

8365-0-15-XX-13-XX-10-0

Hex-pressfit in .106 plated

thru hole.

8996-0-15-XX-13-XX-04-0

Compliant press-fit in .040±.003 plated

hole. For .060→.100 thick board.

9064-0-15-XX-13-XX-10-0

Solder mount in .102 min.

mounting hole

9280-0-15-XX-13-XX-10-0

Solder mount in .102 min.

mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - 15 - XX - XX - XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#13 OR #23

CONTACT (DATA ON PAGE 214)

SPECIFY CONTACT FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

14

10µ"

GOLD OVER

NICKEL

27

30µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

158

8996-0-15-01-13-01-04-0 Related Products

	8996-0-15-01-13-01-04-0	8996-0-15-15-13-14-04-0	8996-0-15-15-13-27-04-0	8996-0-15-15-13-01-04-0	8996-0-15-01-13-27-04-0	8996-0-15-01-13-14-04-0
Description	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal	PCB Terminal
Is it lead-free?	Contains lead	Lead free	Lead free	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	conform to	conform to	incompatible	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	8996-0	8996-0	8996-0	8996-0	8996-0	8996-0
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Terminal and terminal strip types	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL	PCB TERMINAL
Maker	Mill-Max	-	Mill-Max	Mill-Max	Mill-Max	Mill-Max
