KS823C04-TE24R datasheet, PDF - EEWORLD Datasheet

KS823C04-TE24R: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 45V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size32KB，1 Pages; ManufacturerFuji Electric Co., Ltd.

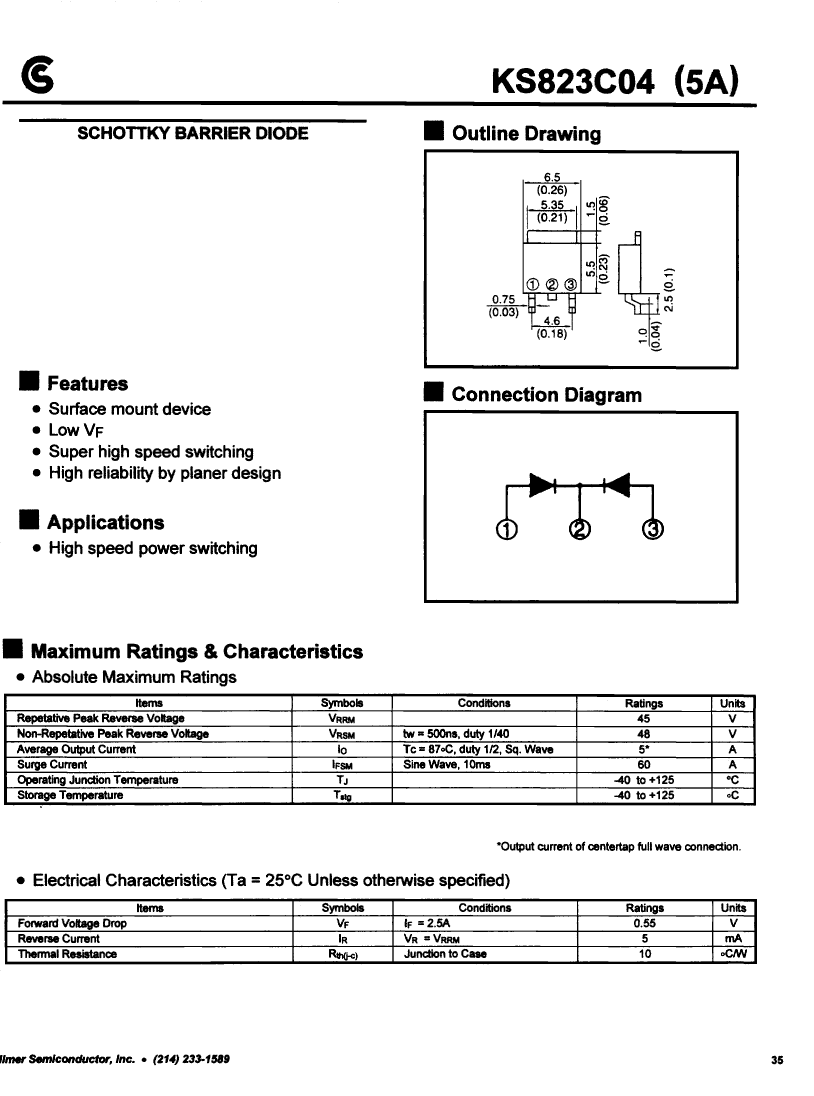

Download Datasheet Parametric Compare View All

KS823C04-TE24R Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 45V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	R-PSSO-G2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
application	POWER
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2
Maximum non-repetitive peak forward current	60 A
Number of components	2
Phase	1
Number of terminals	2
Maximum output current	5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	YES
technology	SCHOTTKY
Terminal form	GULL WING
Terminal location	SINGLE
Base Number Matches	1

	KS823C04-TE24R	KS823C04-TE24L
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 45V V(RRM), Silicon,	Rectifier Diode, Schottky, 1 Phase, 2 Element, 5A, 45V V(RRM), Silicon,
Maker	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.
package instruction	R-PSSO-G2	R-PSSO-G2
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	HIGH RELIABILITY	HIGH RELIABILITY
application	POWER	POWER
Shell connection	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PSSO-G2	R-PSSO-G2
Maximum non-repetitive peak forward current	60 A	60 A
Number of components	2	2
Phase	1	1
Number of terminals	2	2
Maximum output current	5 A	5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V
surface mount	YES	YES
technology	SCHOTTKY	SCHOTTKY
Terminal form	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE
Base Number Matches	1	1
