Classification
MIL-PRF-27 Grade:
MIL-PRF-27 Class:
Maximum Ambient Temperature:
6
S (130° C)
105° C
MIL-STD-981 Quality Assurance Provisions
Class Description
Drawing Number
1
C
Commercial Parts
33038-30
B
Group A Inspection 33038-31B
E
Group A Inspection 33038-31S
S
Group A Inspection 33038-31S and
Group B Inspection 33038-85
1
The germane data will ship with the hardware.
LOAD CONDITIONS
I
DC
(1 - 2) = 3.75 A
P
TOTAL
= 2.59 W
Electrical Characteristics
DC Resistance: (1 - 2) = 184 m
S
Maximum
Inductance (measured at 0.5 V, 10 KHz):
(1 - 2) = 292
:
H ±10%, IDC = 0A
(1 - 2) = 234
:
H Min., IDC = 3.6 A
These Parts Are Manufactured in Strict Compliance to MIL-STD-981.
The “X” in the part number UNLESS OTHERWISE SPECIFIED:
Dimensions are in inches, and
refers to the Quality Level
tolerances are:
TITLE
Decimals
Angles
(C, B, E, or S), see Quality Fractions
Assurance Provisions
above.
DO NOT SCALE DRAWING
±1/64
.X = ± 0.1
.XX = ±0.02
.XXX=±0.010
±5°
COAST/ACM

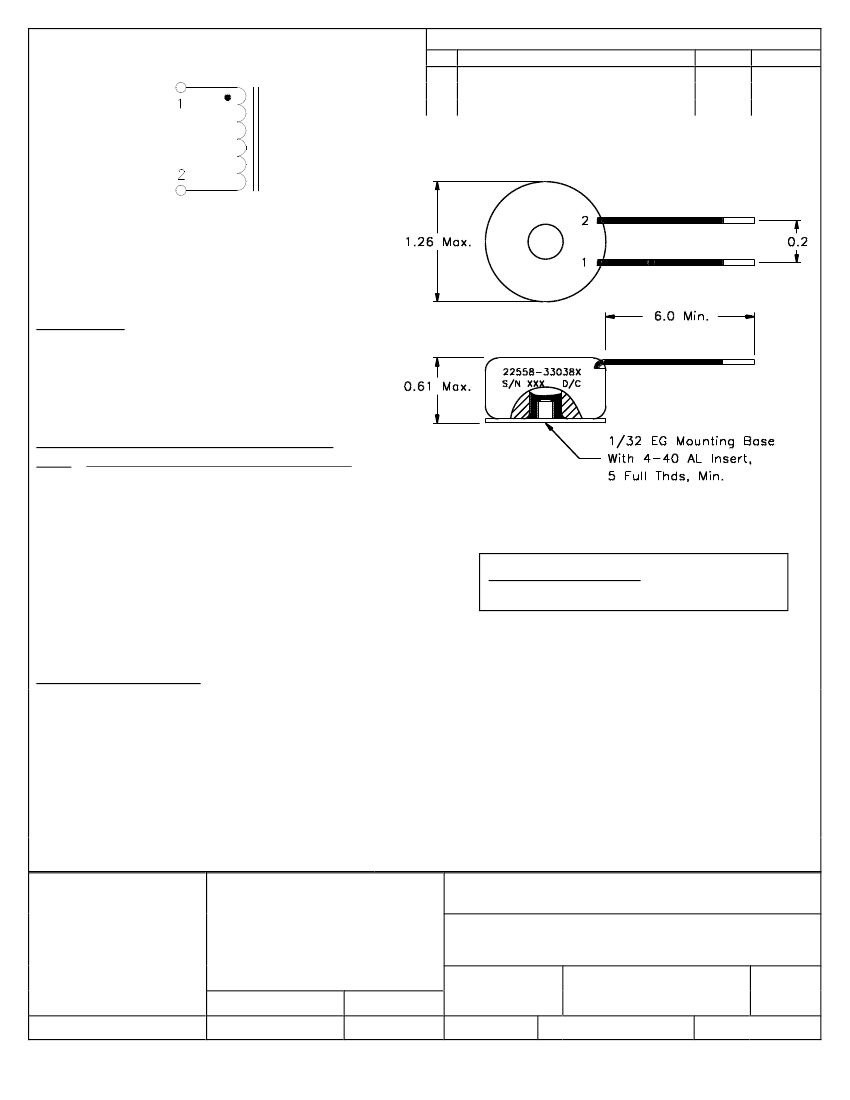

Inductor
DWG. NO
REV.
FSCM
DATE
08/07/03
DRAWN BY
Jim Allen
22558
SCALE: none MAX. WT.:
33038X
38 grams
SHEET 1 OF 1
