BAS116WS-C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BAS116WS-C

BAS116WS-C: DescriptionRectifier Diode, 1 Element, 0.215A, 85V V(RRM), Silicon, HALOGEN AND LEAD FREE PACKAGE-2; CategoryDiscrete semiconductor diode; File Size495KB，2 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric View All

BAS116WS-C Overview

Rectifier Diode, 1 Element, 0.215A, 85V V(RRM), Silicon, HALOGEN AND LEAD FREE PACKAGE-2

BAS116WS-C Parametric

Parameter Name	Attribute value
Maker	SECOS
package instruction	HALOGEN AND LEAD FREE PACKAGE-2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PDSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	0.215 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum power dissipation	0.2 W
Maximum repetitive peak reverse voltage	85 V
Maximum reverse recovery time	0.003 µs
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Base Number Matches	1

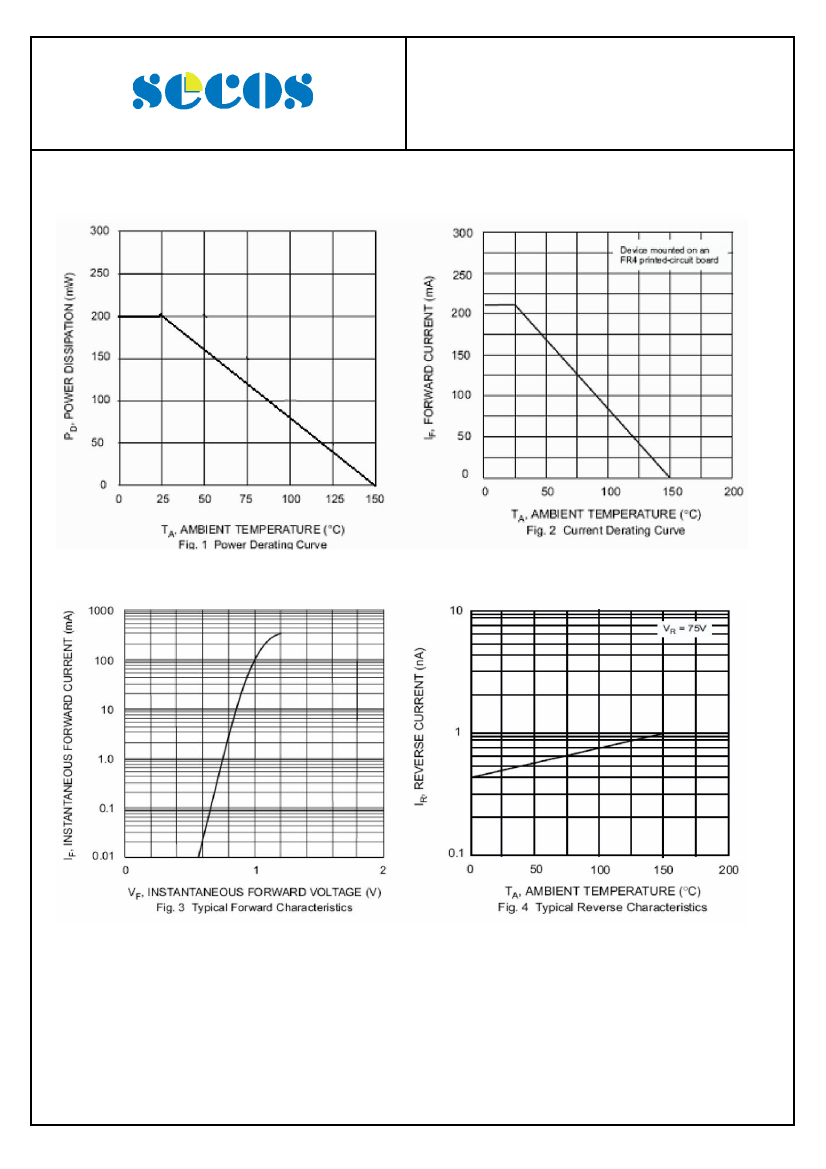

Preview

Download Datasheet

View All

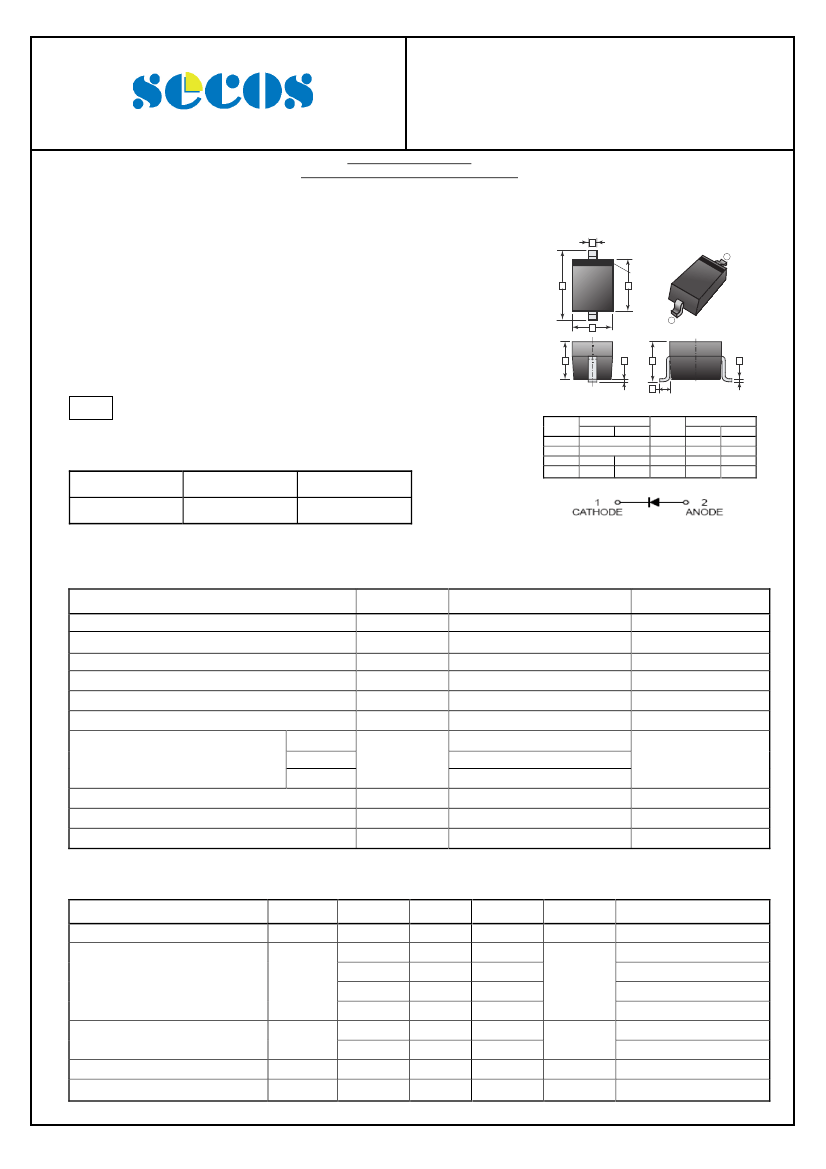

BAS116WS

Elektronische Bauelemente

0.215A , 85V

Surface Mount Small Signal Switching Diode

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES

Low leakage current applications.

Medium speed switching times.

Surface mount package ideally suited for automatic Insertion.

SOD-323

Cathode Band

APPLICATINS

High speed switching application.

MARKING

REF.

Millimeter

Min.

Max.

1.05 REF.

0.20 REF.

0.80

1.00

0.25

0.40

REF.

PACKAGE INFORMATION

Package

SOD-323

MPQ

Leader Size

7 inch

Millimeter

Min.

Max.

0.080

0.180

1.15

1.45

1.60

1.80

2.30

2.70

ABSOLUTE MAXIMUM RATINGS

=25°C unless otherwise specified)

Parameter

Peak Repetitive Peak Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Forward Continuous Current

Repetitive Peak Forward Current

Non-Repetitive Peak Forward Surge

Current

Power Dissipation

Thermal Resistance Junction to Ambient Air

Junction, Storage Temperature

t=1.0µs

t=1.0ms

t=1.0s

FSM

θJA

, T

STG

Symbol

RRM

RWM

R(RMS)

FRM

Ratings

215

500

0.5

200

500

150, -65~150

Unit

° /W

ELECTRICAL CHARACTERISTICS

=25°C unless otherwise specified)

Parameters

Reverse Breakdown Voltage

Symbol

(BR)R

Min.

Typ.

Max.

0.9

1.1

1.25

Unit

Test Conditions

=100µA

=1mA

=10mA

=50mA

=150mA

=75V

=75V, T

=150°

=0, f=1.0MHz

=10mA, I

=0.1xI

Forward Voltage

Reverse Leakage Current

Junction Capacitance

Reverse Recovery Time

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

29-Nov-2011 Rev. A

Page 1 of 2
