ECCM1J-S-13.999M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM1J-S-13.999M

ECCM1J-S-13.999M: DescriptionQUARTZ CRYSTAL RESONATOR, 13.999MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size120KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM1J-S-13.999M Overview

QUARTZ CRYSTAL RESONATOR, 13.999MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ECCM1J-S-13.999M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	SERIES - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.002%
frequency tolerance	15 ppm
JESD-609 code	e4
Manufacturer's serial number	ECCM1
Installation features	SURFACE MOUNT
Nominal operating frequency	13.999 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	90 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

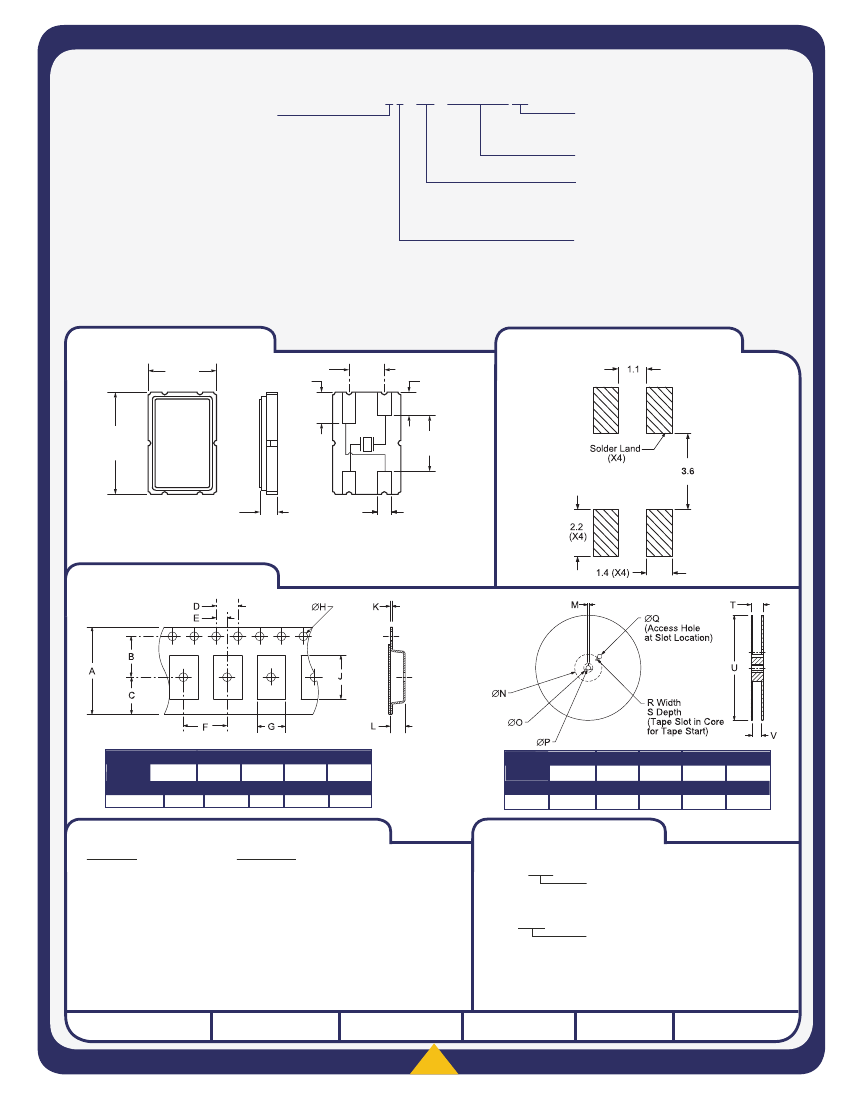

ECCM1

Series

• RoHS Compliant (Pb-Free)

• Four pad ceramic SMD package

• AT cut

• Tight tolerance/stability

• Frequencies to 70.000MHz available

• Tape and reel available

NOTES

ECCM1

1.3

7.0

5.0

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Aging (at 25°C)

Spurious Response

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Drive Level

Load Capacitance (C

)

7.680MHz to 70.000MHz

±50ppm / ±100ppm (Standard), ±30ppm / ±50ppm,

±15ppm / ±30ppm, ±15ppm / ±20ppm, or ±10ppm / ±15ppm

0°C to 70°C (Standard), -20°C to 70°C, or -40°C to 85°C

±3ppm / year Maximum

-3dB Minimum; F

to F

+5000ppm

-40°C to 85°C

7pF Maximum

500 Megaohms Minimum at 100V

50 µWatts Maximum, 50 µWatts Correlation

18pF Parallel Resonant (Standard)

Series Resonant

12pF Parallel Resonant to 50pF Resonant

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency Range

7.680MHz to 9.999MHz

10.000MHz to 10.999MHz

11.000MHz to 13.999MHz

14.000MHz to 15.999MHz

MANUFACTURER

ESR (Ω)

90 Max

60 Max

50 Max

40 Max
