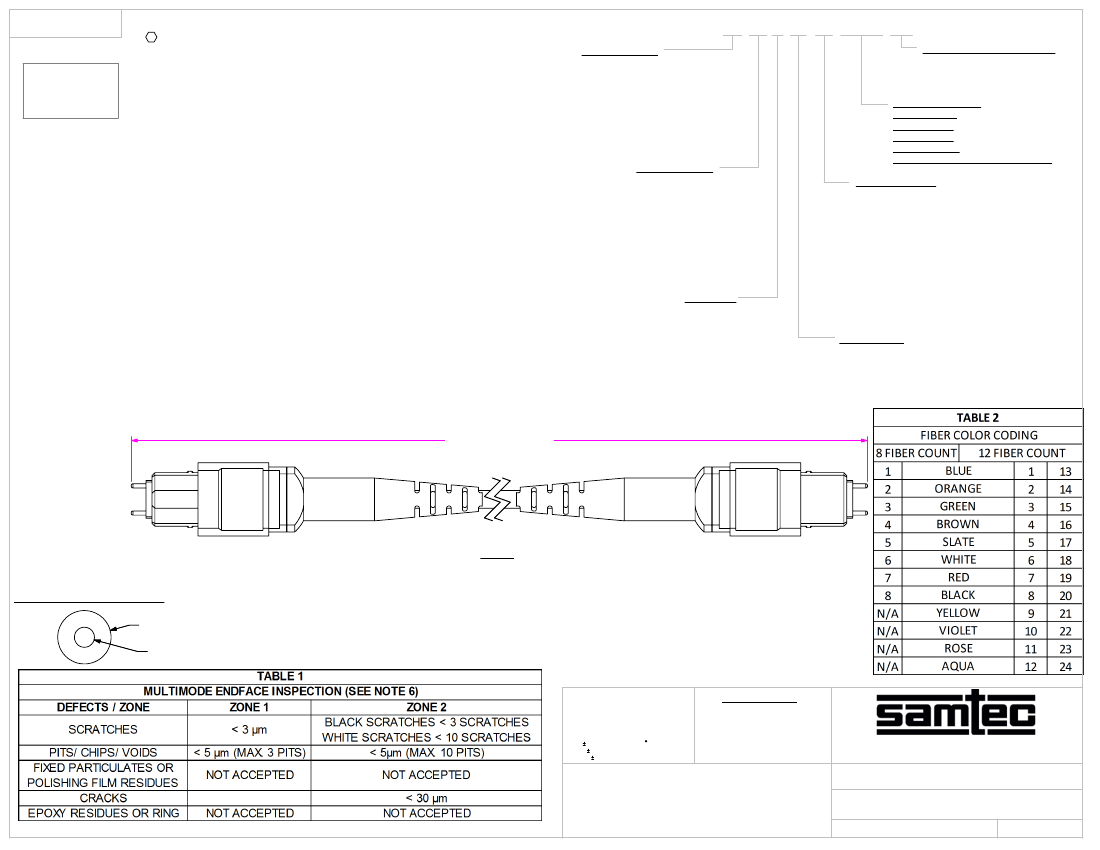

REVISION F
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1. C REPRESENTS A CRITICAL DIMENSION.
2. VENDOR TO SUPPLY INSERTION LOSS DATA.
3. OM3 FIBER IS STANDARD UNLESS REQUESTED.
4. END OPTION 2 MUST MATCH END OPTION 1; OTHER COMBINATIONS NOT TOOLED.
5. CABLES MUST BE SUPPLIED WITH PROTECTIVE END CAPS.
6. VENDOR TO INSPECT ENDFACE PER REQUIREMENTS IN TABLE 1.
7. MIN LENGTH FOR XC-XC CABLES IS 2.5M.
8. REMOVAL OF DUPLEX CLIP FROM -04 END OPTION REQUIRED TO GET -03 END OPTION.
9. END FACE TO HAVE A MINIMUM OF PC POLISH. REFER TO TABLES 1+3, AND IEC61300-3-35
FOR INSPECTION CRITERIA.
10.THESE CABLE TYPES REQUIRE CORNING BRAND "CLEAR CURVE" FIBERS
FOP-XX-XX-X-XX-XX-XXX.X-X.X
END 1 OPTIONS
*-01: MPO, MALE
*-02: MPO, FEMALE
*-03: LC, SIMPLEX, (SEE NOTE 8)
-04: LC, DUPLEX
*-05: FC
-06: MTP, MALE
-07: MTP, FEMALE
-08: MT FERRULE MALE
-09: MT FERRULE FEMALE
END 2 OPTIONS
(SEE NOTE 4)
* -01: MPO, MALE
* -02: MPO, FEMALE
* -03: LC, SIMPLEX, (SEE NOTE 8)
-04: LC, DUPLEX
*-05: FC
-06: MTP, MALE
-07: MTP, FEMALE
-08: MT FERRULE MALE
-09: MT FERRULE FEMALE
FIBER TYPE
-2: OM2
-3: OM3
-4: OM4
-5:OM5
-6: OM2, CC (SEE NOTE 10)
-7: OM3, CC (SEE NOTE 10)
-8: OM4, CC (SEE NOTE 10)
FANOUT LENGTH (METERS)
** -1.0
(LEAVE BLANK FOR MTP,
MPO, AND MT)
LENGTH (METERS)
(SEE NOTE 7)
-003.2: 3.2M
-006.2: 6.2M
-020.2: 20.2M
(OTHER LENGTH NOT STOCKED)
CONSTRUCTION
-01: ROUND OFNP, 3.0mm CABLE
DIAMETER (MTP, MPO AND MT ONLY)
-02: ROUND OFNP, 3.0mm CABLE
DIAMETER, 2.0mm FANOUT DIAMETER
(XC-XC ONLY)
-03: ROUND OFNP, 2MM LOOSE JACKET, NO
ARAMID FIBER(MTP, MPO AND MT ONLY)
-04: FLAT, BARE RIBBON,
(MTP, MPO AND MT ONLY)
-05: FLAT BARE RIBBON, PEELABLE
(MTP, MPO AND MT ONLY)
-06: LOOSE FIBER; NO JACKET OR ARAMID
(MTP, MPO AND MT ONLY)
FIBER COUNT
-08: 8 FIBER(XC-XC ONLY)
-12: 12 FIBER
-24: 24 FIBER (DUAL 12 FIBER RIBBONS)
* = NOT AVAILABLE AS STANDARD.

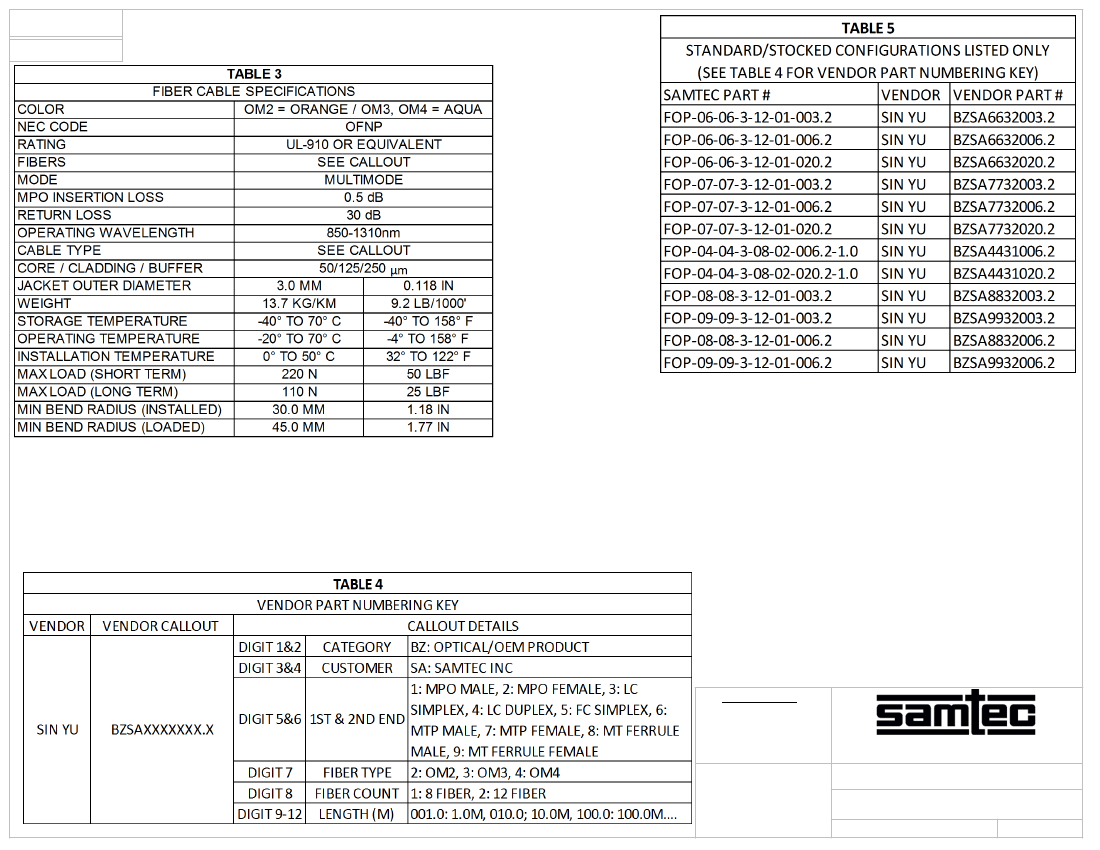

(SEE TABLE 5 FOR STD STOCKED CONFIGURATIONS)
** = STANDARD FOR XC-XC.
*** = NOT RELEASED
LENGTH +5%/-0%
(OVERALL LENGTH)
FIG
1
(-01/-06 SHOWN)
END FACE INSPECTION
~125µm CLADDING (ZONE 2)
~50µm CORE (ZONE 1)
TOLERANCES DO NOT APPLY
TO REFERENCE DIMENSIONS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
ANGLES
2
.XX: .01[.3]
.XXX: .005[.13]
.XXXX: .0020[.051]
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:3
FIBER OPTIC PATCH CABLE
FOP-XX-XX-X-XX-XX-XXX.X-X.X
10/03/2011
SHEET
1
OF
4
c:\enterprisevault\DWG\MISC\MKTG\FOP-XX-XX-X-XX-XX-XXX.X-X.X-MKT.SLDDRW
BY:
NIELS E.

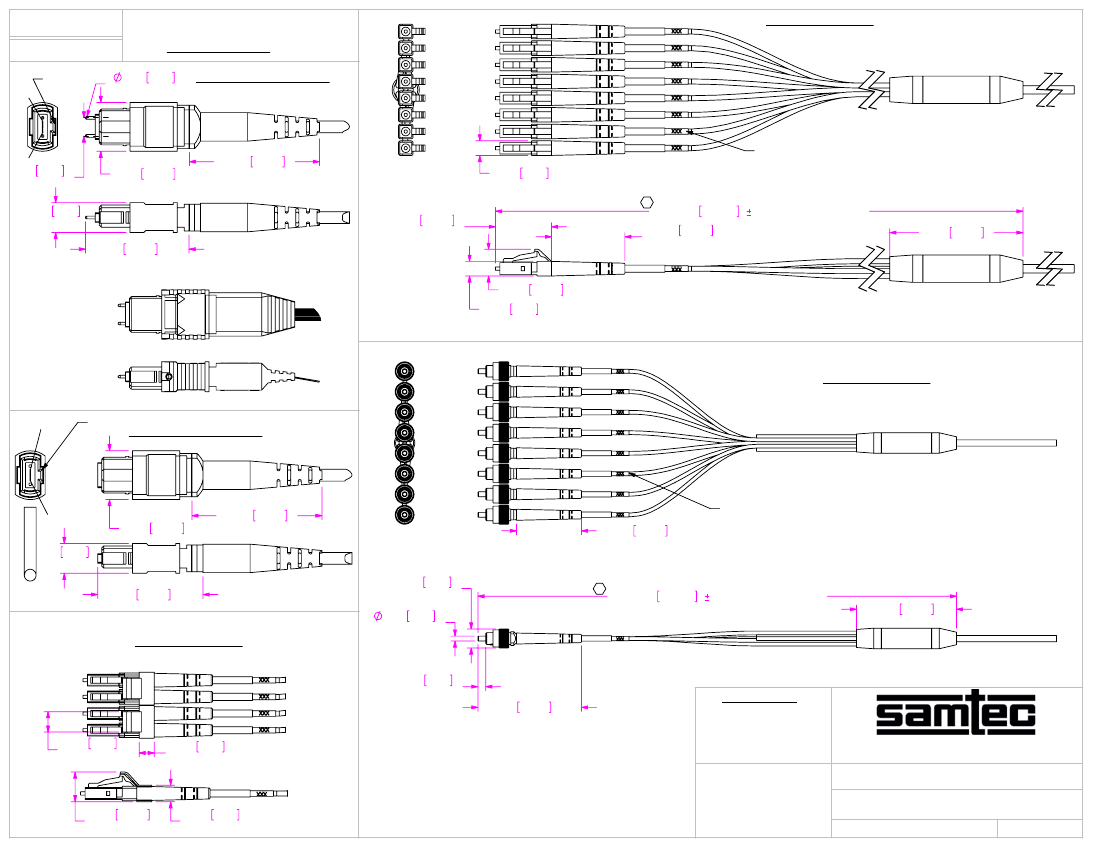

FOP-XX-XX-X-XX-XX-XXX.X-X.X
-03 END OPTION
REVISION F
KEY SIDE
01
EITHER END
.024 0.60
REF (2 PLCS)
(SEE NOTE 8)
-01/-06 END OPTION
(-01 CONSTRUCTION)
12
.181 4.60
REF
.299 7.60
REF
.488 12.39 REF
1.300 33.03
.218 5.54 REF
C
EACH LINE TO BE LABELED WITH
CORRESPONDING FIBER NUMBER
.843 21.40
REF
1.035 26.30 REF
.400 10.16 REF
.219 5.56 REF
LENGTH 239.84
2% (FANOUT LENGTH)
2.00 50.80
1.100 27.94
REF
-05 END OPTION
KEY SIDE
01
-02/-07 END OPTION
12
.488 12.39 REF
.299 7.60
REF
1.051 26.70 REF
1.300 33.03
1.300 33.02 REF
EACH LINE TO BE LABELED WITH
CORRESPONDING FIBER NUMBER
.380 9.65
REF
.098 2.50
REF
C
LENGTH 243.10
2% (FANOUT LENGTH)
2.00 50.80
SAME AS -03 EXCEPT AS SHOWN
.157 3.98
REF
-04 END OPTION
2.071 52.60 REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
.307 7.80
REF
.225 5.72
REF
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
FIBER OPTIC PATCH CABLE
.444 11.29
REF
.245 6.22
REF
SHEET SCALE: 2:3
c:\enterprisevault\DWG\MISC\MKTG\FOP-XX-XX-X-XX-XX-XXX.X-X.X-MKT.SLDDRW
BY:
NIELS E.
FOP-XX-XX-X-XX-XX-XXX.X-X.X
10/03/2011
SHEET
2
OF
4
FOP-XX-XX-X-XX-XX-XXX.X-X.X
REVISION F

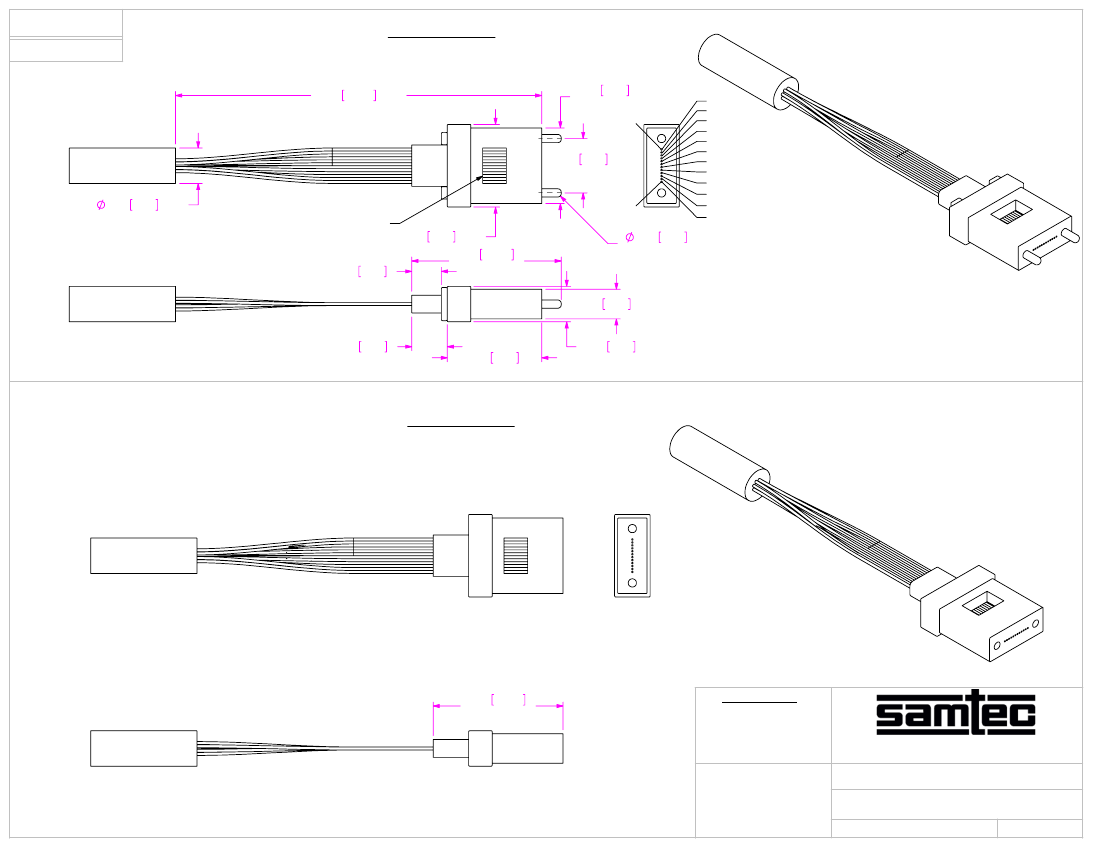

-08 END OPTION
(MT FERRULE MALE)
.787 20.00 REF
.252 6.40
REF
12
.181 4.60
REF
.118 3.00 REF
EPOXY
POCKET
01
.276 7.00 REF
.498 12.65
REF
.024 0.60
REF(2 PLCS)
AQUA
ROSE
VIOLET
YELLOW
BLACK
RED
WHITE
SLATE
BROWN
GREEN
ORANGE
BLUE
.098 2.50
.098 2.50 REF
.118 3.00
.315 8.00
.118 3.00 REF
(MT FERRULE FEMALE)
SAME AS -08 EXCEPT AS SHOWN
-09 END OPTION
.433 11.00
REF
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
FIBER OPTIC PATCH CABLE
SHEET SCALE: 2:3
c:\enterprisevault\DWG\MISC\MKTG\FOP-XX-XX-X-XX-XX-XXX.X-X.X-MKT.SLDDRW
FOP-XX-XX-X-XX-XX-XXX.X-X.X
10/03/2011
SHEET
3
OF
4
BY:
NIELS E.
FOP-XX-XX-X-XX-XX-XXX.X-X.X
REVISION F
≥
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
FIBER OPTIC PATCH CABLE
SHEET SCALE: 2:3
c:\enterprisevault\DWG\MISC\MKTG\FOP-XX-XX-X-XX-XX-XXX.X-X.X-MKT.SLDDRW
FOP-XX-XX-X-XX-XX-XXX.X-X.X
10/03/2011
SHEET
4
OF
4
BY:
NIELS E.
