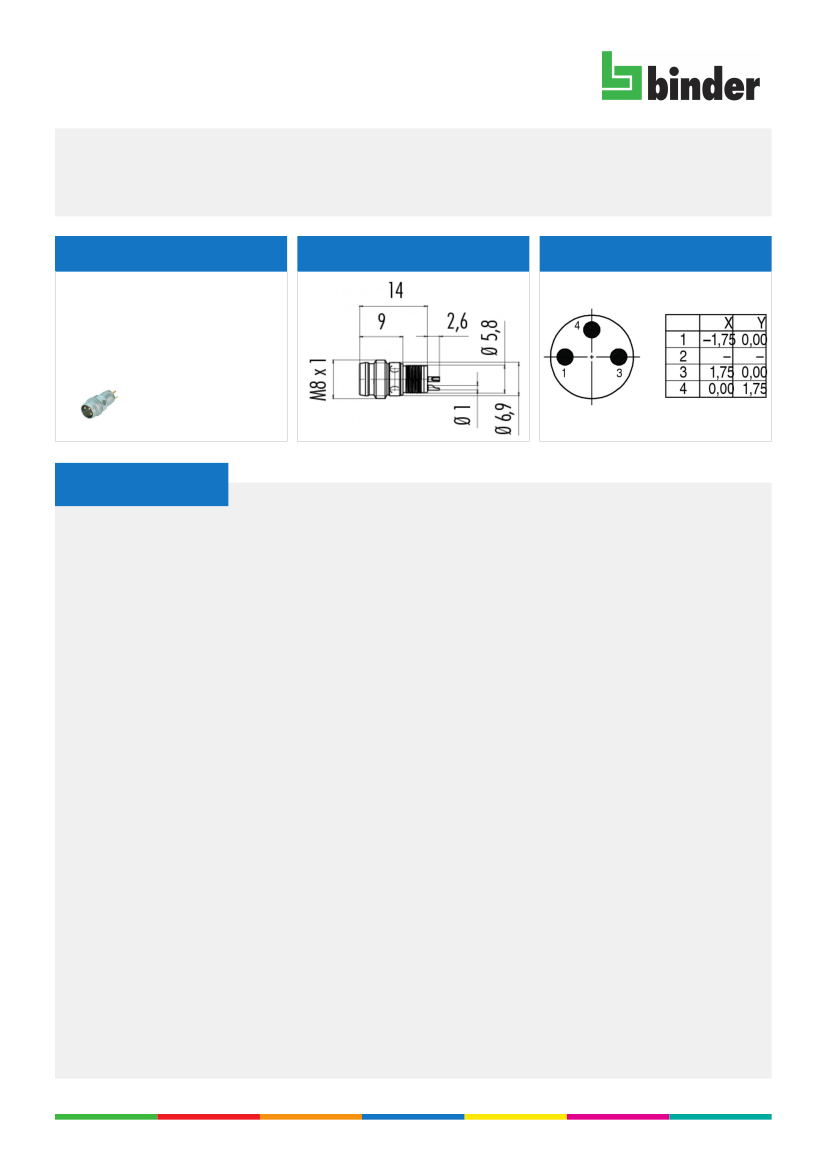

Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
Contacts: 3, integrated plug, combination version
M8 Series 768/718
86 6919 0002 00703
Illustration
Scale drawing
Contact arrangement
Technical data
General values
Connector design
Connector locking system
Termination
Wire gauge (mm)
Wire gauge (AWG)
Upper limit temperature
Lower limit temperature
integrated plug
snap
solder
0.25 mm²
24
70 °C
-40 °C
Electrical values
Rated current (40 °C)
Rated voltage
Rated impulse voltage
Pollution degree
Overvoltage category
Insulating material group
Volume resistivity
EMC compliance
Degree of protection
Mechanical operation
4A
60 V
1500 V
3
II
II
≤ 3 mΩ
not shielded
IP65
> 100 Mating cycles
Material
Contact material
Contact plating
Contact body material
CuZn (brass)
Au (gold)
PA
Date: 2019-02-25 - Page 1 of 2
Product data sheet
Automation technology - sensors and actuators
Product description
Area
Order number
Contacts: 3, integrated plug, combination version
M8 Series 768/718
86 6919 0002 00703
Security notices
The connectors are designed for use in plant, control system and electrical equipment. The end user is responsible
for checking whether the connectors are suitable for use in other applications.
Connectors with degree of protection IP 67 and IP 68 are not suitable for use under water. When used outdoors, the
connectors must be separately protected against corrosion. For further information about IP degrees of protection
refer to ‘Technical support’ in the Download Centre.
Date: 2019-02-25 - Page 2 of 2
