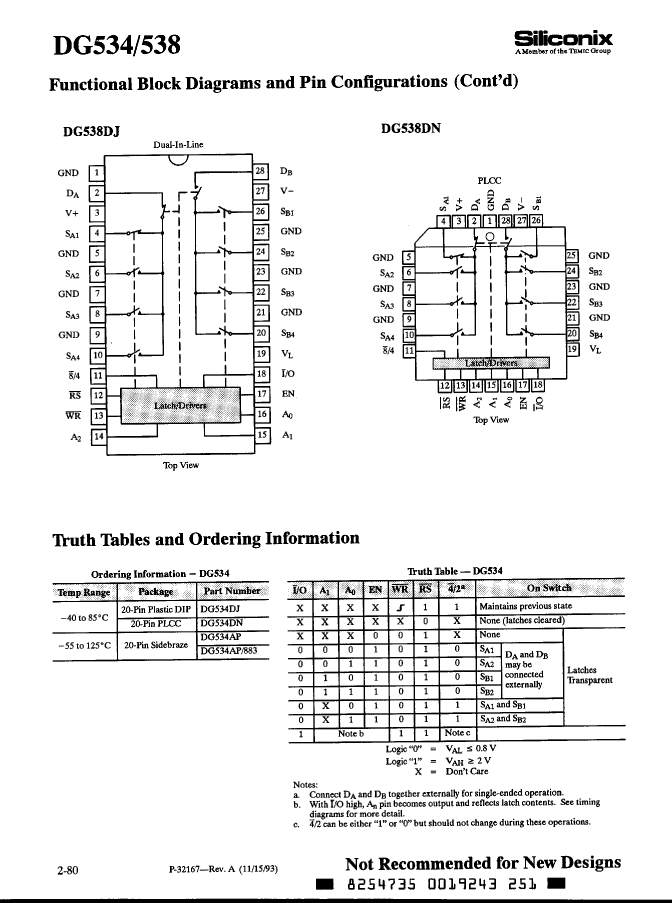

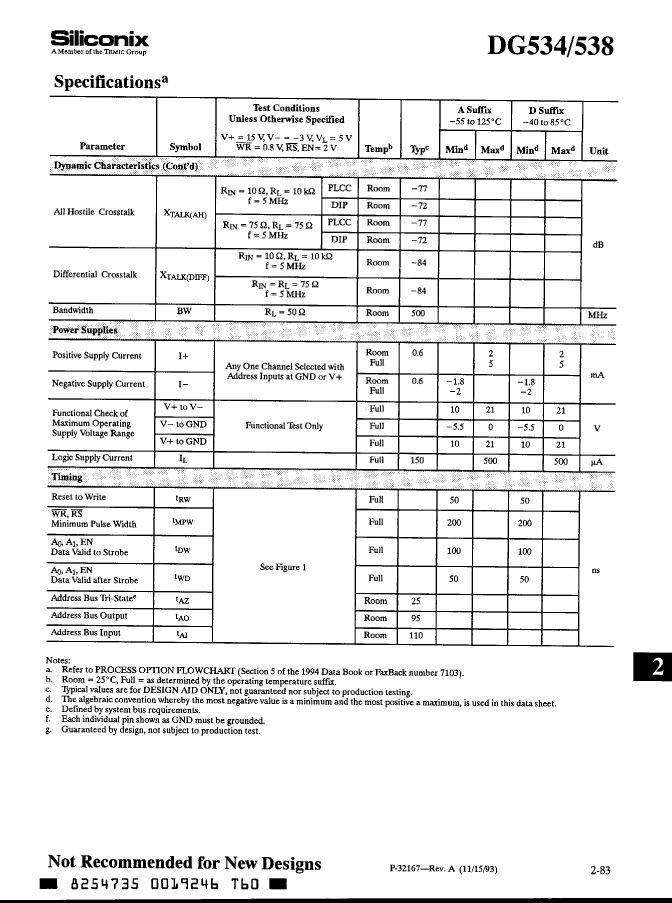

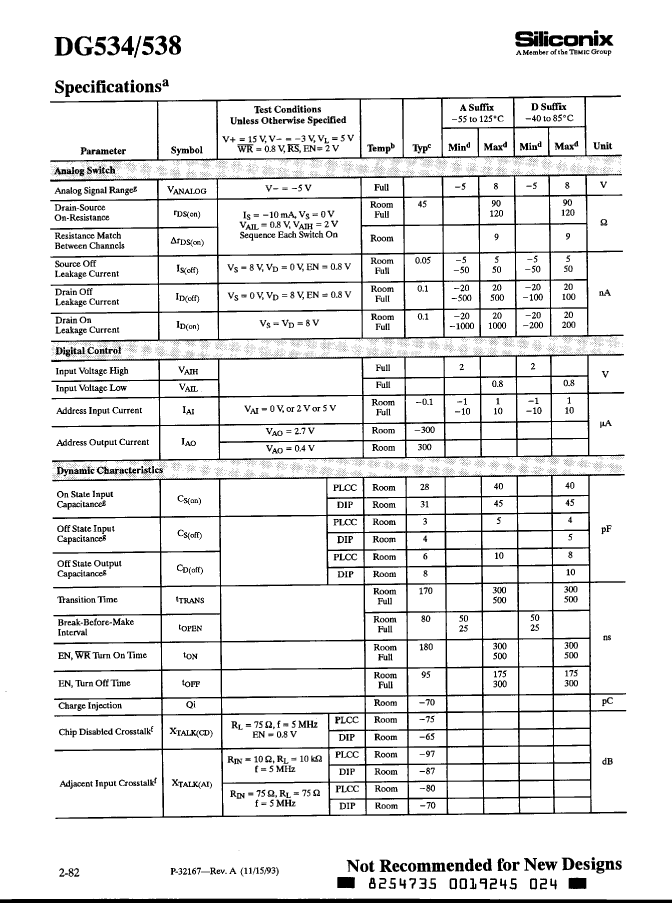

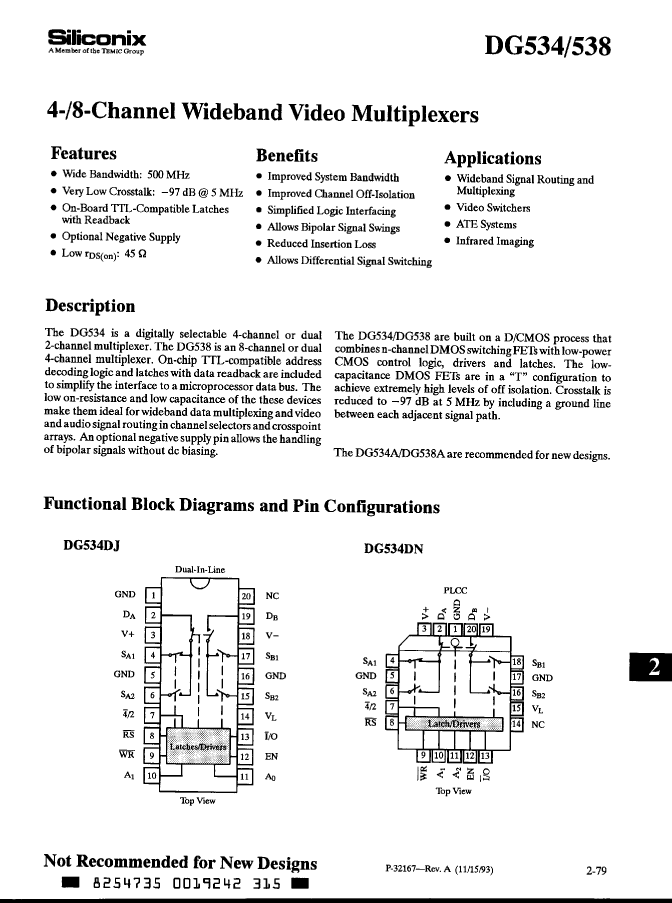

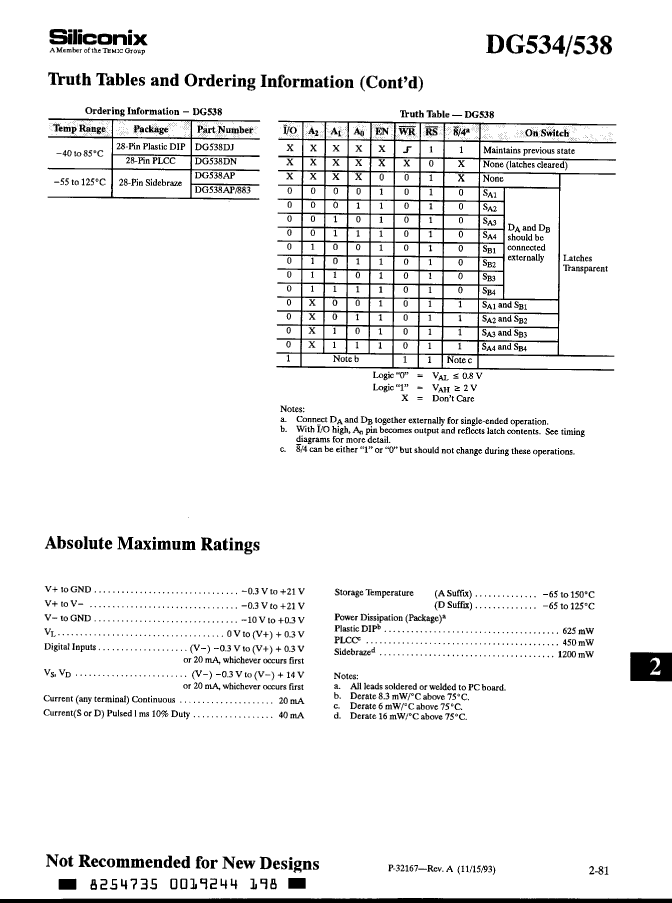

Preview

DG538DJ: DescriptionSingle-Ended Multiplexer, 2 Func, 4 Channel, PDIP28; CategoryAnalog mixed-signal IC The signal circuit; File Size423KB，7 Pages; ManufacturerVishay; Websitehttp://www.vishay.com

Download Datasheet Parametric Compare View All

DG538DJ Overview

Single-Ended Multiplexer, 2 Func, 4 Channel, PDIP28

DG538DJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vishay
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
Number of channels	4
Number of functions	2
Number of terminals	28
Maximum on-state resistance (Ron)	120 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,15,-3 V
Certification status	Not Qualified
Maximum signal current	0.02 A
surface mount	NO
Maximum connection time	300 ns
switch	BREAK-BEFORE-MAKE
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

Preview

Download Datasheet

View All

DG538DJ Related Products

	DG538DJ	DG534DN	DG538AP	DG538AP/883	DG538DN	DG534DJ	DG534AP	DG534AP/883
Description	Single-Ended Multiplexer, 2 Func, 4 Channel, PDIP28	Video Multiplexer, 1 Func, 4 Channel, NMOS, PQCC20, PLASTIC, LCC-20	Video Multiplexer, 1 Func, 8 Channel, NMOS, CDIP28, SIDEBRAZED, CERAMIC, DIP-28	Single-Ended Multiplexer, 2 Func, 4 Channel, CDIP28	Single-Ended Multiplexer, 2 Func, 4 Channel, PQCC28	Video Multiplexer, 1 Func, 4 Channel, NMOS, PDIP20, PLASTIC, DIP-20	Video Multiplexer, 1 Func, 4 Channel, NMOS, CDIP20, SIDEBRAZED, CERAMIC, DIP-20	Video Multiplexer, 1 Func, 4 Channel, NMOS, CDIP20, SIDEBRAZED, CERAMIC, DIP-20
Maker	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay	Vishay
Parts packaging code	DIP	QLCC	DIP	DIP	QLCC	DIP	DIP	DIP
package instruction	DIP, DIP28,.6	QCCJ,	DIP,	DIP, DIP28,.6	QCCJ, LDCC28,.5SQ	DIP,	DIP,	DIP,
Contacts	28	20	28	28	28	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SINGLE-ENDED MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER	VIDEO MULTIPLEXER
JESD-30 code	R-PDIP-T28	S-PQCC-J20	R-CDIP-T28	R-XDIP-T28	S-PQCC-J28	R-PDIP-T20	R-CDIP-T20	R-CDIP-T20
Number of channels	4	4	8	4	4	4	4	4
Number of functions	2	1	1	2	2	1	1	1
Number of terminals	28	20	28	28	28	20	20	20
Maximum on-state resistance (Ron)	120 Ω	90 Ω	90 Ω	120 Ω	120 Ω	90 Ω	90 Ω	90 Ω
Maximum operating temperature	85 °C	85 °C	125 °C	125 °C	85 °C	85 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C	-55 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	QCCJ	DIP	DIP	QCCJ	DIP	DIP	DIP
Package shape	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	YES	NO	NO	YES	NO	NO	NO
Maximum connection time	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns	300 ns
Temperature level	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	J BEND	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	QUAD	DUAL	DUAL	QUAD	DUAL	DUAL	DUAL
Other features	-	SELECTABLE DUAL 2-CHANNEL	SELECTABLE DUAL 4-CHANNEL	-	-	SELECTABLE DUAL 2-CHANNEL	SELECTABLE DUAL 2-CHANNEL	SELECTABLE DUAL 2-CHANNEL
length	-	8.9662 mm	25.525 mm	-	-	25.905 mm	25.525 mm	25.525 mm
Nominal Negative Supply Voltage (Vsup)	-	-3 V	-3 V	-	-	-3 V	-3 V	-3 V
On-state resistance matching specifications	-	9 Ω	9 Ω	-	-	9 Ω	9 Ω	9 Ω
Maximum seat height	-	4.57 mm	4.44 mm	-	-	5.08 mm	4.44 mm	4.44 mm
Maximum supply current (Isup)	-	5 mA	5 mA	-	-	5 mA	5 mA	5 mA
Nominal supply voltage (Vsup)	-	15 V	15 V	-	-	15 V	15 V	15 V
Maximum disconnect time	-	175 ns	175 ns	-	-	175 ns	175 ns	175 ns
technology	-	NMOS	NMOS	-	-	NMOS	NMOS	NMOS
width	-	8.9662 mm	7.62 mm	-	-	7.62 mm	7.62 mm	7.62 mm
