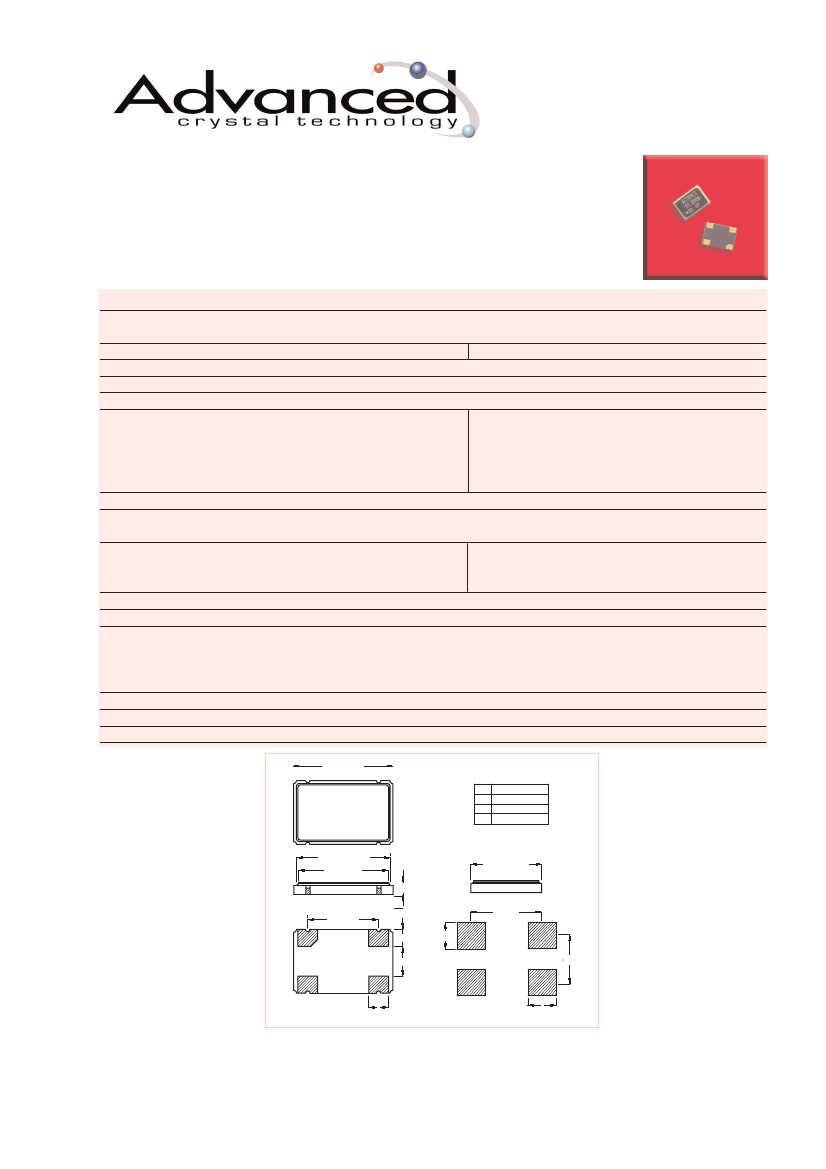

ACT9200
The Act9200 family is a miniature low profile Surface Mount package, housed in a ceramic
leadless chip carrier with a seam welded metal lid.
This 7 x 5mm device can be used in a wide range of applications where board space dictates
small size and automatic assembly is a requirement. It is suitable for design into many
applications including Communications equipment, Audio Visual units, Measuring Instruments and
many more
Parameter
Supply Voltage
Frequency Range
Frequency Stability
Temp Operating Range
Temp Storage Range
Supply Current (max)
Symbol
V
DD
fo
∆f/fo
Topr
Tstg
Iop
3.3V
DC
± 10%
1.000 ~ 155.00MHz
Specification
5.0V
DC
±10%
1.500 ~ 106.250MHz
(& ±15ppm 3.3V)
Please specify
Condition
16mA
25mA
40mA
50mA
±25ppm ~ ±100ppm
0 ~ +70°C Std
( -40 ~ +85°C available)
-55 to +125°C
(1.000 ~ 34.999MHz)
20mA (1.50 ~ 23.90MHz)
(35.000 ~ 60.00MHz)
40mA (24.00 ~ 49.99MKHz)
(60.001 ~ 99.999MHz)
50mA (50.00 ~ 59.90MHz)
(100.00 ~ 155.00MHz)
60mA (90.00 ~ 99.90MHz)
80mA (100.00 ~ 106.25MHz)
40/60% ( 45/55% available)
max (TTL)
10% V
DD
max (HCMOS)
min (TTL)
90% V
DD
min (HCMOS)
10nS (1.50 ~ 49.999MHz)
5nS (50.00MHz ~ 70.00MHz)
3nS (100.00 ~ 106.25MHz)
Duty Cycle
Output Level ‘0’
Output Level ‘1’
Rise & Fall Time (max)
Tw/t
VOH
VOL
Tr/Tf
Please specify
0.4V
DC
2.4V
DC
10nS (1.000 ~ 34.999MHz)
5nS (35.00 ~ 99.999MHz)
2.5nS x (100.00 ~ 157.00MHz)
Output Load
Star-up Time
Enable / Disable Function
(Pin 1 : E/D Control Pin)
(Pin 3 : Output Pin)
Aging
Period Jitter (Absolute)
Period Jitter (one sigma)
7.0 + 0.2
-
10TTL / 15pF (30pF available)
10mS max
Pin 1
Pin 3
OPEN
2.2V
0.8V
Active
Active
High Impedance
Please specify
±3ppm, ±5ppm / year max
100pS max
25pS max
@25°C
Pin connections
#1
#2
#3
#4
Tri-State
Ground
Output
Vdd
6.45 + 0.2
-
6.2 + 0.2
-
1.7 + 0.2
-
5.08
Dimensions in mm
5.0 + 0.2
-
5.08
#2
#1
1.2
2.6
2.0
4.2
#4
1.4
1.8
Suggested Footprint
Please note that not all parameters can necessarily be specified in a single device
ISO9002 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
www.advancedcrystaltechnology.com
Issue 1 D2 18/7/02
