The ACTF4014/480.0/QCC8C is an IF filter for DBS receivers with constant group
delay. The device is housed in a QCC8C package. Centre frequency ; 480.0MHz.

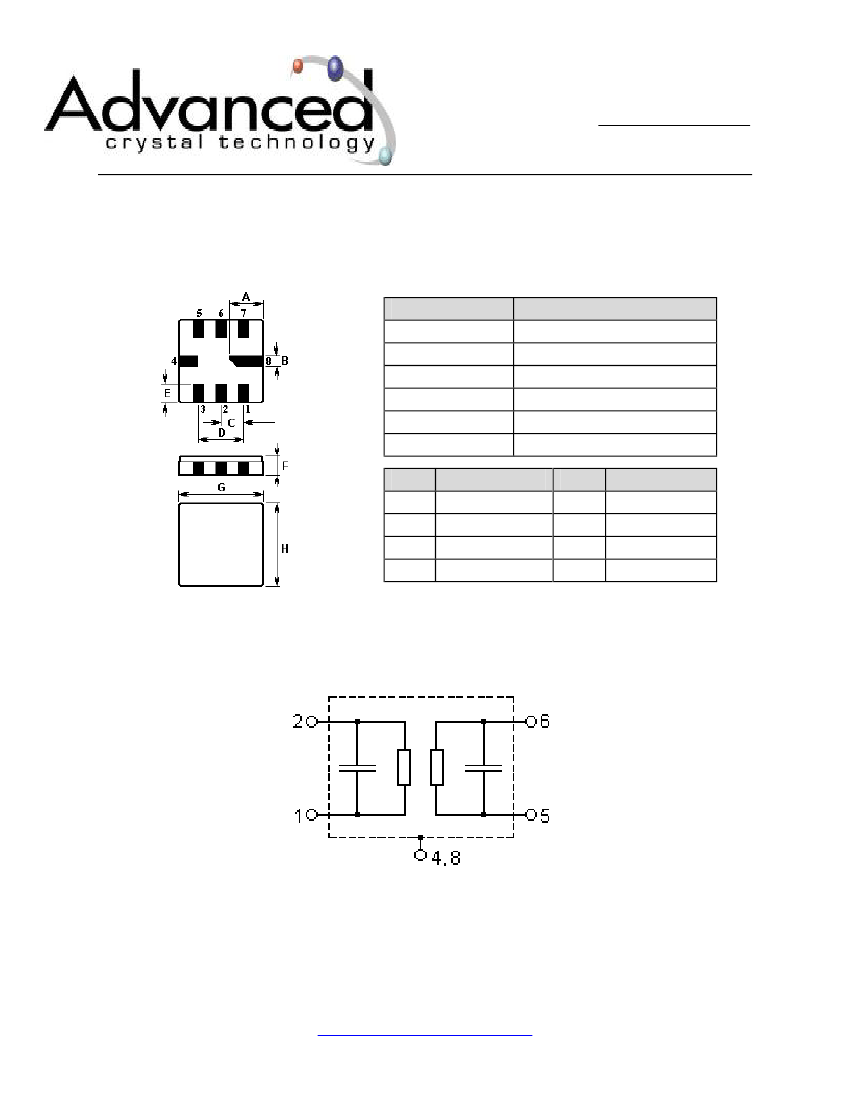

1.Package Dimension
(QCC8C)
2.
Pin
2
1
6
5
3, 7
4,8
Sign
A
B
C
D
Data (unit: mm)
2.08
0.60
1.27
2.54
Connection
Input
Input Ground
Output
Output Ground
To be Grounded
Case Ground
Sign
E
F
G
H
Data (unit: mm)
1.20
1.35
5.00
5.00
3.Equivalent LC Model
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com

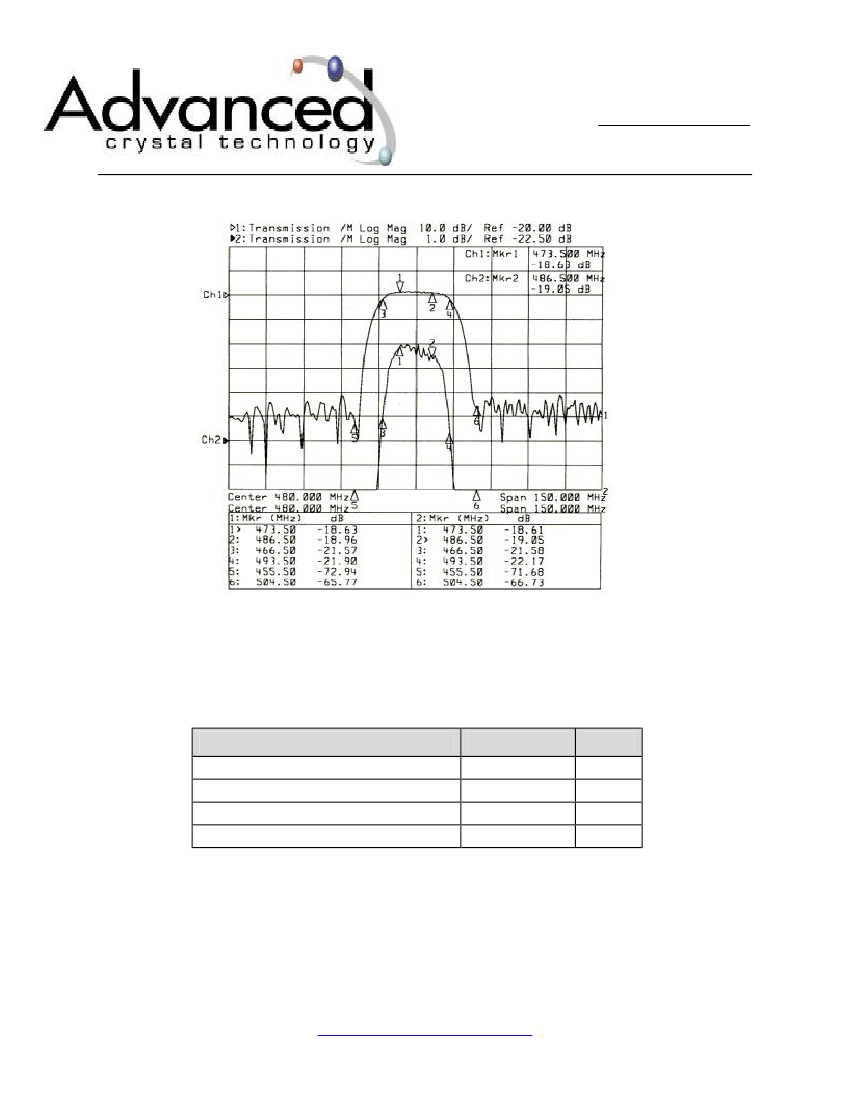

4.Typical Frequency Response
5.Performance
5-1.Maximum Ratings
Rating
AC Voltage Between Any Two Pins
DC Voltage Between Any Two Pins
Storage temperature range
Operable temperature range
V
pp
V
DC
T
stg
T
A
Value
5
0
-40 to +85
-25 to +85
Unit
V
V
°C
°C
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
Tel : +44 118 979 1238
Fax : +44 118 979 1283
Email: info@actcrystals.com
5-2.Electronic Characteristics
Reference temperature:
T
A
= 25
°C
Z
S
= 50
Ω
Terminating source impedance:
Terminating load impedance:
Z
L
= 50
Ω
Group delay aperture:
0.25MHz
Characteristic
Centre Frequency
Insertion attenuation
480.00 MHz
(Reference level for the following data)
Pass bandwidth
Relative attenuation
466.50 MHz
493.50 MHz
430.00 ….455.50 MHz
504.50 … 530.00 MHz
α
rel
≤3dB
f
C
α
B
3dB
α
rel
--
--
40.0
38.0
40.0
Δα
--
--
Δ
τ
TC
f
--
--
3.0
3.2
46.0
43.0
46.0
0.6
227.5
8.5
-86
4.6
4.6
--
--
--
1.0
--
15
--
dB
dB
dB
dB
dB
dB
ns
ns
ppm/K
Min.
479.00
--
25.6
Typical
480.00
22.5
26.6
Max.
481.00
24
27.6
Unit
MHz
dB
MHz
Lower sidelobe
Upper sidelobe
Reflected wave signal suppression
0.15μs … 2.0μs after main pulse
Amplitude ripple (p-p)
Group delay
Group delay ripple (p-p)
473.50 … 486.50 MHz
480.00 MHz
467.00 … 493.00 MHz
τ
Temperature coefficient of frequency
i
CAUTION: Electrostatic Sensitive Device. Observe precautions for handling!
1.
2.
The frequency f
C
is defined as the midpoint between the 3dB frequencies.
Unless noted otherwise, all measurements are made with the filter installed in the specified test fixture that is
connected to a 50Ω test system with VSWR≤1.2:1. The test fixture L and C are adjusted for minimum insertion
loss at the filter centre frequency, f
C
. Note that insertion loss, bandwidth, and passband shape are dependent on
the impedance matching component values and quality.
Unless noted otherwise, specifications apply over the entire specified operating temperature range.
The specifications of this device are based on the test circuit shown above and subject to change or
obsolescence without notice.
All equipment designs utilizing this product must be approved by the appropriate government agency prior to
manufacture or sale.
Our liability is only assumed for the Surface Acoustic Wave (SAW) component(s) per se, not for applications,
processes and circuits implemented within components or assemblies.
3.
4.
5.
6.
In keeping with our ongoing policy of product evolvement and improvement, the above specification is subject to change without notice.
ISO9001: 2000 Registered - Registration number 6830/2
For quotations or further information please contact us at:
3 The Business Centre, Molly Millars Lane, Wokingham, Berks, RG41 2EY, UK
Issue : 1 C1
Date : SEPT 04
http://www.actcrystals.com
