54FCT273LMQB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54FCT273LMQB

54FCT273LMQB: DescriptionD Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20,; Categorylogic logic; File Size345KB，8 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54FCT273LMQB Overview

D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20,

54FCT273LMQB Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	D FLIP-FLOP
Maximum Frequency@Nom-Sup	90000000 Hz
MaximumI(ol)	0.048 A
Number of functions	8
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Prop。Delay @ Nom-Sup	9.5 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
Base Number Matches	1

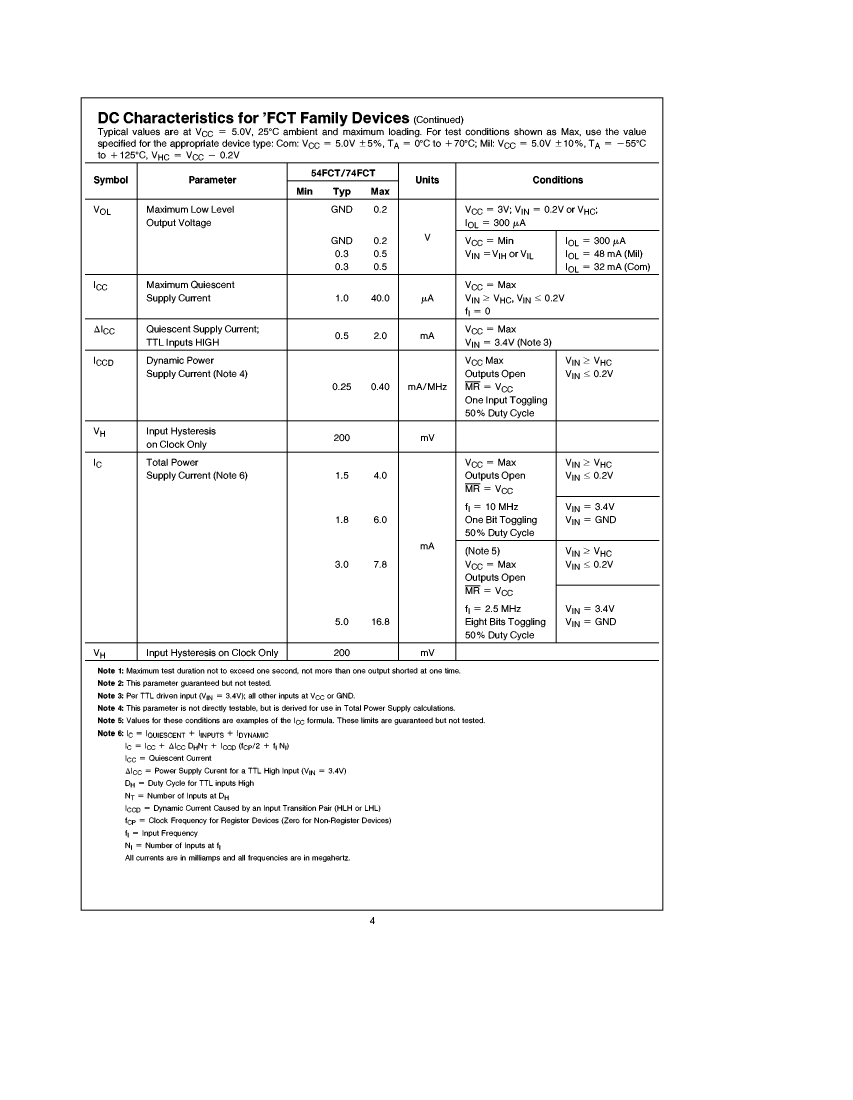

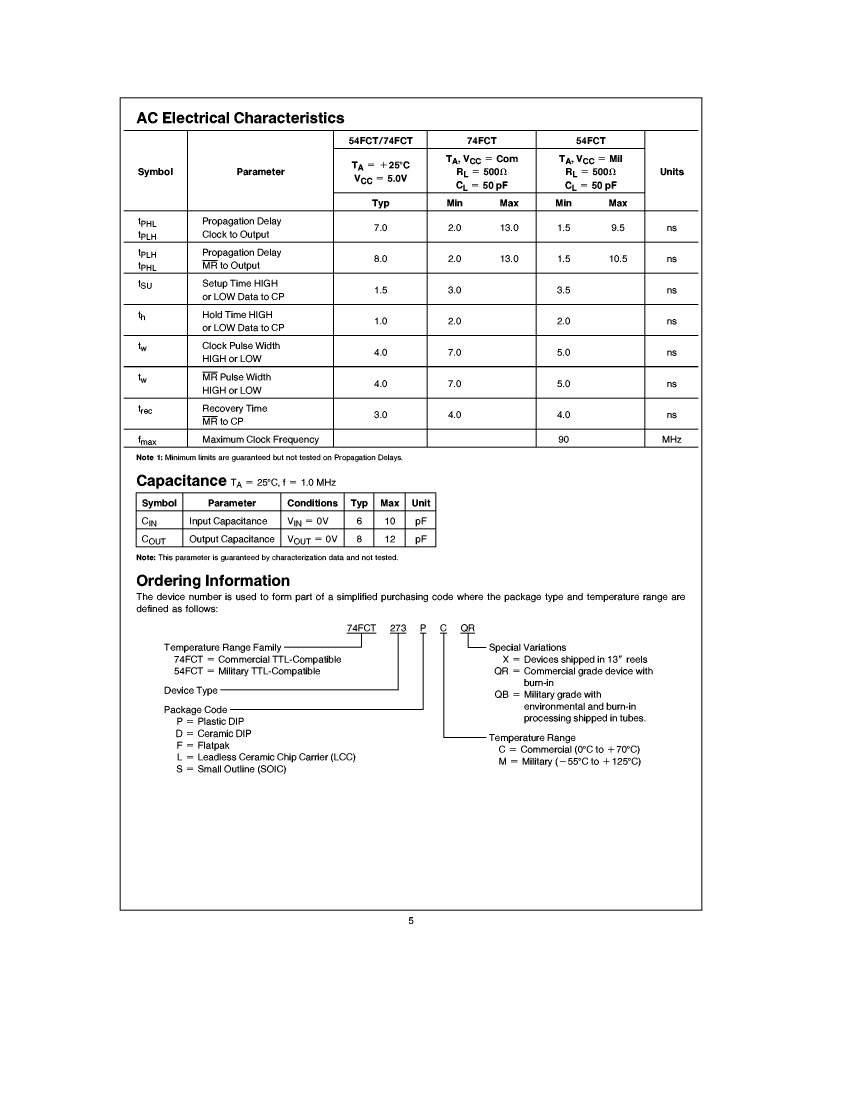

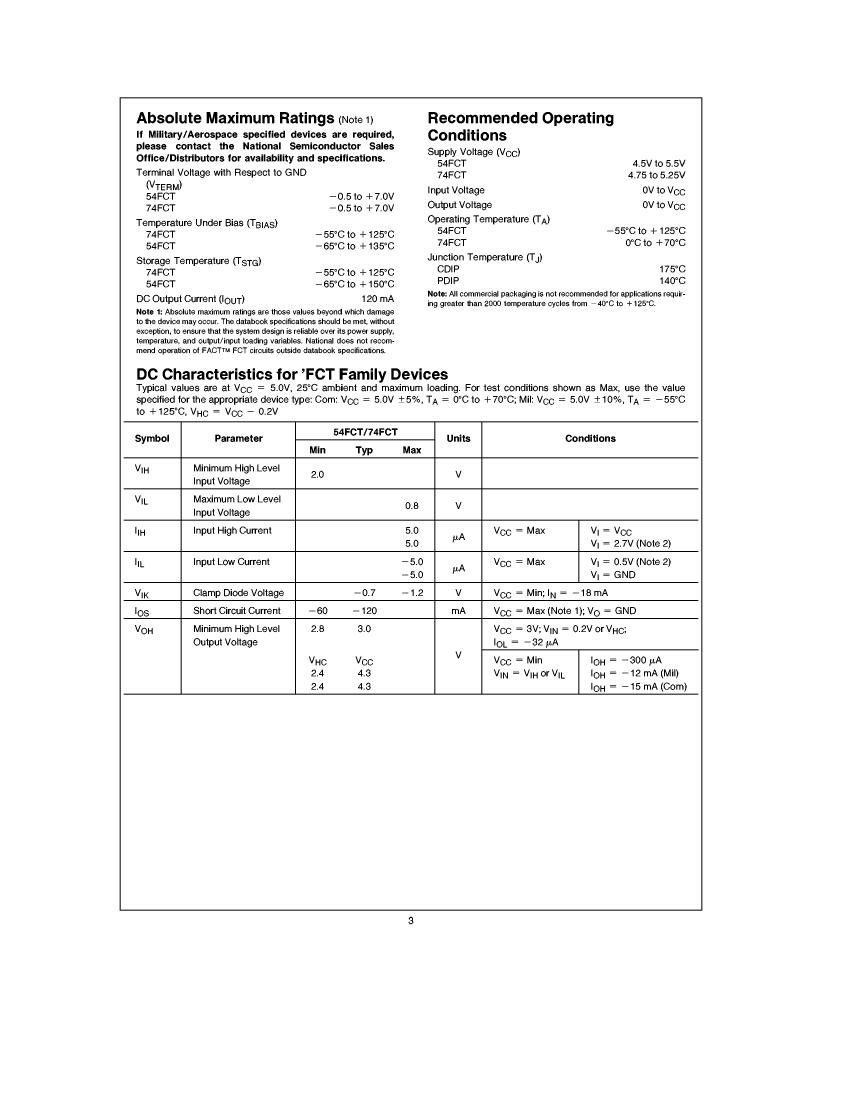

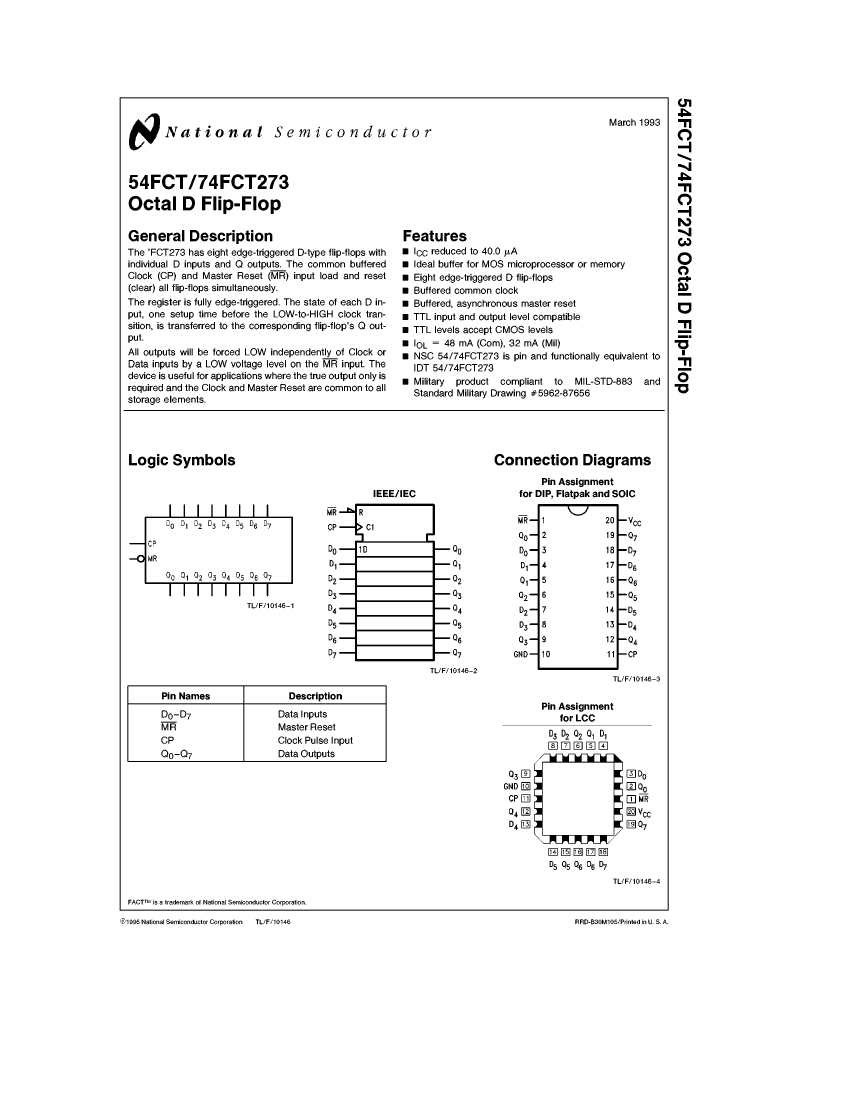

Preview

Download Datasheet

View All

54FCT273LMQB Related Products

	54FCT273LMQB	54FCT273FMQB	54FCT273DMQB	74FCT273PCQR	74FCT273PC	74FCT273SC
Description	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CQCC20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDFP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, CDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDIP20,	D Flip-Flop, 8-Func, Positive Edge Triggered, CMOS, PDSO20,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCN, LCC20,.35SQ	DFP, FL20,.3	DIP, DIP20,.3	DIP, DIP20,.3	DIP, DIP20,.3	SOP, SOP20,.4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	S-XQCC-N20	R-XDFP-F20	R-XDIP-T20	R-PDIP-T20	R-PDIP-T20	R-PDSO-G20
JESD-609 code	e0	e0	e0	e0	e0	e0
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP	D FLIP-FLOP
MaximumI(ol)	0.048 A	0.048 A	0.048 A	0.032 A	0.032 A	0.032 A
Number of functions	8	8	8	8	8	8
Number of terminals	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCN	DFP	DIP	DIP	DIP	SOP
Encapsulate equivalent code	LCC20,.35SQ	FL20,.3	DIP20,.3	DIP20,.3	DIP20,.3	SOP20,.4
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	FLATPACK	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Prop。Delay @ Nom-Sup	9.5 ns	9.5 ns	9.5 ns	13 ns	13 ns	13 ns
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	NO	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	FLAT	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	DUAL	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE	POSITIVE EDGE
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Base Number Matches	1	1	1	1	1	-
