651885BBHB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> 651885BBHB

651885BBHB: DescriptionRocker Switch, SP3T, Momentary, Wire Terminal, Panel Mount; CategoryMechanical and electronic products switch; File Size115KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric View All

651885BBHB Overview

Rocker Switch, SP3T, Momentary, Wire Terminal, Panel Mount

651885BBHB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Carling Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
body width	12.88 mm
body height	5.99 mm
Body length or diameter	20.96 mm
Contact (AC) maximum rated R load	10A@250VAC
Maximum contact current (AC)	10 A
Maximum contact voltage (AC)	250 V
Electrical life	50000 Cycle(s)
Manufacturer's serial number	651
Installation features	PANEL MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	MOMENTARY
switch function	SP3T
Switch type	ROCKER SWITCH
Termination type	WIRE
Base Number Matches	1

Preview

Download Datasheet

View All

Carling

Technologies

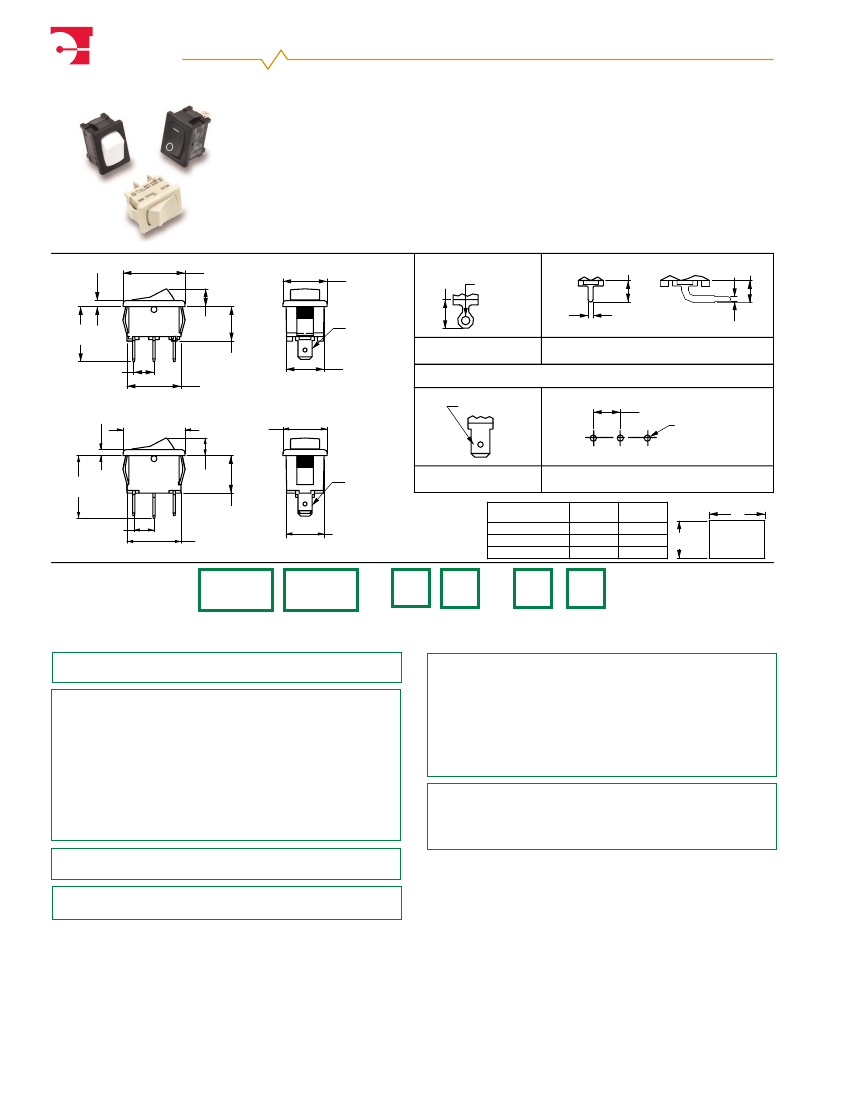

651/652-Series Sub-Miniature Rocker Switches

™

651/652-Series Sub-Miniature Rocker Switches

This sub-miniature switch is ideal for applications with back

panel size constraints. It fits in a standard rectangular cutout &

is designed to provide ease of insertion along with superior

panel retention qualities. A high profile rocker & butt-action

contacts provide the user with a crisp positive-type feel & elec-

trical ratings to 12A 125VAC 10A 250VAC. A variety of ratings,

circuitry & termination choices will appeal to many market seg-

ments including Handheld Appliance, Power Supplies, Audio-

Visual & Telecom.

.080 [2.03]

.825[20.96]

.590[14.99]

.289[7.34]

.085[2.16] DIA

Dielectric Strength

UL/CSA:

1000V-live to dead metal parts

Electrical Life

100,000 cycles- maintained

50,000 cycles- momentary

50,000 cycles- T-rating

Mechanical Life

100,000 cycles

Operating Temperature

32°F to 185°F (0°C to 85°C)

.215

.222[5.63]

.050

.236 [5.99]

.735 [18.67]

.460[11.68]

.270 [6.86]

.720 [18.29]

2 POSITION

.080 [2.03]

.825[20.96]

.590[14.99 ]

.187[4.74] X

.032[.812]

.188 [4.77]

x.032 [.81]

SOLDER LUG

.507 [12.88]

PC TERMINAL

FRONT AND RIGHT ANGLE

.050

TERMINAL TYPE

.270 [6.86] TYP

.062 [1.57] DIA TYP

.236 [5.99]

.835 [21.21]

.188[4.77]

x.032[.81]

.187 TAB (Q.C)

PC TERMINAL

HOLE PATTERN

+.004[.10]

-.000[.00]

+.000[.00]

-.004[.10]

.500[12.70]

.270[6.86]

.720 [18.29]

3 POSITION

.507 [12.88]

PANEL THICKNESS

RECOMMENDED

PANEL

OPENING

.030[.76]-.050[1.27] .508[12.90] .756[19.20]

.050[1.27]-.078[1.98] .508[12.90] .764[19.40]

.078[1.98]-.125[3.17] .508[12.90] .780[19.81]

TEST CUT

HOLE IN

ACTUAL

MATERIAL

651 122

B B

A N

Series

Circuit/Rating/Termination

Actuator

Color

Base Color

Legend

Visi-Rocker End/

Legend Color

1 SERIES

651

Matte Finish

652

Gloss Finish

2 CIRCUITRY/RATING/TERMINATION

10A 250VAC, 10A 125VAC, 1/4 HP, 125-250 VAC

.187

Solder Lugs Tabs

Terms

ON-NONE-OFF

121

122

123

262

263

(ON)-NONE-OFF

261

362

363

ON-NONE-(OFF)

361

ON-NONE-ON

421

422

423

562

563

ON-NONE-(ON)

561

ON-OFF-ON

681

682

683

ON-OFF-(ON)

781

782

783

(ON)-OFF-(ON)

881

882

883

3 ACTUATOR COLOR

black

4 BASE COLOR

black

Rt. Angle

124

264

364

424

564

684

784

884

Wire

Leads

125

265

365

425

565

686

785

885

5 ROCKER LEGEND

molded in

NO LEGEND

OFF-ON vertical

OFF-ON horizontal

–

I-O horizontal

I-O vertical

O on rocker end

–

II-O-I vertical

–

II-O-I horizontal

–

hot stamp

6 VISI-ROCKER END/LEGEND COLOR

n/a

black

visi-red

white

NOTES

Additional ratings (including 14V T) & color options are available; Consult factory.

Rated 12A 125VAC, 6A 250 VAC, 1/4HP 125-250VAC.

Rated 8A 125-250VAC, 1/4HP 125-250VAC.

Additional colors available. Consult factory for details.

Available with Visi-Rocker option only.

( )

Indicates momentary function.

www.carlingtech.com
