3212001051: DescriptionDry Reed Relay, SPDT, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size112KB，2 Pages; ManufacturerStandex

Download Datasheet Parametric View All

3212001051 Overview

Dry Reed Relay, SPDT, Momentary, 0.024A (Coil), 12VDC (Coil), 288mW (Coil), 0.5A (Contact), 175VDC (Contact), DC Input, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

3212001051 Parametric

Parameter Name	Attribute value
Maker	Standex
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
body width	6.4 mm
body height	5.1 mm
Body length or diameter	19.3 mm
Maximum coil current (DC)	0.024 A
Coil operating voltage (DC)	8.4 V
Coil power	288 mW
Coil release voltage (DC)	1.8 V
Coil resistance	550 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated R load	.5A@175VAC
Maximum contact current (AC)	0.5 A
Maximum contact current (DC)	0.5 A
Contact (DC) maximum rated R load	.5A@175VDC
Maximum contact voltage (AC)	175 V
Maximum contact voltage (DC)	175 V
Contact/Output Power Type	AC/DC
JESD-609 code	e3
Manufacturer's serial number	3212001051
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	0.7 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TUBE
physical size	19.3mm x 6.4mm x 5.1mm
Guideline	UL
Relay action	MOMENTARY
Relay function	SPDT
Relay type	DRY REED RELAY
release time	1.5 ms
seal	WATER PROOF
surface mount	NO
Terminal surface	TIN
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

Europe: +49 / 7731 8399 0

USA:

Asia:

+1 / 508 295 0771

+852 / 2955 1682

| Email: info@meder.com

| Email: salesusa@meder.com

| Email: salesasia@meder.com

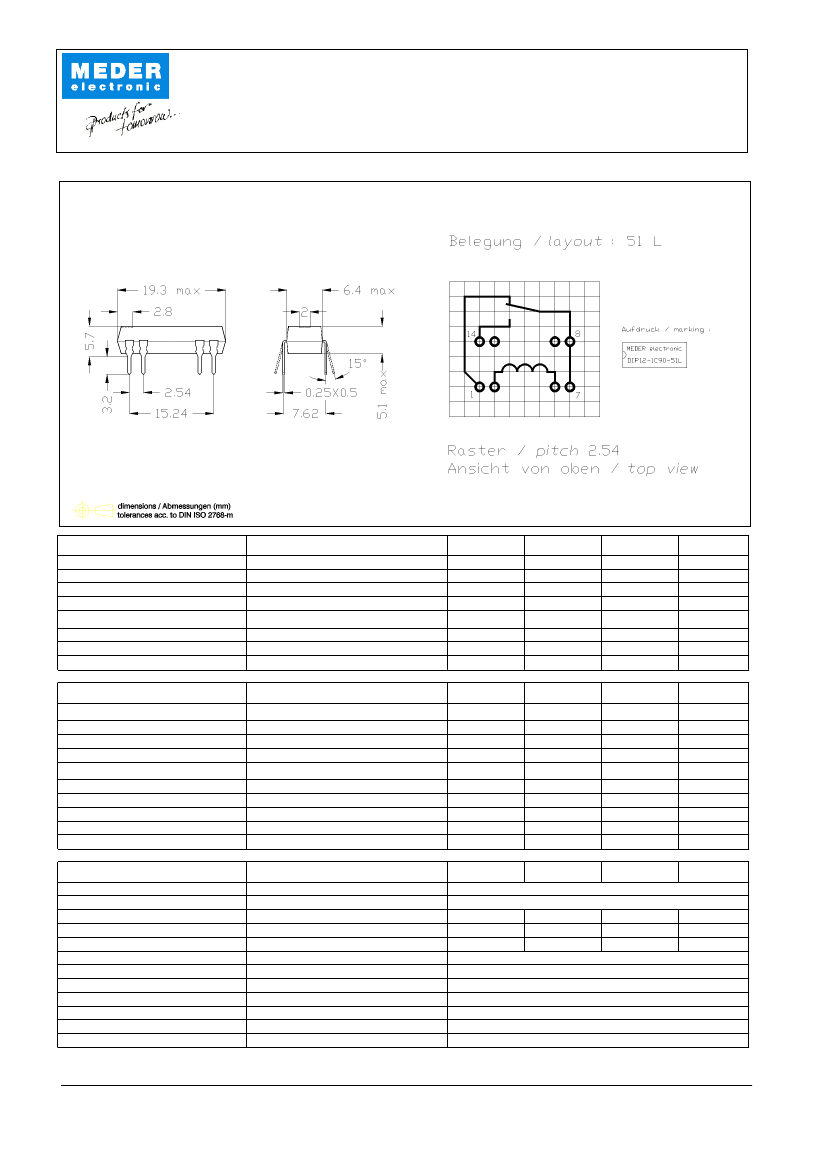

Item No.:

3212001051

Item:

DIP12-1C90-51L

Coil Data at 20 °

C

Coil resistance

Coil voltage

Rated power

Coil current

Thermal resistance

Inductance

Pull-In voltage

Drop-Out voltage

Conditions

Min

Typ

Max

Unit

=

operating temperature + self heating

Contact data 90

Contact rating

Switching voltage

Switching current

Carry current

Contact resistance static

Insulation resistance

Breakdown voltage

Operate time, incl. bounce

Release time

Capacity

Conditions

! "# #! !$ %

not to exceed their individual max.'s

Min

Typ

Max

&

Unit

DC or Peak AC/ with 40% overdrive

DC or Peak AC/with 40% overdrive

DC or Peak AC/ with 40% overdrive

' ( ) *#

Start Value

+ !, ) #,

RH <45 %, 100 V test voltage

according to IEC 255-5

measured with 40% overdrive

measured with no coil excitation

@ 10 kHz across open switch

-

.

&

(

/

Special Product Data

Number of contacts

Contact - form

Dielectric Strength Coil/Contact

Insulation resistance Coil/Contact

Capacity Coil/Contact

Case colour

Housing material

Connection pins

Magnetic Shield

Reach / RoHS conformity

Approval

Conditions

according to IEC 255-5

40° 95% R.H.

C,

@ 10 kHz

Min

Typ

Max

.

-

Unit

1

Form C - Changeover

/

mineral filled epoxy

FeNi-alloy tinned

no

yes

UL File No. NRNT2.E156887

UL File No. NRNT8.E156887

Modifications in the sense of technical progress are reserved

Designed at:

Last Change at:

21.04.04

Designed by:

Last Change by:

SCHELLHORN

Approval at:

21.08.09

Approval by:

KOLBRICH

Version:

V1.0
