Crimp
SZN
CONNECTOR

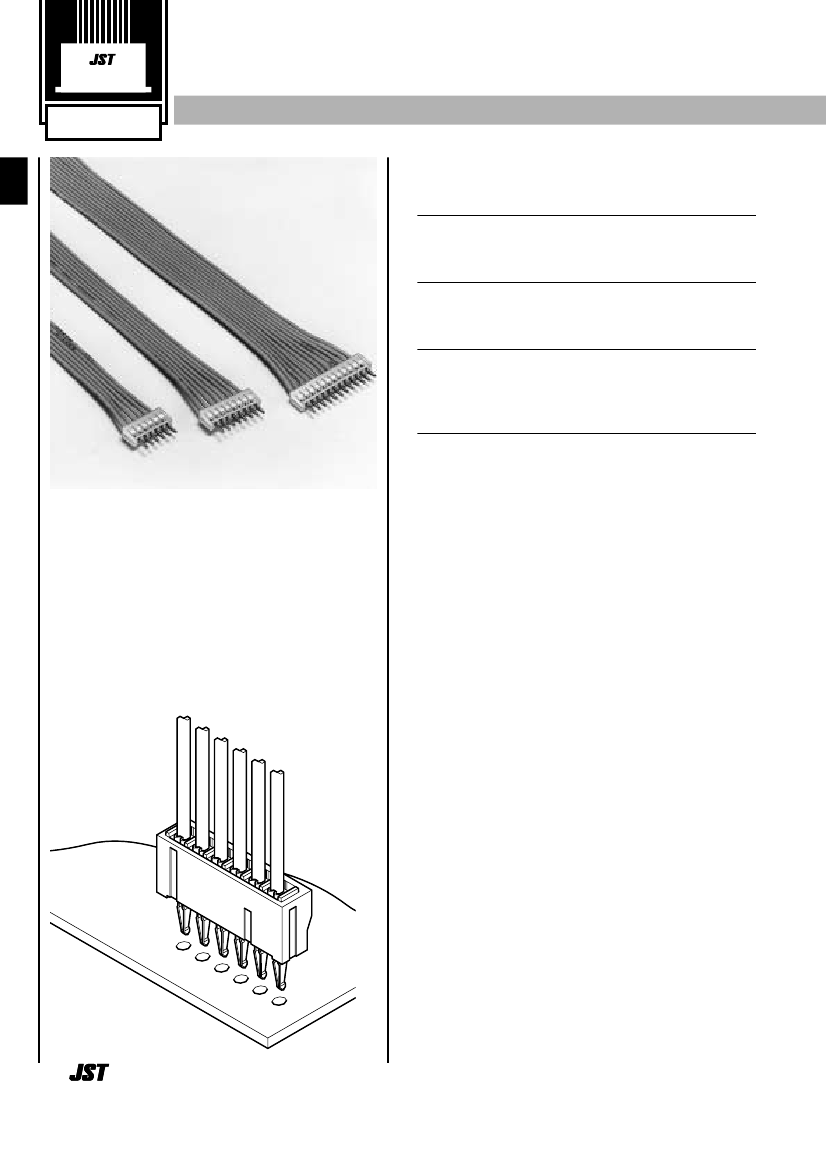

Board-in crimp style connectors
Features ––––––––––––––––––––––––
• Slim, low-profile design
The SZN connector features a mounting height of just 4.25mm
(.167") and a thickness of 2.4mm (.094").
1.5mm
(.059") pitch
• Housing lances
The lances on the resilient housing ensure easy insertion and
secure locking of the contact into the housing.
• Easy mounting onto printed circuit boards
The solder tail of the contact is resilient so as to ensure easy
assembly and provide a secure lock of the connector in the
printed circuit board prior to soldering.
• Rugged contact construction
The spring members of the resilient solder tail are joined
together at the tip to prevent opening or deformation and to
ensure easy handling.
This low-profile, board-in connector, with a
mounting height of only 4.25mm (.167")
and a thickness of 2.4mm (.094"), is
soldered directly onto printed circuit
boards. The solder tail of the contact is
resilient for easy assembly. The housing
lances facilitate insertion of contacts.
Specifications –––––––––––––––––––
• Current rating: 0.7A AC,DC (AWG #28)
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Insulation resistance:
500M Ω min.
• Withstanding voltage: 500V AC/minute
• Applicable wire: AWG #30 to #26
• Applicable PC board thickness: 0.6 to 1.2mm (.024" to .047")
* Contact JST for details.
Standards ––––––––––––––––––––––
200
0
1
Recognized E60389
Certified LR20812
SZN
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
1.2
1.0
1.2
(.047) (.039) (.047)
Applicable wire
mm
2
AWG #
28 to 26
30 to 28
Insulation O.D. mm(in.)
0.8 to 1.1(.031 to 0.43)
0.7 to 0.9(.028 to 0.35)
Q'ty / reel
14,000
15,000
SZN-002T-P0.7K
SZN-003T-P0.7K
0.08 to 0.13
0.05 to 0.08
Material and Finish
Phosphor bronze, tin-plated
0.65
2.2(.087) (.026)
6.8(.268)
0.84
(.033)
0.5
(.020)
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
Model No.
2P-SZN
3P-SZN
4P-SZN
5P-SZN
6P-SZN
7P-SZN
8P-SZN
9P-SZN
10P-SZN
11P-SZN
12P-SZN
13P-SZN
Dimensions mm.(in)
A
1.5(.059)
3.0(.118)
4.5(.177)
6.0(.236)
7.5(.295)
9.0(.354)
10.5(.413)
12.0(.472)
13.5(.531)
15.0(.591)
16.5(.650)
18.0(.709)
Q'ty / bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
B
4.0(.157)
5.5(.217)
7.0(.276)
8.5(.335)
10.0(.394)
11.5(.435)
13.0(.512)
14.5(.571)
16.0(.630)
17.5(.689)
19.0(.748)
20.5(.807)
1.25
(.049)
B
A
1.5(.059)
0.25(.010)
3
4
5
6
2.4(.094)
4.25(.167)
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
1.5±0.03
1.25
(.059±.001) (.049)
min
1.4
(.055)
min
2.4
(.094)
Note:
1. Tolerances are non-cumulative: ±0.05mm (±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method. The dimensions above should serve as a guideline. Contact JST for details.
2.8
(.110)
2 to 6 circuits: 0.7±0.03
(.028±.001)dia.
7 to 12 circuits: 0.75±0.03
(.030±.001)dia.
4.25
(.167)
JST
2.05
(.081)
3
4
5
7
8
9
10
11
12
13
Material
Nylon 66, UL94V-0, natural (white)
