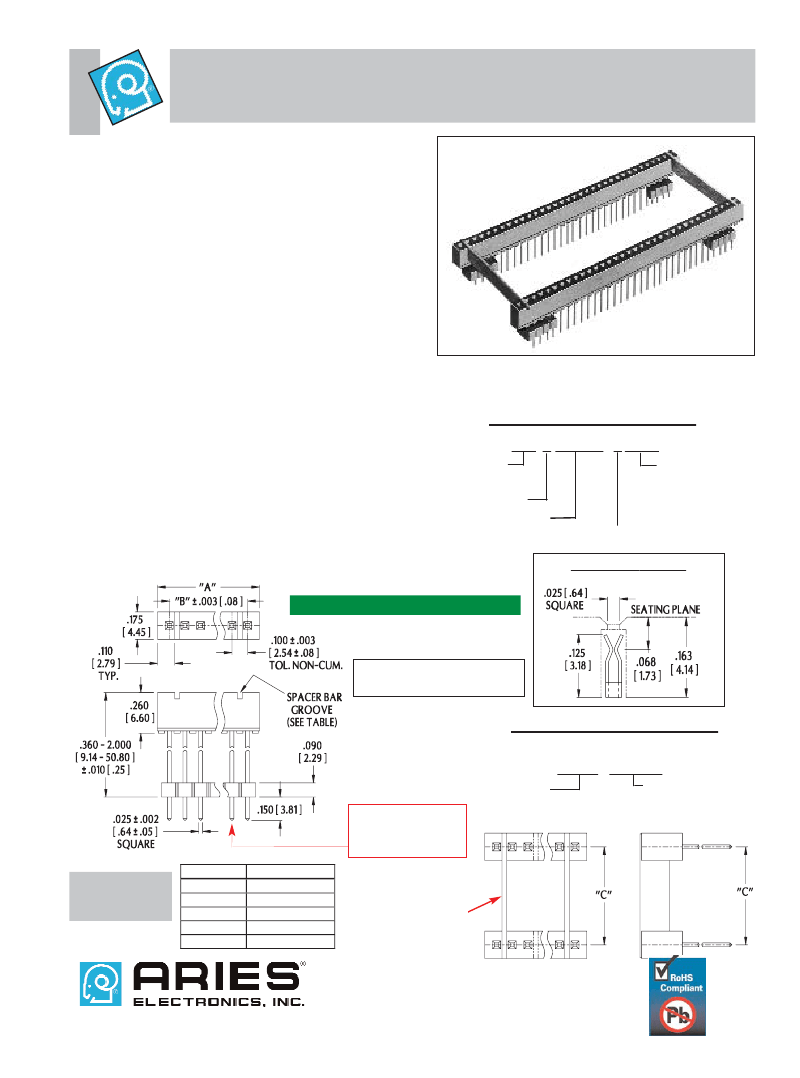

Series 700 Elevator Strip-Line
Sockets with Bifurcated Contacts
FEATURES:
• For elevated mounting of LCDs and other odd-centered or high pin count
components.
• Any height from .360 to 2.000 [9.14 to 50.80].
•Optional spacer available for mounting on .300 [7.62], .600 [15.24], .900
[22.86], 1.100 [27.94], and 1.300 [33.02] centers. Consult factory for other
sizes.
SPECIFICATIONS:
• Body is black UL 94-V0 Glass-filled 4/6 Nylon.
• Pin is Grade A Phosphor Bronze per QQ-B-750.
• Optional spacer is FR-406, .032 [.81] thick.
• Pin plating is
11
= 10μ [.25μm] min. Gold per MIL-G-45204 over 50
μ
[1.27μm] min.
Nickel per SAE-AMS-QQ-N-290.
10
= 200μ” min. Matte Tin per ASTM B545-97 over 50μ” min Nickel per
SAE-AMS-QQ-N-290.
10TL
= 200μ” min. 90/10 Tin/Lead per MIL-T-10727 Type 1 over 50μ” min
Nickel per SAE-AMS-QQ-N-290.
• Current rating=1.5 Amp.
• Operating temperature= -67°F to 221°F [-55°C to 105°C] Tin &
Tin/Lead plating,
= -67°F to 257°F [-55°C to 125°C] Gold.
• Insertion Force=110 grams/pin average; Withdrawal
Force=75 grams/pin average.
• Accepts flat leads up to .014 x .020 wide [.36-.51], round leads up to .020
[.51] in diameter.
• Socket accepts lead lengths from seating plane
.080-.160 [2.03-4.06].
MOUNTING CONSIDERATIONS:
• Suggested PCB hole size=.045 ± .002 [.1.14 ± .05] dia.
Note: Aries specializes in custom design and production. In addition to the
standard products shown on this page, special materials, platings, sizes, and
configurations can be furnished, depending on quantities. Aries reserves the
right to change product specifications without notice.
ORDERING INFORMATION
XX-7XXXX-1XXX
Plating:
No. of pins
0 = Tin
(see table)
0TL = Tin/Lead
Series
1 = Gold
Elevated height:
.360-2.000 [9.14-50.80] Solder tail pin
CONTACT DETAIL
“A”=(NO. OF PINS X .100 [2.54]) + .050 [1.27]
“B”=(NO. OF PINS PER ROW - 1) X .100 [2.54]
A
LL DIMENSIONS
:
INCHES
[
MILLIMETERS
]
All tolerances ± .005 [.13]
unless otherwise specified
ORDERING INFORMATION
(for spacer bar)
0500-X.XXX
Series
PINS MAY BE
SUPPLIED WITH
CUT ENDS
Other sizes
available.
Consult factory.
No. of Pins
20
25
30
34
40
No. of Grooves
2
2
2
3
2
Center-to-center
mounting desired
(“C” dimension)
SPACER
BAR
http://www.arieselec.com • info@arieselec.com
Bristol, PA USA
TEL: (215) 781-9956
FAX: (215) 781-9845
12010
REV. F
