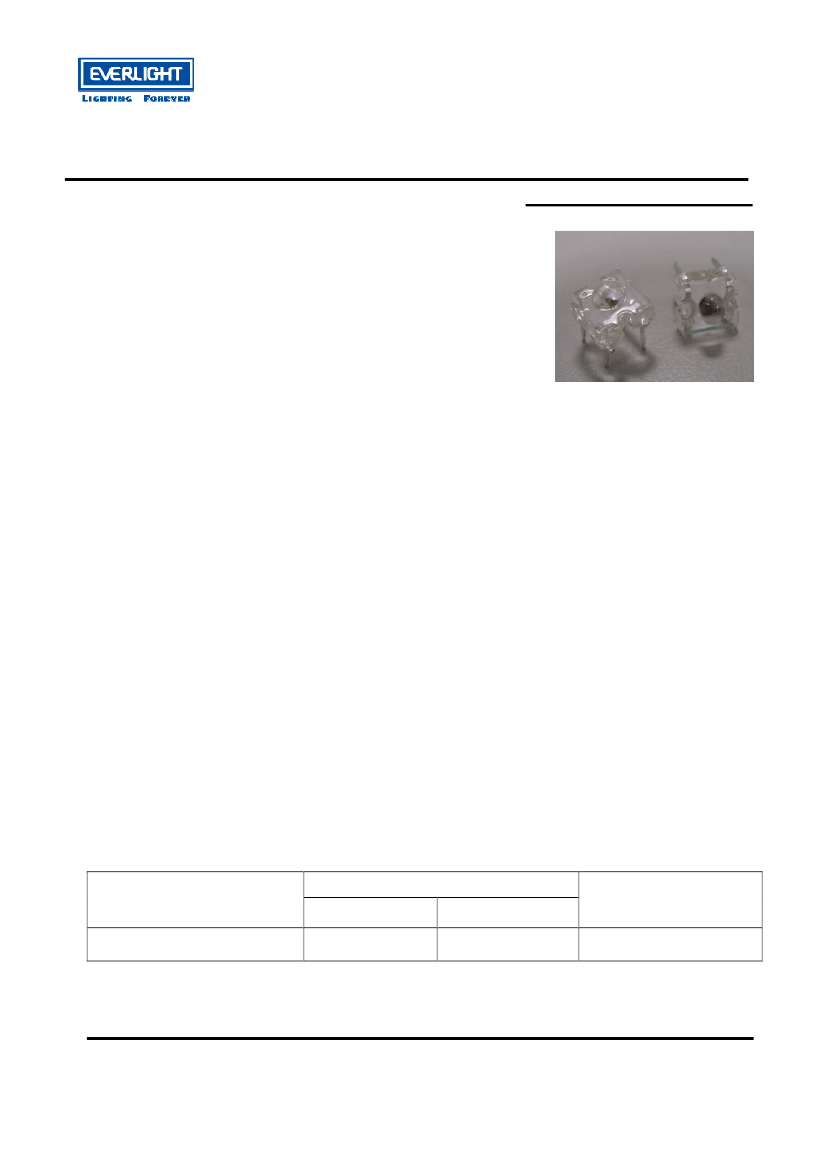

Technical Data Sheet
Oval POWER LED
37-01/A7C-ARTC-AM
Features
. High Flux Output.
. Designed for High Current Operation.
. Low Thermal Resistance Rth(junction to lead):120°C/W
. Packaged in Tubes for Use with Automatic
Insertion Equipment.
.The product itself will remain within RoHS compliant version.
. Viewing angle 38×85degree
Descriptions
This revolutionary package design allows the light designer to reduce the number of LEDs required
and provide a more uniform and unique illuminated appearance than with other LED solutions. This
is possible through the efficient optical package design and high-current capabilities.
The low profile package can be easily coupled with reflectors or lenses to efficiently distribute light
and provide the desired light appearance.
Applications
. Automotive Lighting
. Electronic Signs and Signals
. Special Lighting application
Device Selection Guide
PART NO.
37-01/A7C-ARTC-AM
Chip
Material
AlInGaP
Emitted Color
Reddish Orange
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device number: DPE-0000046
http://www.everlight.com
Established date: 02-18-2009
Rev. 1
Page: 1 of 9
Established by: Ken Lee
Technical Data Sheet
Oval POWER LED
37-01/A7C-ARTC-AM
Package Dimensions
C1 .25
R0 .7 ±0 .2
LE ch ip
D
A A O / C CAT O
N DE
H DE
C
C
7 .62 ±0 .5
C (- )
A
A
A( )
+
3 .9 ×3 .15 ±0 .2
7 .62 ±0 .5
3 .9 ±0 .2
5 .0 TYP
ﾟ
3 .15 ±0 .2
2 .5 ±0 .5
2 .15
4 .4 ±0 .2
0 .75 ±0 .2
0 .4 ±0 .1
5 .08 ±0 .3
2 .54 ±0 .15
5 .08 ±0 .2
0 .5
1 .55 ±0 .2
2 .54 ±0 .1
Notes:
1.All dimensions are in millimeters
2.An epoxy meniscus may extend about 1.5mm(0.059") down the leads
3.Tolerances unless dimensions
±0.25mm
Absolute Maximum Ratings (Ta=25℃)
℃
Parameter
Continuous Forward Current
Peak Forward Current(Duty 1/10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature(T=5 sec)
LED Junction Temperature
Power Dissipation
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
T
j
P
d
ESD
Rating
70
160
5
-40 ~ +100
-40 ~ +100
260
120
220
2K
Units
mA
mA
V
℃
℃
℃
℃
mW
V
Everlight Electronics Co., Ltd.
Device number: DPE-0000046
http://www.everlight.com
Established date: 02-18-2009
7 .5 ±0 .5
：
：
C (- )
A( )
+
Rev. 1
Page: 2 of 9
Established by: Ken Lee
Technical Data Sheet
Oval POWER LED
37-01/A7C-ARTC-AM
Electro-Optical Characteristics (Ta=25℃)
℃
Parameter
Total Flux
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
Symbol
Φv
2θ1/2
λp
λd
△
λ
V
F
IR
Min.
4500
----
----
611
----
1.9
----
Typ.
----
38×85
621
616
1.8
2.4
----
Max.
9000
----
----
620
----
3.1
10
Condition
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
I
F
=70mA
VR=5V
Unit
mlm
deg
nm
nm
nm
V
µA
Rank
37-01/A7C-ARTC-AM
(1)
V
F
(V)
Bin
2
3
4
5
6
7
Min
1.9
2.1
2.3
2.5
2.7
2.9
Max
2.1
2.3
2.5
2.7
2.9
3.1
(1)
(2)
λd(nm)
Bin
7
8
9
Min
611
614
617
(2)
(3)
Φv(mlm)
Max
614
617
620
Bin
R
S
T
Min
4500
5650
7150
(3)
Max
5650
7150
9000
*Measurement Uncertainty of Forward Voltage：±0.1V
*Measurement Uncertainty of Total Flux：±11%
*
Measurement Uncertainty of
Dominant Wavelength：
1.0nm
Everlight Electronics Co., Ltd.
Device number: DPE-0000046
http://www.everlight.com
Established date: 02-18-2009
±
Rev. 1
Page: 3 of 9
Established by: Ken Lee
Technical Data Sheet
Oval POWER LED
37-01/A7C-ARTC-AM

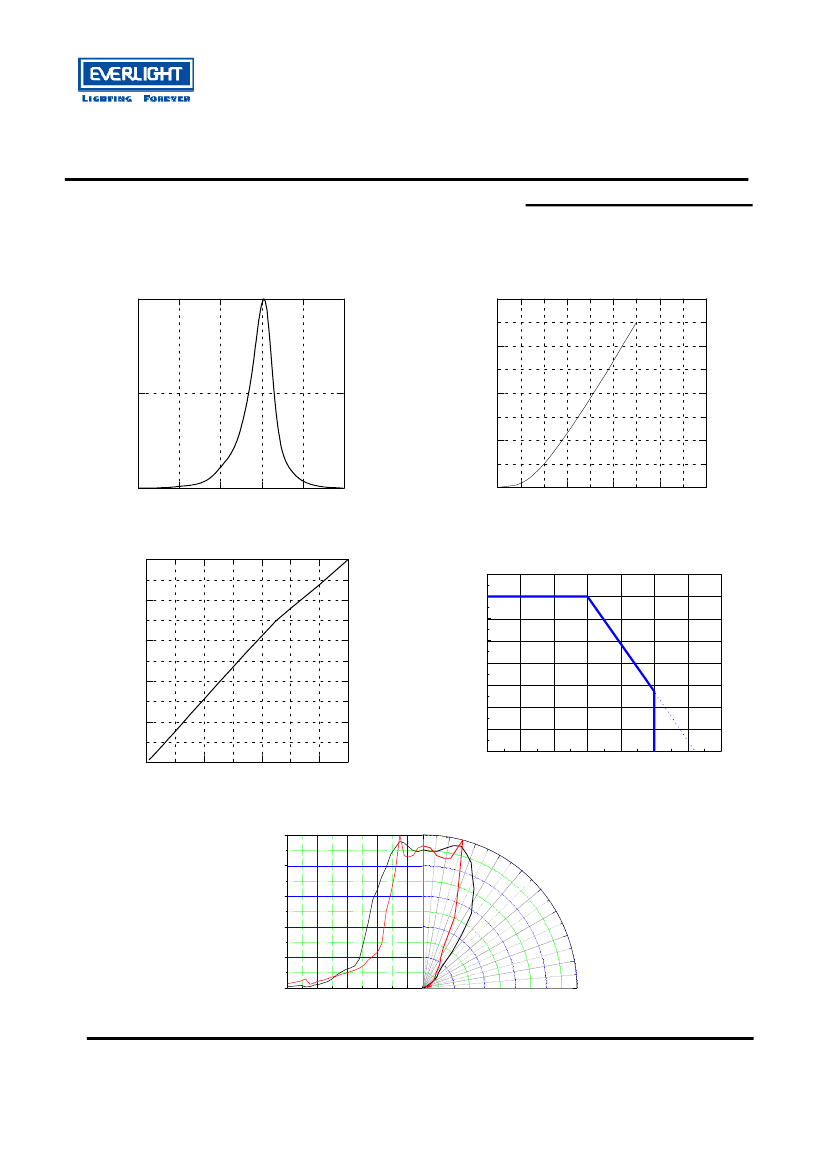

Typical Electro-Optical Characteristics Curves
Relative Intensity vs. Wavelength
1.00
Forward Current vs. Forward Voltage
80
FORWARD CURRENT (mA)
580
600
620
640
WAVELENGTH (nm)
660
RELATIVE INTENSITY
60
0.50
40
20
0.00
560
0
1.40 1.60 1.80 2.00 2.20 2.40 2.60 2.80 3.00 3.20
FORWARD VOLTAGE (V)
Relative Intensity vs. Forward Current
1.00
0.80
Forward Current vs. Ambient Temp.
80
70
MAXMUM DC CURRENT(mA)
RELATIVE INTENSITY
60
50
40
30
20
10
0
0
20
40
60
80 100 120 140
AMBIENT TEMPERATURE (C)
0.60
0.40
0.20
0.00
0
10
20
30
40
50
60
FORWARD CURRENT (mA)
70
Relative Intensity vs. Angle Displacement
0
1.0
0
10
0
20
0
Relative Intensity (a.u.)
30
0.8
0.6
0
40
0
50
0
60
0.4
0.2
0.0
0
0
0
0
-90 -70
-30 -10
0
-50
Viewing angle (degree)
0
70
0
80
0
90
0
Everlight Electronics Co., Ltd.
Device number: DPE-0000046
http://www.everlight.com
Established date: 02-18-2009
Rev. 1
Page: 4 of 9
Established by: Ken Lee
Technical Data Sheet
Oval POWER LED
37-01/A7C-ARTC-AM
Packing Specification
1. Tube
Cross section image of tube
Unit: mm
Whole image of tube
Tube Label
ANTISTATIC
485 2mm
2. Inner Box
Everlight Electronics Co., Ltd.
Device number: DPE-0000046
±
Box Label
http://www.everlight.com
Established date: 02-18-2009
Rev. 1
Page: 5 of 9
Established by: Ken Lee
