M80-5421042P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> M80-5421042P

M80-5421042P: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size620KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-5421042P Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Right Angle, Surface Mount Terminal, LEAD FREE

M80-5421042P Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Harwin
package instruction	LEAD FREE
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	M80-5
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	10
Base Number Matches	1

Preview

Download Datasheet

View All

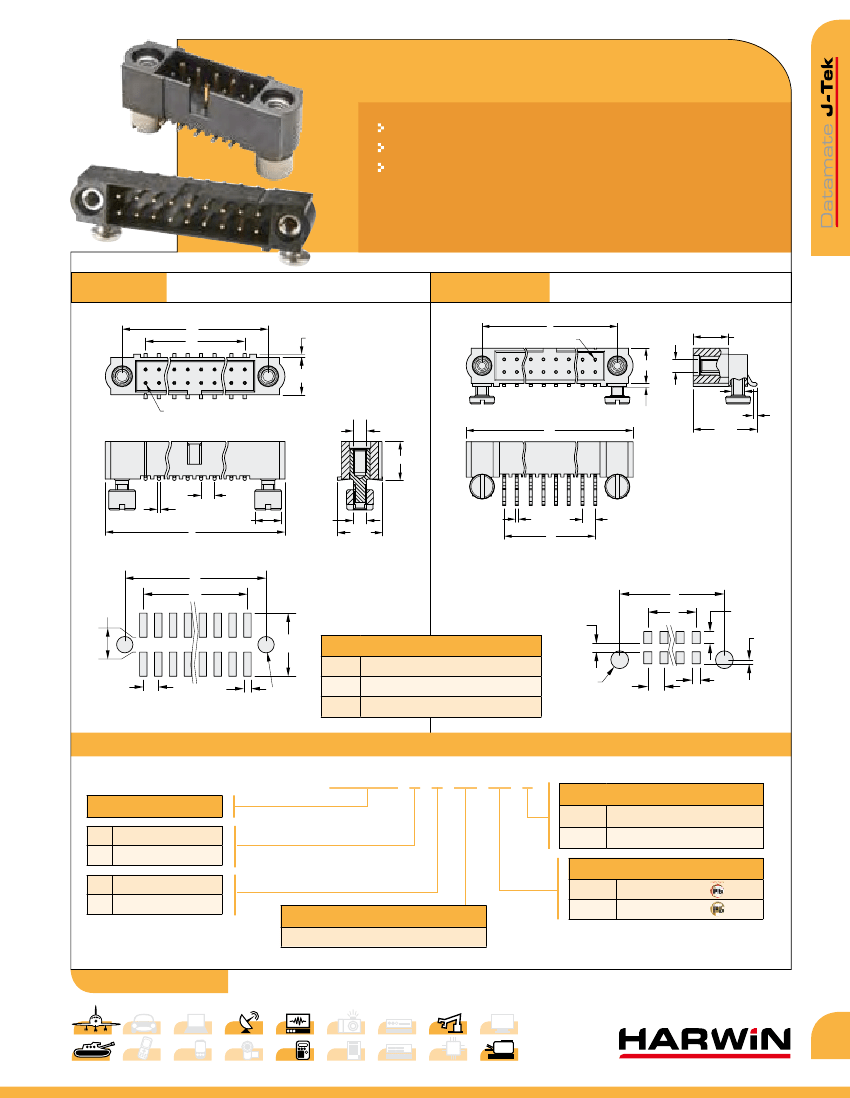

Datamate Connectors

Male Board Mount, Surface Mount

3.5mm jackscrew suitable for board thickness up to 1.6mm.

5mm jackscrew suitable for board thickness up to 3.2mm.

Mates with female connectors shown on pages 28, 30, 31, 33 and 34.

VERTICAL

0.50

5.55

CONTACT No. 1

5.8

2.00

HORIZONTAL

CONTACT No. 1

5.55

0.50

0.65

10.1

5.60

0.49

4.00

0.47

6.75

2.00

1.00

8.50

1.50

0.50

CALCULATON

B + 12

Total No. of contacts – 2

B+7

2.00

1.00

2.20

2.00

1.00

Recommended PC Board Pattern

HOW TO ORDER

M0 – 5 x x xx xx P

SERES CODE

Vertical

Horizontal

3.5mm Jackscrew

5mm Jackscrew

PCK AND PLACE CAP

BLANK

No cap

Pick and place cap (M80-51x)

FNSH

Gold + Tin/Lead

Gold + Tin

TOTAL NO. OF CONTACTS

06, 10, 12, 14, 1, 20, 26, 34, 42, 50

www.harwin.com

All dimensions in mm.
