DV74LS00D datasheet, PDF - EEWORLD Datasheet

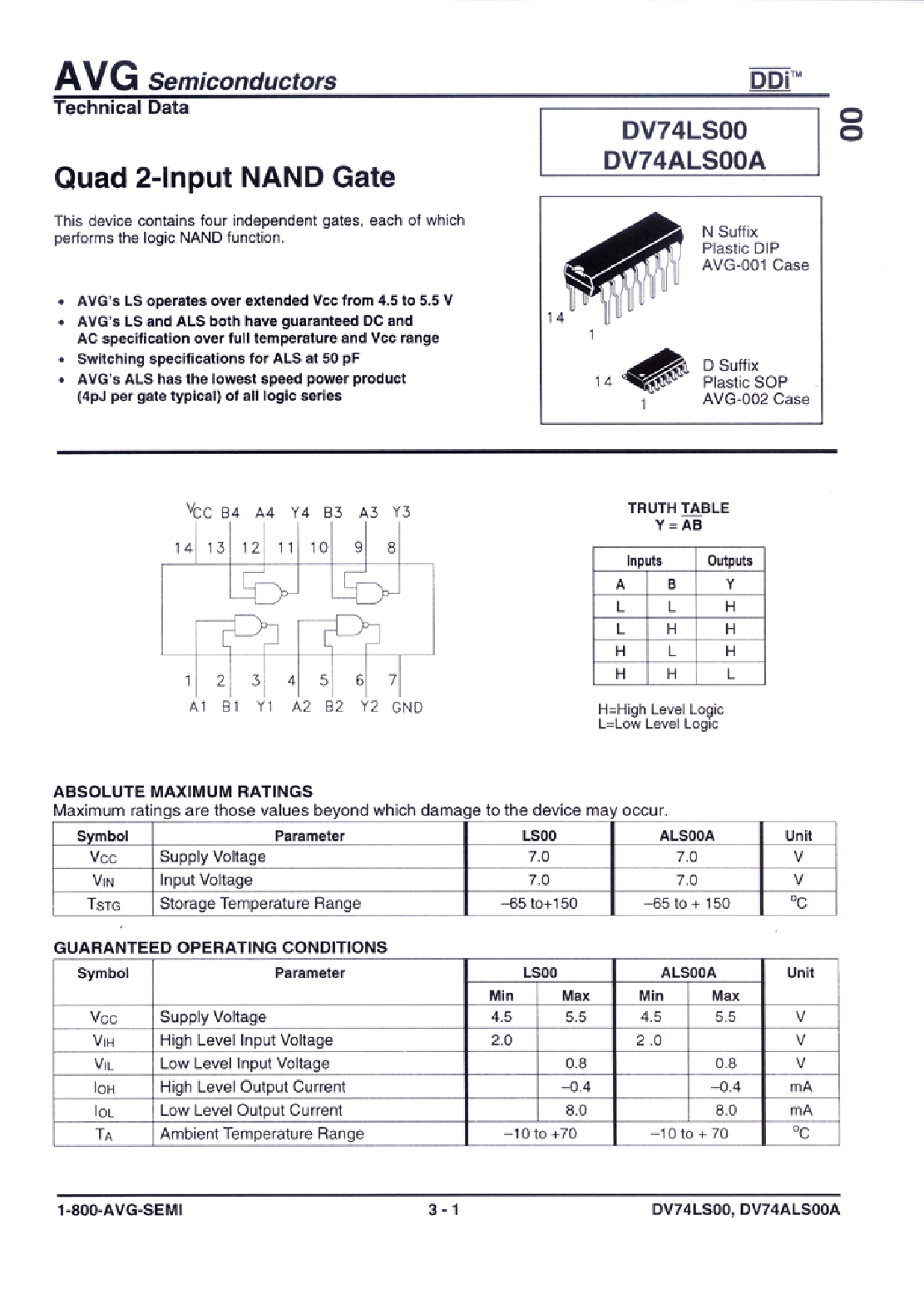

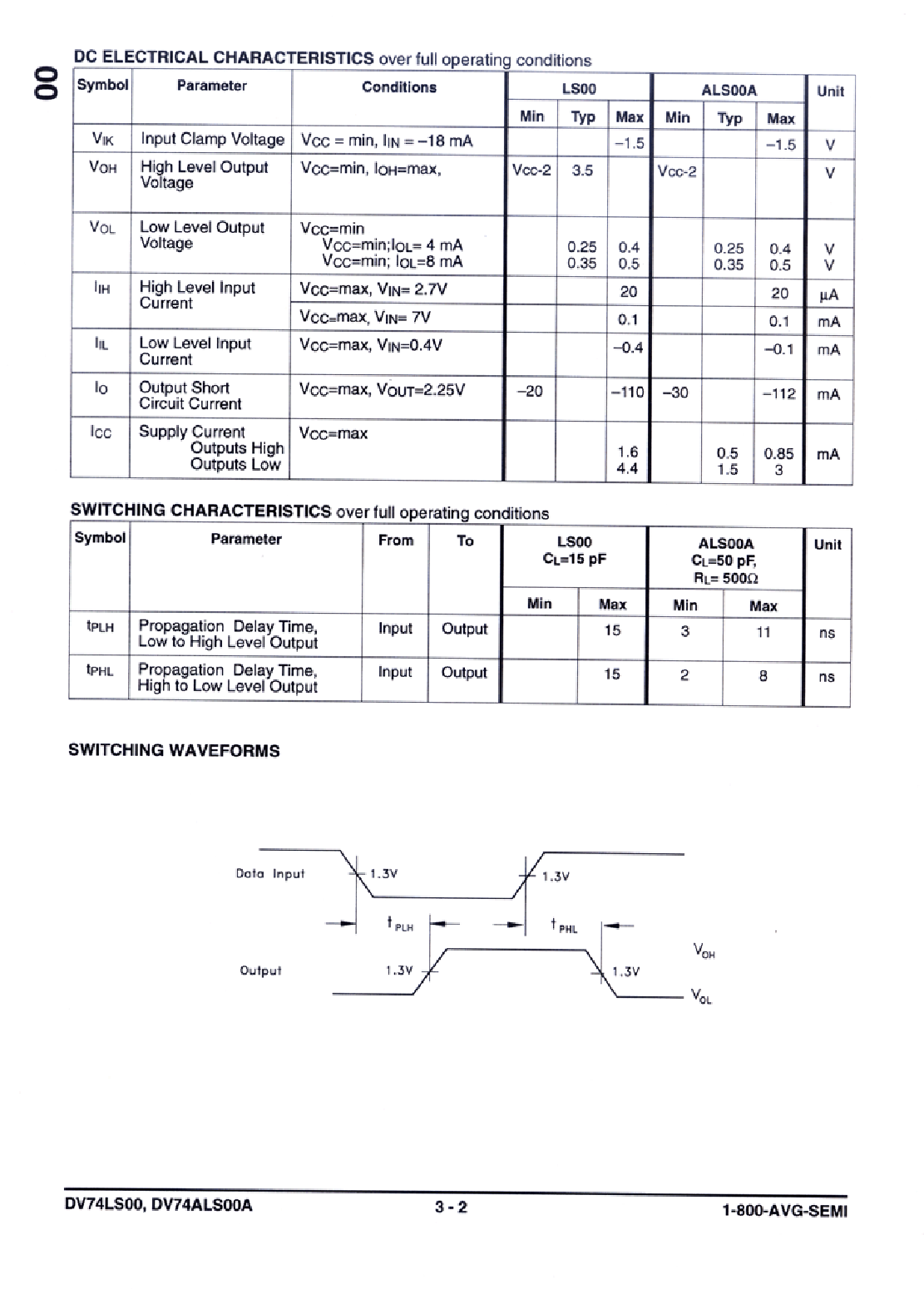

DV74LS00D: DescriptionNAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14; Categorylogic logic; File Size254KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS00D Overview

NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP, SOP14(UNSPEC)
Contacts	14
Reach Compliance Code	unknown
series	LS
JESD-30 code	R-PDSO-G14
length	8.65 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	NAND GATE
MaximumI(ol)	0.008 A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14(UNSPEC)
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Maximum supply current (ICC)	4.4 mA
Prop。Delay @ Nom-Sup	15 ns
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

	DV74LS00D	DV74ALS00AD
Description	NAND Gate, LS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14	NAND Gate, ALS Series, 4-Func, 2-Input, TTL, PDSO14, PLASTIC, SOP-14
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	SOIC
package instruction	SOP, SOP14(UNSPEC)	SOP, SOP14(UNSPEC)
Contacts	14	14
Reach Compliance Code	unknown	unknown
series	LS	ALS
JESD-30 code	R-PDSO-G14	R-PDSO-G14
length	8.65 mm	8.65 mm
Load capacitance (CL)	15 pF	50 pF
Logic integrated circuit type	NAND GATE	NAND GATE
MaximumI(ol)	0.008 A	0.008 A
Number of functions	4	4
Number of entries	2	2
Number of terminals	14	14
Maximum operating temperature	70 °C	70 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14(UNSPEC)	SOP14(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Maximum supply current (ICC)	4.4 mA	3 mA
Prop。Delay @ Nom-Sup	15 ns	11 ns
propagation delay (tpd)	15 ns	11 ns
Certification status	Not Qualified	Not Qualified
Schmitt trigger	NO	NO
Maximum seat height	1.75 mm	1.75 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
width	3.9 mm	3.9 mm
Base Number Matches	1	1
