BAR99

Description
Rectifier Diode, 1 Element, 0.25A, 70V V(RRM), Silicon, SOT-23, 3 PIN
CategoryDiscrete semiconductor    diode
File Size97KB,4 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric View All

BAR99 Overview

Rectifier Diode, 1 Element, 0.25A, 70V V(RRM), Silicon, SOT-23, 3 PIN

BAR99 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Parts packaging codeSOT-23
package instructionSOT-23, 3 PIN
Contacts3
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.3 V
JESD-30 codeR-PDSO-G3
JESD-609 codee0
Number of components1
Number of terminals3
Maximum operating temperature175 °C
Maximum output current0.25 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation0.37 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage70 V
Maximum reverse recovery time0.006 µs
surface mountYES
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1
Silicon Switching Diode
q
For high-speed switching
BAR 99
Type
BAR 99
Marking
JGs
Ordering Code
(tape and reel)
Q62702-A388
Pin Configuration
Package
1)
SOT-23
Maximum Ratings
Parameter
Reverse voltage
Peak reverse voltage
Forward current
Surge forward current,
t
= 1
µ
s
Total power dissipation,
T
S
= 54 ˚C
Junction temperature
Storage temperature range
Thermal Resistance
Junction - ambient
2)
Junction - soldering point
R
th JA
R
th JS
330
260
Symbol
V
R
V
RM
I
F
I
FS
P
tot
T
j
T
stg
Values
70
70
250
4.5
370
150
– 65 … + 150
Unit
V
mA
A
mW
˚C
K/W
1)
2)
For detailed information see chapter Package Outlines.
Package mounted on epoxy pcb 40 mm
×
40 mm
×
1.5 mm/6 cm
2
Cu.
Semiconductor Group
1

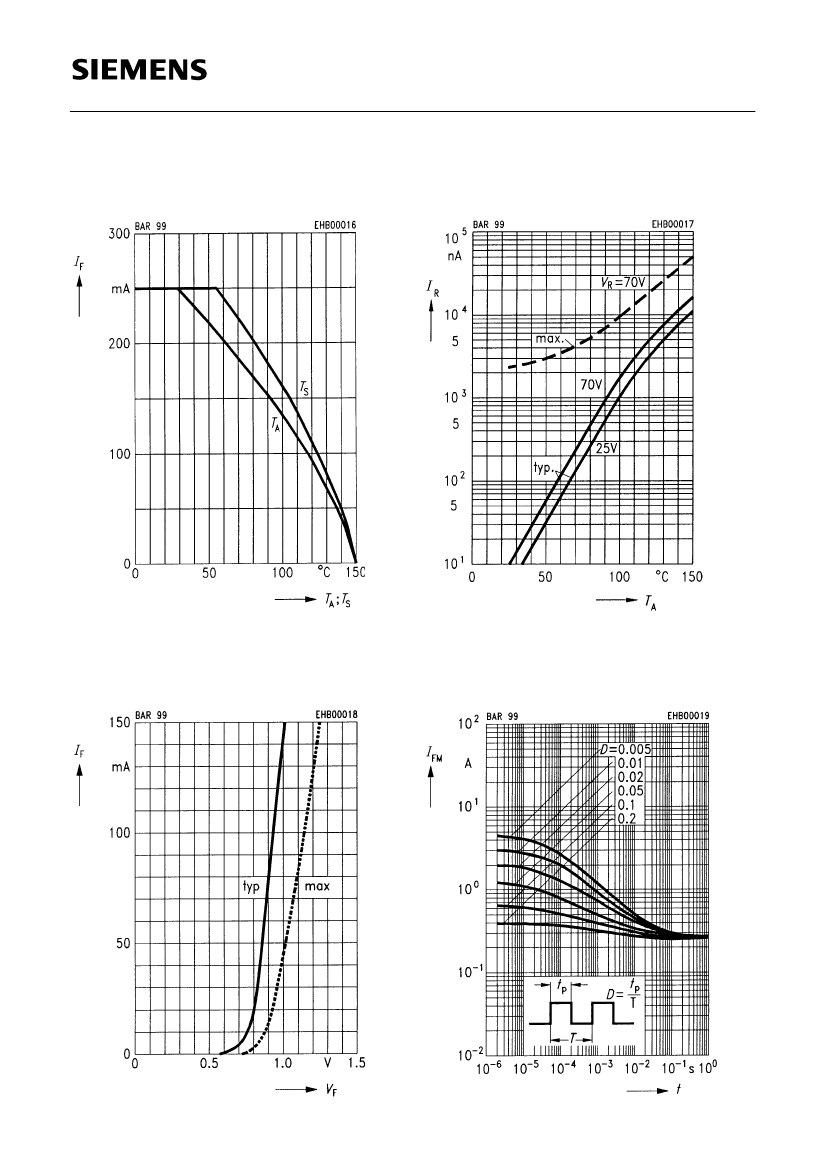

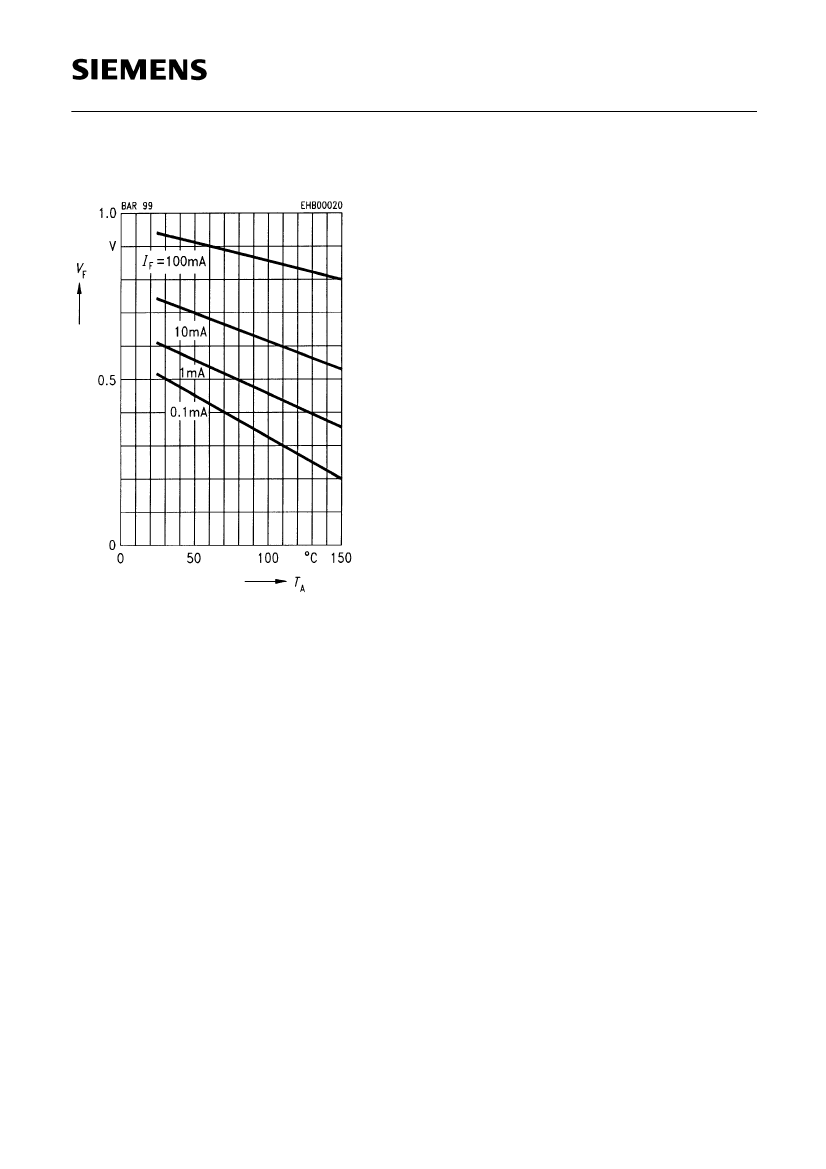

5.91
